Land Rover Defender: Lower Control Arm - Vehicles With: Air Suspension

Land Rover Defender 2020-2024 Service Manual / Chassis / Suspension / Rear Suspension / Lower Control Arm - Vehicles With: Air Suspension

REMOVAL AND INSTALLATION

PART(S)

Lower Control Arm - Vehicles With: Air Suspension

REMOVAL

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTES:

1. Raise and support the vehicle on a suitable 2-post lift.

2.

CAUTION: This step must be completed in order to maintain the correct air suspension compressor/dryer performance.

Use the Jaguar Land Rover (JLR) approved diagnostic system, to pressurize the rear left air spring.

3. Remove the rear left wheel tire and assembly.

4.

Lower Control Arm - Vehicles With: Air Suspension

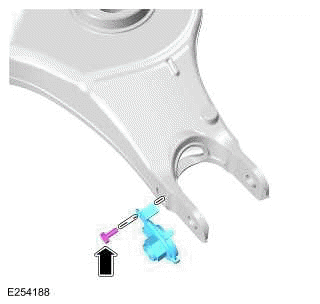

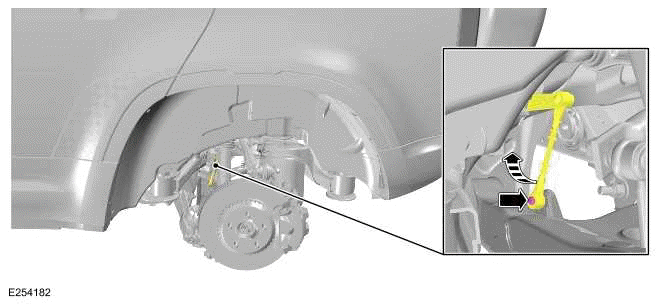

Release the height sensor from the lower control arm.

5.

Lower Control Arm - Vehicles With: Air Suspension

6.

Lower Control Arm - Vehicles With: Air Suspension

7.

Lower Control Arm - Vehicles With: Air Suspension

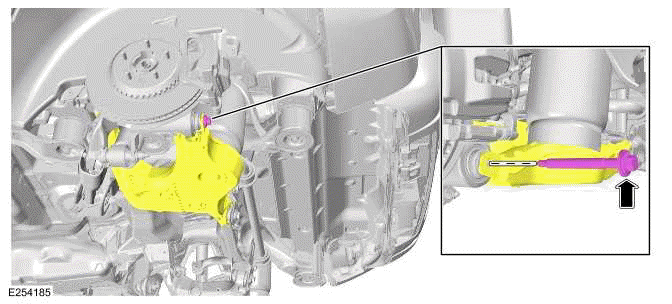

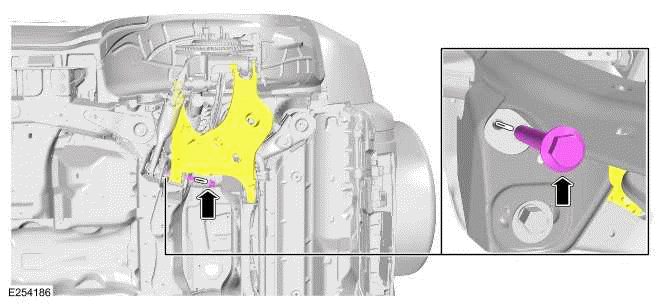

Remove and discard the bolt.

8.

Lower Control Arm - Vehicles With: Air Suspension

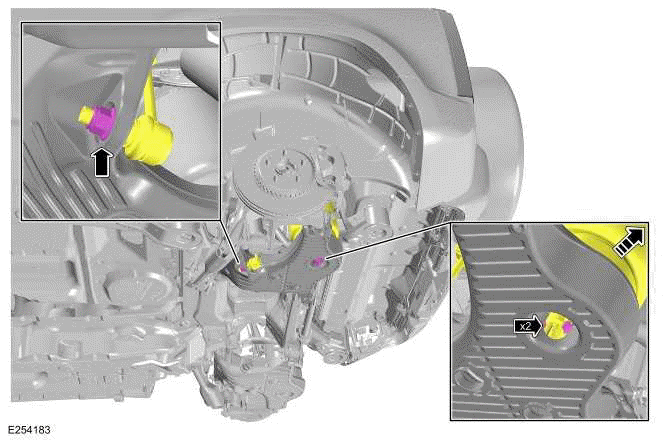

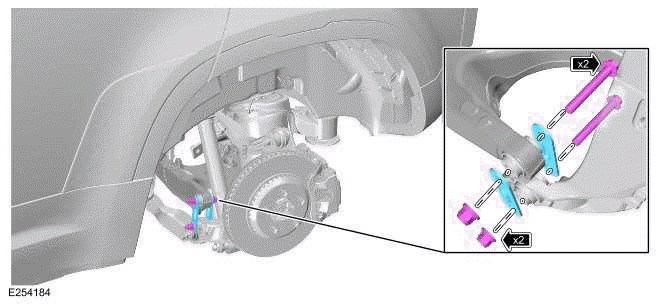

Remove and discard the nut and bolt.

9.

Lower Control Arm - Vehicles With: Air Suspension

10.

Lower Control Arm - Vehicles With: Air Suspension

INSTALLATION

1.

Lower Control Arm - Vehicles With: Air Suspension

2.

3.

Lower Control Arm - Vehicles With: Air Suspension

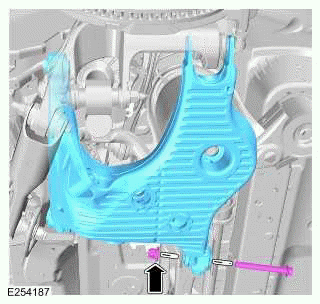

Install and tighten the bolt.

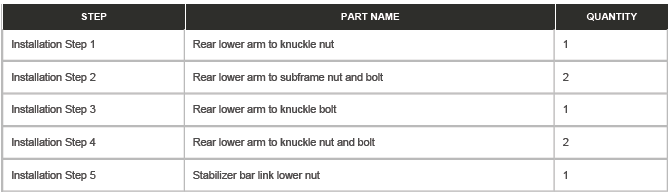

Renew Part: Rear lower arm to knuckle bolt Quantity: 1.

Torque

4.

Lower Control Arm - Vehicles With: Air Suspension

5.

6.

CAUTION: This step must be completed in order to maintain the correct air suspension compressor/dryer performance.

Use the JLR approved diagnostic system, to pressurize the air suspension.

7. Use the JLR approved diagnostic system, to calibrate the suspension ride height.
