Land Rover Defender: Lower Control Arm - Vehicles With: Coil Suspension

Land Rover Defender 2020-2024 Service Manual / Chassis / Suspension / Rear Suspension / Lower Control Arm - Vehicles With: Coil Suspension

REMOVAL AND INSTALLATION

GENERAL EQUIPMENT

Lower Control Arm - Vehicles With: Coil Suspension

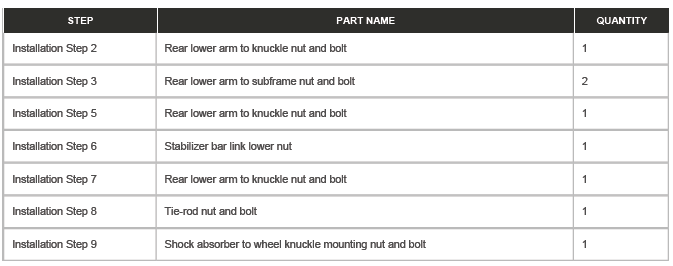

PART(S)

Lower Control Arm - Vehicles With: Coil Suspension

REMOVAL

NOTE:

1. Raise and support the vehicle on a suitable 2-post lift.

2. Remove the rear wheel tire and assembly.

3.

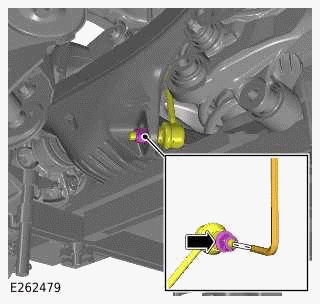

Lower Control Arm - Vehicles With: Coil Suspension

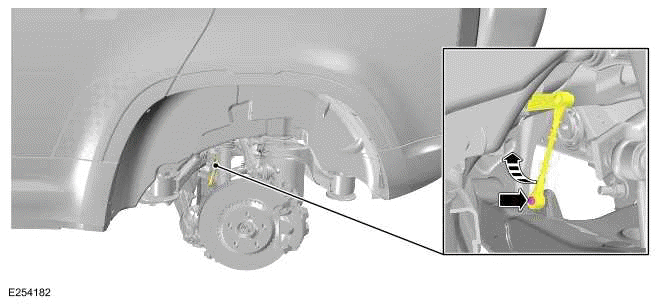

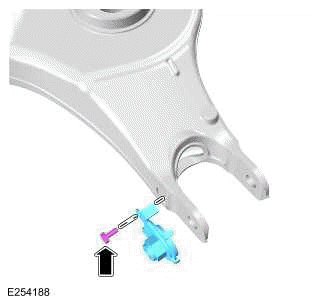

Release the height sensor from the rear lower control arm.

4.

Lower Control Arm - Vehicles With: Coil Suspension

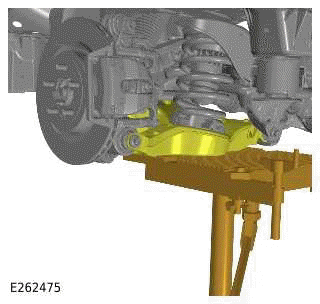

Use a suitable stand to support the lower control arm.

General Equipment: Transmission jack

5.

Lower Control Arm - Vehicles With: Coil Suspension

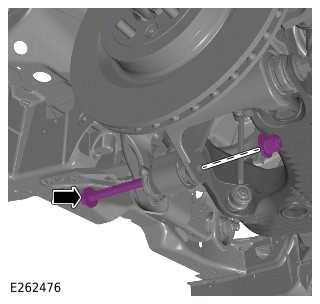

Remove and discard the shock absorber to wheel knuckle nut and bolt.

6.

Lower Control Arm - Vehicles With: Coil Suspension

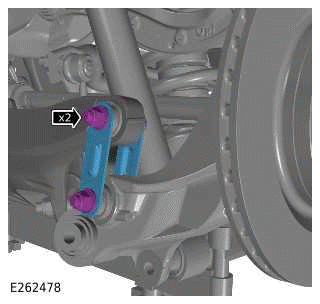

Remove and discard the 2 integral link nuts and bolts.

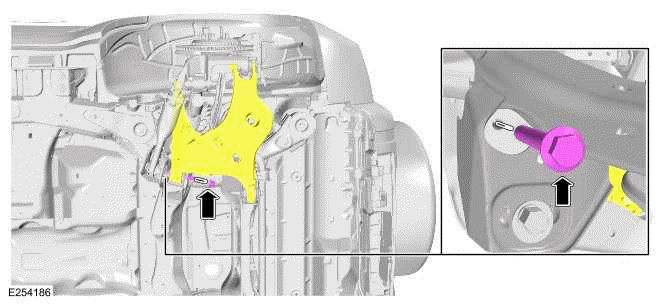

7.

Lower Control Arm - Vehicles With: Coil Suspension

8.

Lower Control Arm - Vehicles With: Coil Suspension

9.

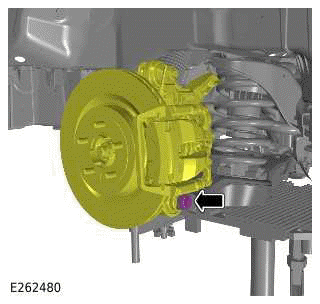

CAUTION: Make sure that during the release of the wheel knuckle assembly, the halfshaft is not released from the differential.

Lower Control Arm - Vehicles With: Coil Suspension

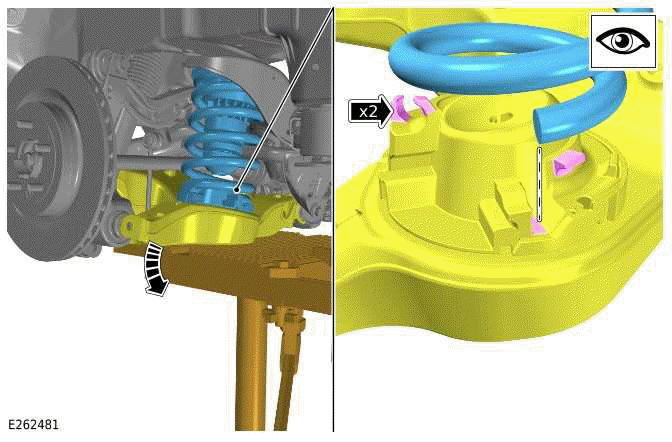

10.

NOTE: Note the orientation of the component prior to removal.

Lower Control Arm - Vehicles With: Coil Suspension

11.

Lower Control Arm - Vehicles With: Coil Suspension

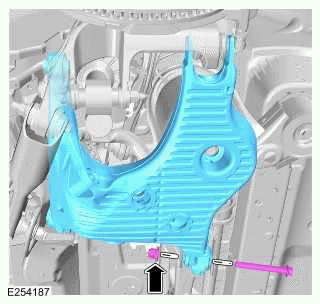

Remove and discard the nut and bolt.

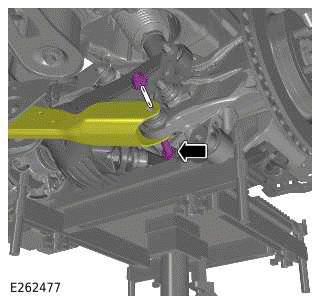

12.

Lower Control Arm - Vehicles With: Coil Suspension

13.

Lower Control Arm - Vehicles With: Coil Suspension

14.

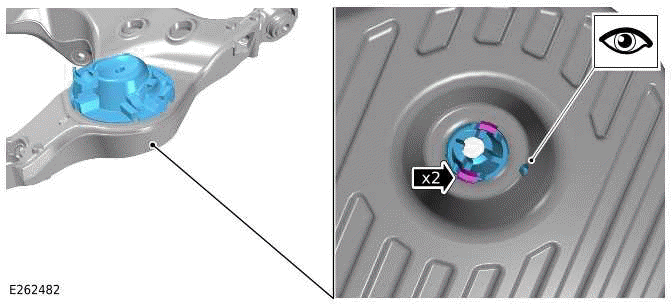

NOTE: Note the orientation of the component.

Lower Control Arm - Vehicles With: Coil Suspension

INSTALLATION

1.

2.

Lower Control Arm - Vehicles With: Coil Suspension

3. Install the 2 lower control arm to subframe bolts and nuts.

Renew Part: Rear lower arm to subframe nut and bolt Quantity: 2.

Torque

4.

5.

CAUTION: Only tighten the nuts and bolts when the suspension is at the normal ride height. Failure to follow this instruction may result in damage to the vehicle.

6.

CAUTION: Only tighten the nuts and bolts when the suspension is at the normal ride height. Failure to follow this instruction may result in damage to the vehicle.

7. Install 2 new integral link bolts and nuts.

Renew Part: Rear lower arm to knuckle nut and bolt Quantity: 1.

Torque

8. Install the tie-rod to the wheel knuckle assembly.

Renew Part: Tie-rod nut and bolt Quantity: 1.

Torque

9. Install the shock absorber new nut and bolt to wheel knuckle.

Renew Part: Shock absorber to wheel knuckle mounting nut and bolt Quantity: 1.

Torque: 170Nm

10. Install the height sensor link.

11. Install the rear wheel and tire.

12. Use approved Jaguar Land Rover (JLR) wheel alignment equipment to inspect the wheel alignment and adjust if required.
