Land Rover Defender: Rear Stabilizer Bar Link
REMOVAL AND INSTALLATION
PART(S)
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains illustrations for left side components, right
side components are similar.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Remove the rear wheel.

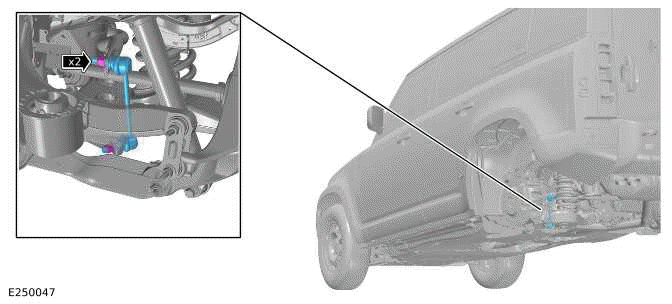

3.
CAUTION:
Use a wrench on the hexagon provided to prevent the ball joint rotating.
- Remove and discard the 2 nuts.
- Remove the rear stabilizer bar link.
INSTALLATION
1.
CAUTION:
Use a wrench on the hexagon provided to prevent the ball joint rotating.
2. Install the rear wheel.
