Land Rover Defender: Navigation System Map Updates - All Markets Excluding China, Japan and Korea

Land Rover Defender 2020-2024 Service Manual / Electrical / Information and Entertainment System / Navigation System Map Updates - All Markets Excluding China, Japan and Korea

DESCRIPTION AND OPERATION

OVERVIEW

WARNING: Make sure the relevant safety warnings have been read and understood before operating the navigation system.

NOTE:

This document contains the instructions of the PIVI navigation system for:

NOTE:

There are 2 ways to update the navigation map system:

For further details of the Navigation system, refer to the relevant section of the Owner Handbook.

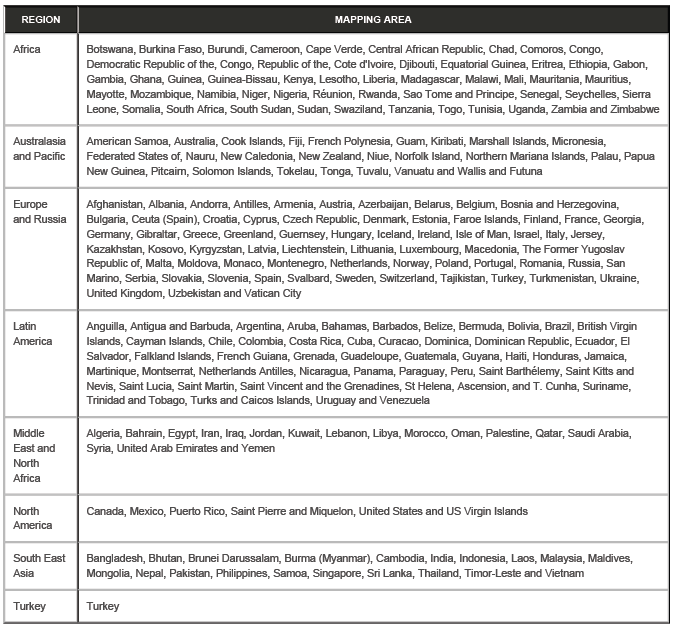

Mapping Regions

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

OPERATION

MAP INSTALLATION PROCESS

NOTE: Make sure the PIVI system does not contain any installed navigation map.

Recommendation is a 64 gigabyte (GB) USB flash drive is used.

Download latest map data from the HERE official website, unzip the map data and save onto the root of USB.

Set the vehicle in Power Mode 4 (Accessory (vehicle unlocked and Smart Key present) ) or above.

Startup the PIVI system and open the navigation application before inserting a USB flash drive.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

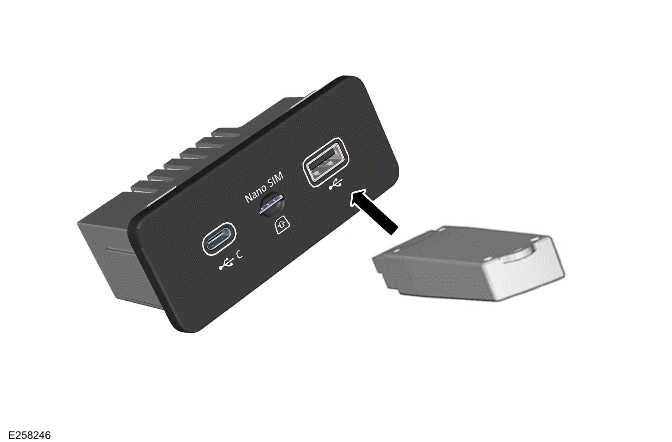

Insert the USB flash drive containing the latest valid map data (for example: DONNINGTON_468_AP_Q210) into the vehicle USB port.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

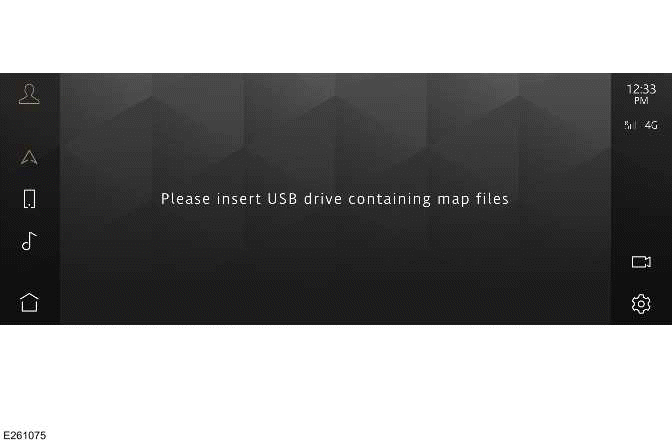

If the USB flash drive is inserted without map files, appropriate message appears.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

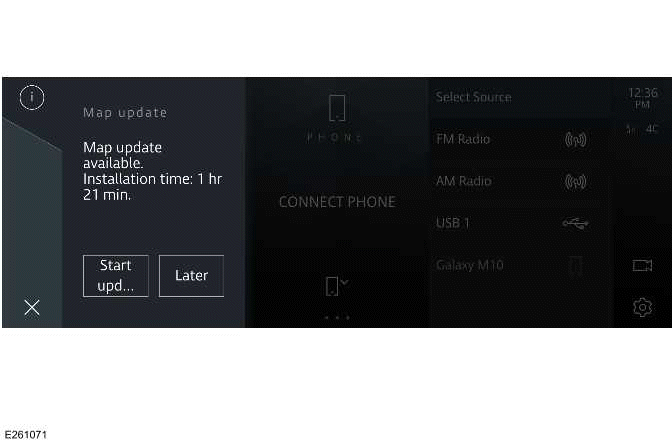

If a valid map data is available on the USB flash drive, the following pop-up appears from any screen and displays.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

MAP INSTALLATION SUCCESS

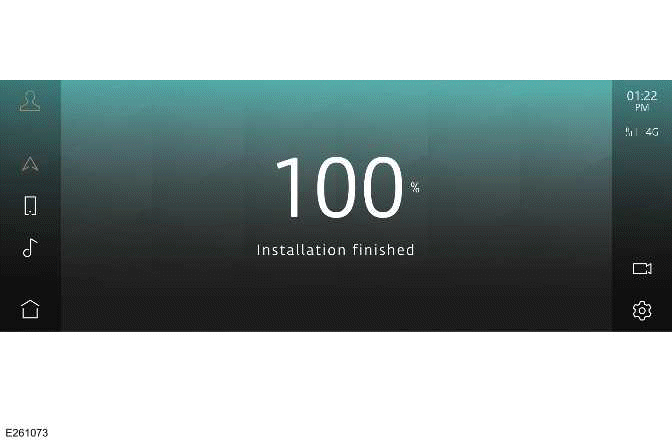

When the map installation process finishes, application displays 100% installation progress and appropriate message.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

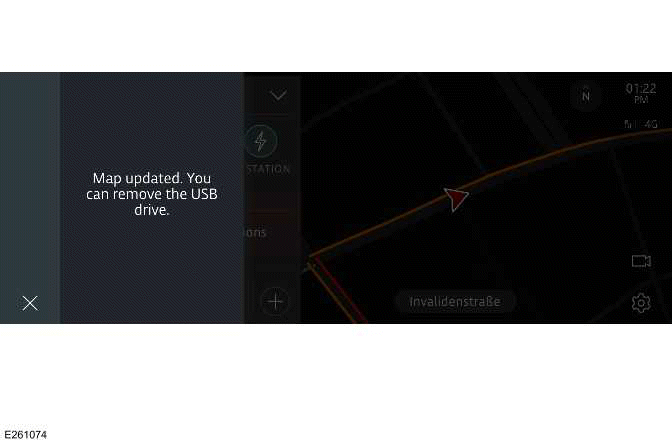

When installation is successfully finished, system pop-up appears with message.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

UNIVERSAL SERIAL BUS MAP UPDATE PROCESS

Use the same steps as for Map Installation.

The only difference is that with Map Update case, some maps are already available on the system.

In case of an error, follow the instruction on the screen.

NOTE: For additional support, contact JLR technical assistance.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

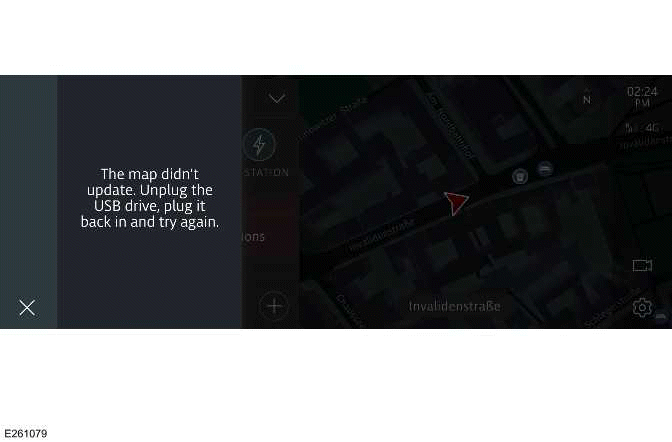

Unplug the USB driver flash and plug it back in and try again.

MAP INFORMATION

Use the following process to review the current map information:

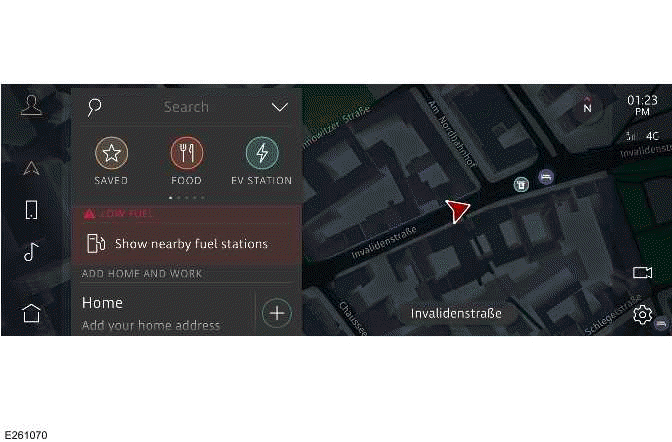

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

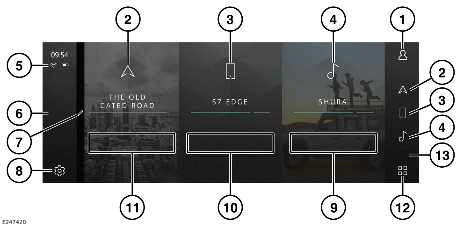

  1. Profile
  2. Navigation
  3. Phone
  4. Media
  5. Status
  6. Passenger side bar
  7. Edit
  8. Settings
  9. Media shortcut icons
  10. Phone shortcut icons
  11. Navigation shortcut icons
  12. Apps icon
  13. Driver side bar

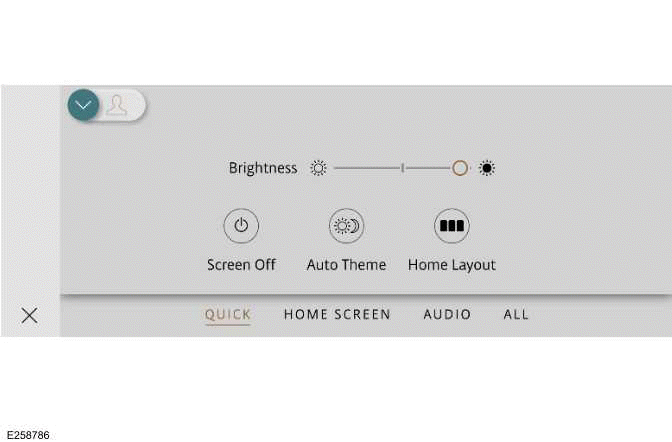

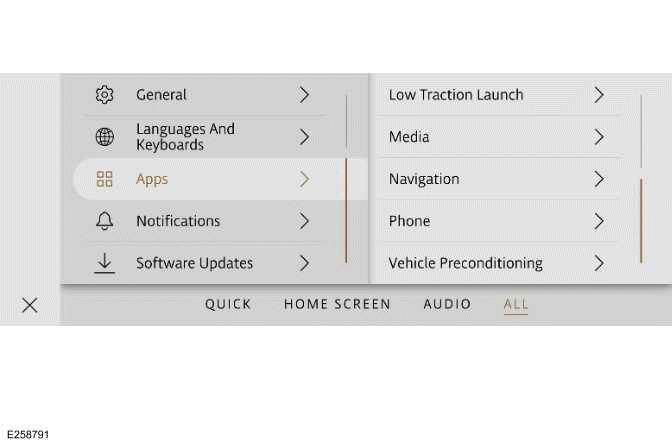

Press the Settings Icon and select the 'All' tab.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

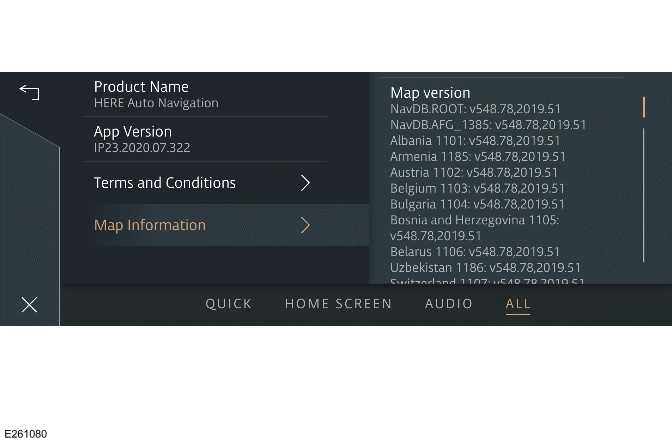

Press the 'Apps' tab and select the 'Navigation' tab.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

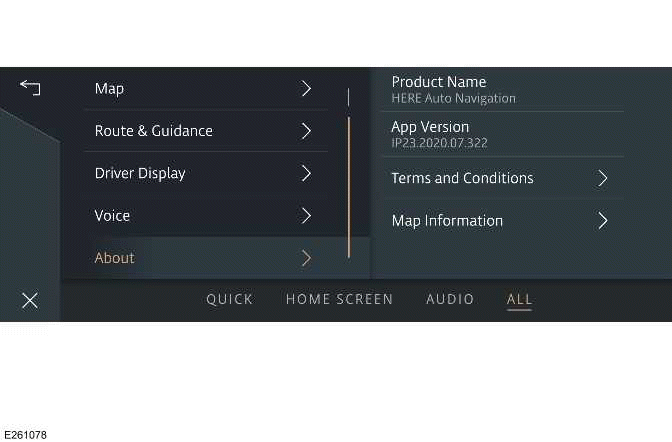

Press the 'About' tab.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

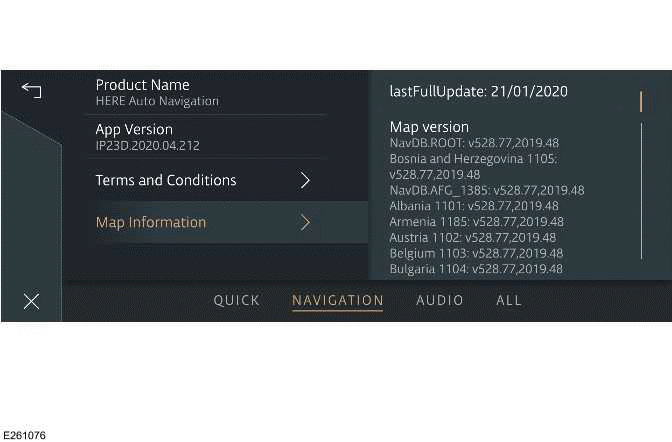

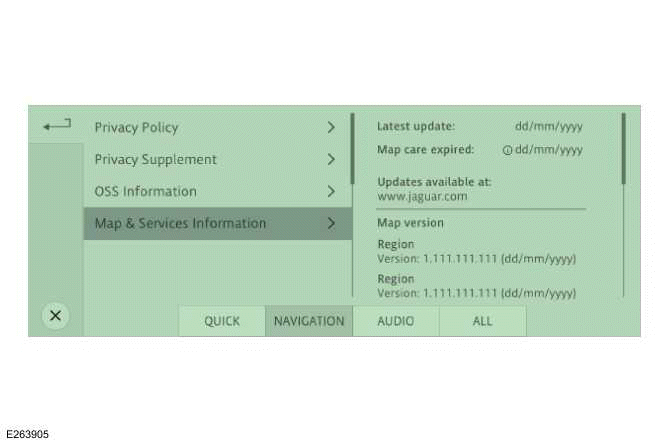

You can check map information in corresponding system menu.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

MAP CARE LICENSE

The SOTA update happens as long as the map care license is still valid. The expiration date for the map license is visible in the 'Map Information'.

Before the map care license expires

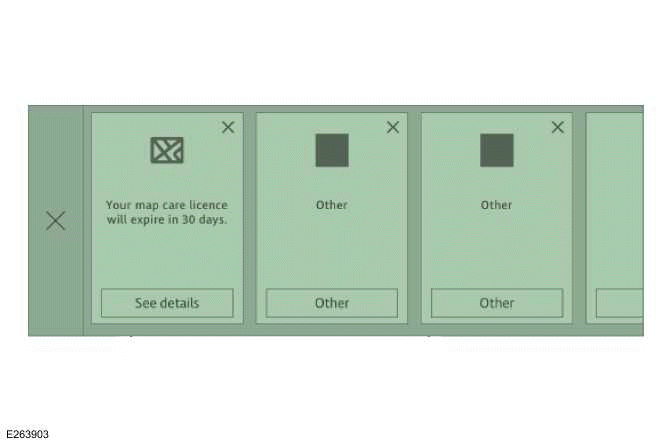

A notification appears in the Touchscreen. The notification appears 30 days before the expiration date.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

Press 'See detail': You can review information on 'Map Information'.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

After the expiration date

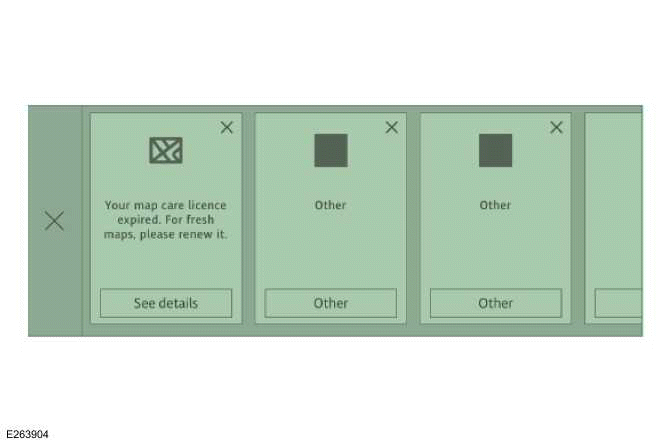

A notification appears in the Touchscreen.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

Press 'See detail': You can review information on 'Map Information'. A warning icon appears next to the date. If the current maps are still up-to-date, the status summary shows the relevant information.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

Renewed license

When the license is renewed, the 'Map Information' page shows the new expiration date.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

UPDATE REGIONS

When updated maps become available, the navigation application downloads and installs updated maps for the home region. Additionally, maps of other regions are updated whenever you drive to them or plan a trip to a region with outdated maps.

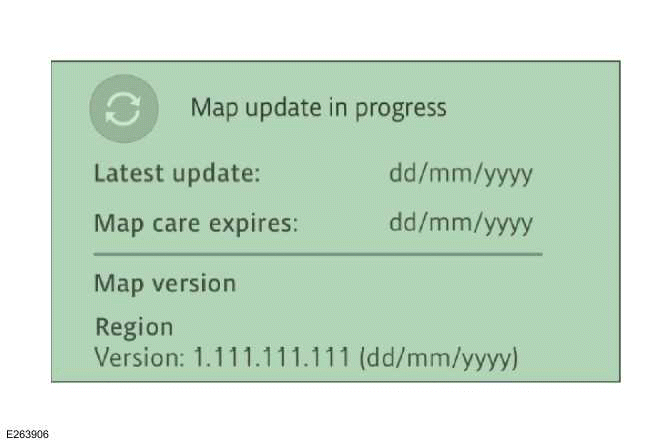

In the 'Map Information' you can review details about an ongoing map update. Regions that are currently being updated can be marked with an icon to explain the reason for the update. Regions that are taken into consideration for a map update are:

Region update upon entering another country

When entering another country, the application triggers a map update for the current region.

Region update along a route

NOTE:

When you are starting a guidance session to a destination located in a region outside of the home region, the application triggers a map update for all regions along the route as well as the region of the final destination.

YEARLY BASELINE UPDATE

You are informed about the benefits of a USB Map Update of the entire map market yearly. The instructions will be emailed to the user.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea

After tapping on 'See details', user sees summary of the update or map care license expiration, including some help how to proceed. The call to action button in the top right corner sends an email to the user with instructions and the correct link to extend contract or download map data.

Navigation System Map Updates - All Markets Excluding China, Japan and Korea
