Land Rover Defender: Parking Aid - Control Diagram

Land Rover Defender 2020-2024 Service Manual / Electrical / Instrumentation and Warning Systems / Parking Aid / Parking Aid - Control Diagram

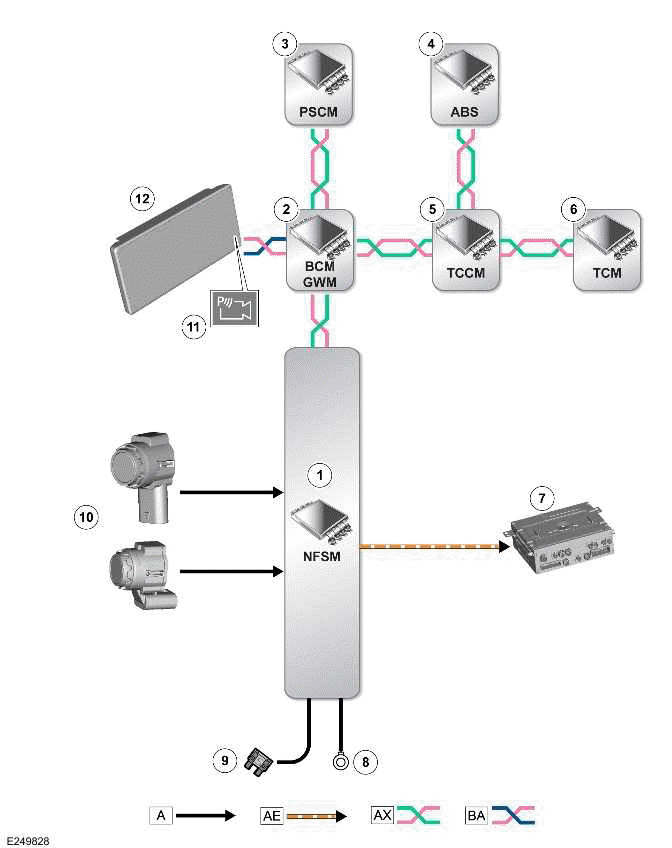

CONTROL DIAGRAM - 1 OF 3 - PARKING AID - 360º

Parking Aid

A = HARDWIRED: AE = LOW-VOLTAGE DIFFERENTIAL SIGNALLING (LVDS): AX = FLEXRAY: BA = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) HUMAN MACHINE INTERFACE (HMI) SYSTEMS BUS.

  1. NFSM
  2. BCM/ GWM
  3. Power Steering Control Module (PSCM)
  4. ABS
  5. Transfer Case Control Module (TCCM)
  6. TCM
  7. IGM / ICCM
  8. Ground
  9. Power supply
  10. Parking Aid and Park Assist sensor (quantity 12)
  11. Parking Aid switch
  12. TS

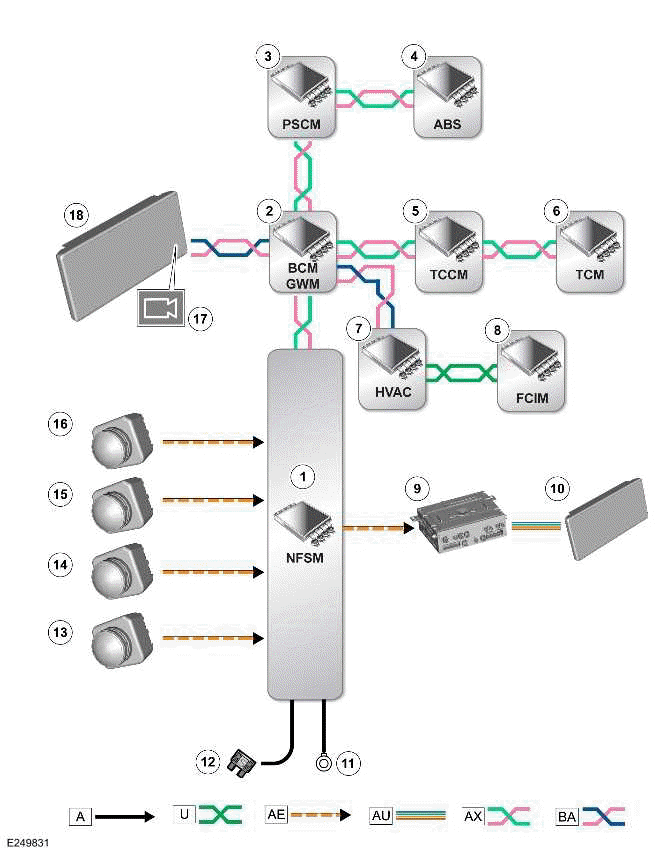

CONTROL DIAGRAM - 2 OF 3 - PROXIMITY CAMERA SYSTEM

Parking Aid

A = HARDWIRED: U = PRIVATE CAN BUS: AE = LVDS: AU = APIX2: AX = FLEXRAY: BA = HS CAN HMI SYSTEMS BUS.

  1. NFSM
  2. BCM/ GWM
  3. PSCM
  4. ABS
  5. TCCM
  6. TCM
  7. Heating, ventilation, and air conditioning (HVAC) control module
  8. FCIM
  9. IGM / ICCM
  10. TS
  11. Ground
  12. Power supply
  13. Front proximity camera
  14. Left door mirror proximity camera
  15. Right door mirror proximity camera
  16. Rear proximity camera
  17. Proximity camera switch
  18. TS

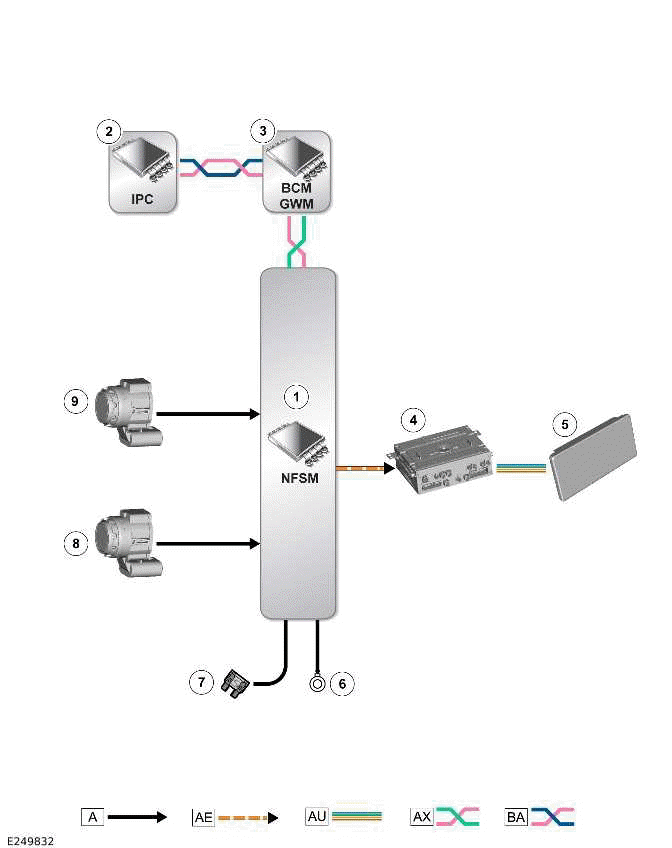

CONTROL DIAGRAM - 3 OF 3 - WADE SENSING SYSTEM

Parking Aid

A = HARDWIRED: AE = LVDS: AU = APIX2: AX = FLEXRAY: BA = HS CAN HMI SYSTEMS BUS.

  1. NFSM
  2. IPC
  3. BCM/ GWM
  4. IGM / ICCM
  5. TS
  6. Ground
  7. Power supply
  8. Right door mirror wade sensor
  9. Left door mirror wade sensor
