Land Rover Defender: Wheel Bearing and Wheel Hub
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
.png)
204-250
Wheel bearing install and removal tool
.png)
204-305
Remover, Wheel Bearing
.png)
204-726
Remover/Installer, Wheel Bearing
.png)
JLR-204-807
Installer, Front Wheel Bearing
.png)
JLR-204-811
Support, Hub
.png)
JLR-204-812
Installer, Hub Bearing

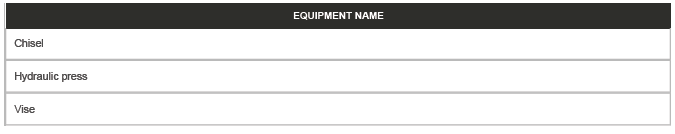

GENERAL EQUIPMENT
.png)
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustration showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2-post lift.
2. Remove the rear wheel knuckle.
3.
.png)

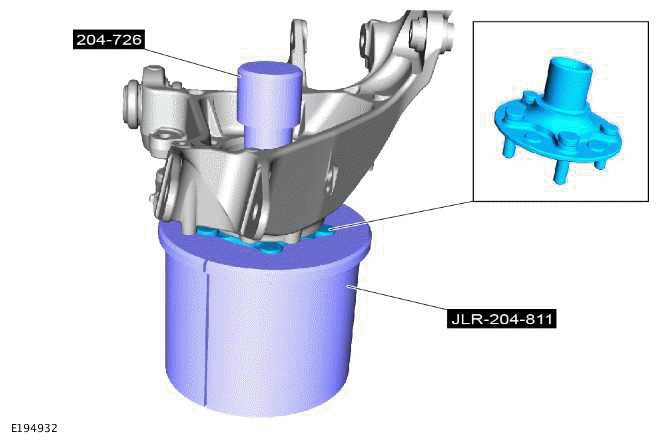

Use the special tools to remove the wheel hub.
Special Tool(s): JLR-204-811, 204-726
General Equipment: Hydraulic press
4.
.png)

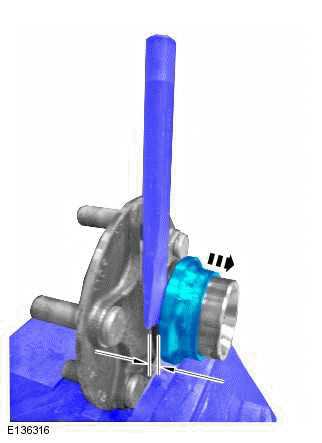

Use the suitable tools to move the bearing race until a suitable gap opens up.
General Equipment: Vise
General Equipment: Chisel
5.
.png)

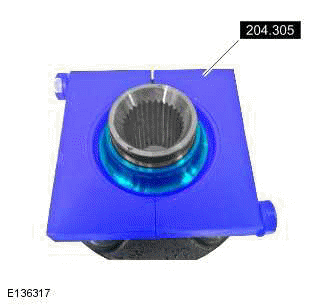

Use the special tool to remove the bearing race from the wheel hub.
Special Tool(s): 204-305
General Equipment: Hydraulic press
6.
.png)

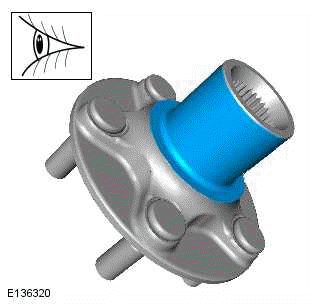

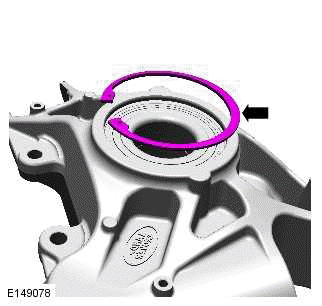

Clean and inspect the wheel hub for deterioration.
7.
NOTE: Note the orientation of the circlip prior to removal.
.png)
Remove the circlip.
8.
CAUTION: Note the orientation of the component prior to removal.
.png)

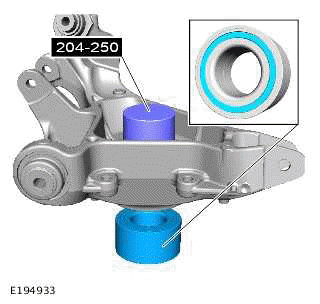

Use the special tool to remove the wheel bearing from the wheel knuckle.
Special Tool(s): 204-250
General Equipment: Hydraulic press
9.
.png)

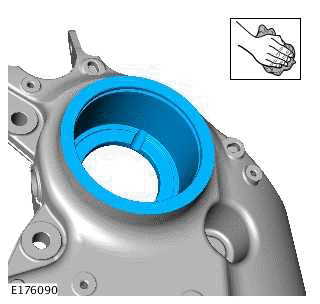

Clean and inspect the wheel knuckle for deterioration.
INSTALLATION
1.
CAUTIONS:
- Make sure that the area around the component is clean and free of foreign material.
- Make sure that these components are installed to the noted removal position.
.png)

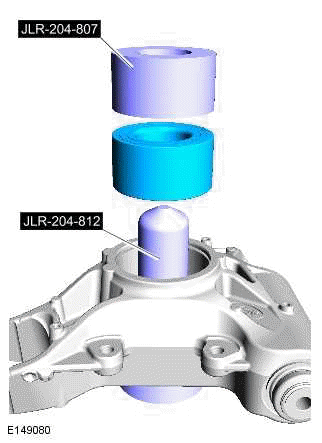

Use the special tools to install the new wheel bearing.
Special Tool(s): JLR-204-807, JLR-204-812
General Equipment: Hydraulic press
2.
NOTE: Make sure that the circlip is installed to the noted removal position.
.png)
Install the circlip.
3.
.png)

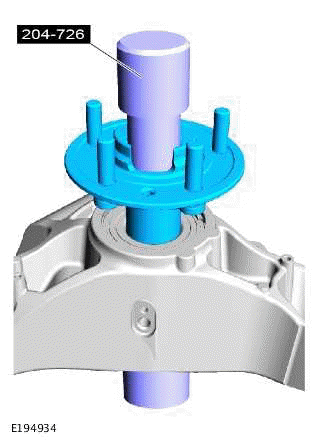

Use the special tools to install the wheel hub.
Special Tool(s): 204-726
General Equipment: Hydraulic press
4. Install the rear wheel knuckle.
