Land Rover Defender: Rear Subframe Bush
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
.png)
204-598
Hydraulic Cylinder 10t
.png)
JLR-502-016
Remover, Bush
.png)
JLR-502-017
Remover Support, Bush
.png)
JLR-502-018
Installer, Bush
.png)
JLR-502-019
Remover Support, Bush
REMOVAL
CAUTION: Take extra care not to damage the component surface, failure to follow this instruction may result in corrosion.
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2-post lift.
2. Remove the rear subframe.
3.
NOTE: Note the orientation of the bush, before removal.
.png)
Mark the position of the rear subframe bush.
4.
CAUTION: The bush flanges need to be removed to allow bush removal.
.png)

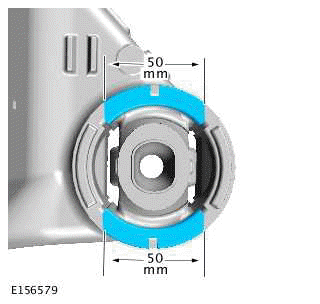

Remove the rear subframe bush flanges as shown.
5.
CAUTION: Make sure that the special tool is correctly located.
.png)

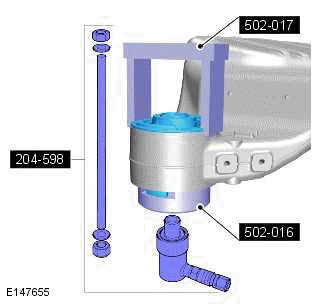

Use the special tool to remove the rear subframe bush.
Special Tool(s): 204-598, JLR-502-016, JLR-502-017
INSTALLATION
1.
NOTE: Make sure the bush is correctly oriented.
.png)

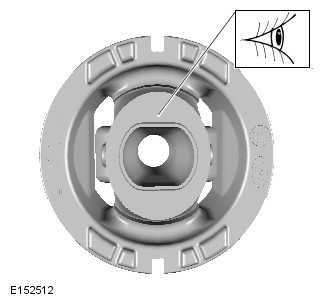

Check the orientation of the bush.
2.
CAUTIONS:
- Use the recommended lubricant.
- Make sure that the special tool is correctly located.
.png)

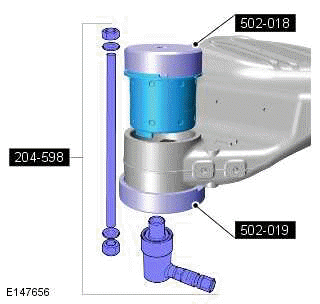

Use the special tools to install the rear subframe bush.
Special Tool(s): 204-598, JLR-502-018, JLR-502-019
3. Install the rear subframe.
