Land Rover Defender: Removal

1.

CAUTION: For vehicles installed with coil suspension only.

Replace the front coil springs.

2. Disconnect the vehicle start-up battery.

3.

CAUTION: Retain all the fixings.

NOTE: Do not remove fog lamps if present.

Remove the front bumper. Remove the front armature and cooling module protection bar (or undersheild bracket if installed).

Remove hood latch panel. Do not disassemble.

4.

NOTE: For vehicles equipped with active grille.

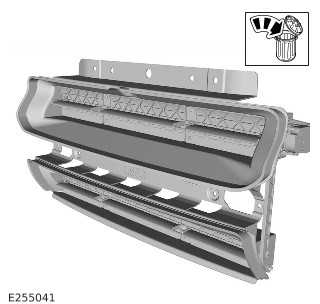

Winch Mounting Kit

Discard the lower cooling shroud / active grille. Tape up the vehicle harness active vane plug.

5.

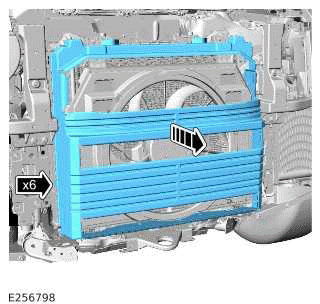

Winch Mounting Kit

Release the 6 clips and remove the radiator air duct from the vehicle.

6.

WARNING: Make sure to wear suitable personal protective equipment.

CAUTION: Only cut and discard the sections of rubber seal as illustrated.

NOTE: Image looking from front of part.

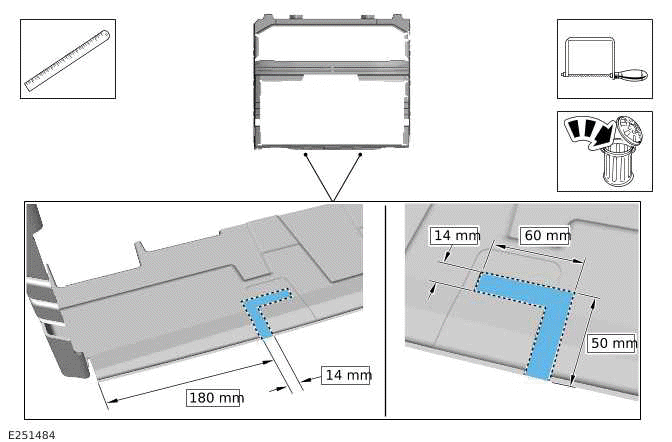

Winch Mounting Kit

Use suitable tooling to cut the illustrated sections from the radiator air duct. Discard the removed parts.

7.

WARNING: Make sure to wear suitable personal protective equipment.

CAUTION: Only cut and discard the sections of rubber seal as illustrated.

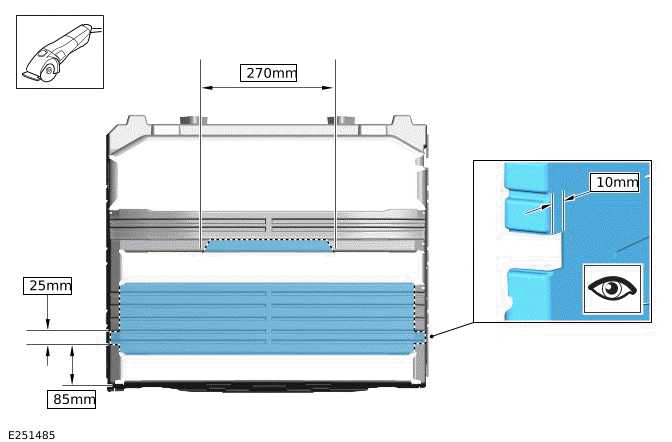

Winch Mounting Kit

Use suitable tooling to cut the illustrated sections from the radiator duct. Discard the removed parts.
