Land Rover Defender: Brake Caliper 4 Piston Fixed Caliper

REMOVAL AND INSTALLATION

GENERAL EQUIPMENT

Brake Caliper 4 Piston Fixed Caliper

PART(S)

Brake Caliper 4 Piston Fixed Caliper

REMOVAL

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

1. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to activate the Integrated Power Brake assembly mode.

General Equipment: Jaguar Land Rover approved diagnostic equipment

2. Raise and support the vehicle on a suitable 2 post lift.

3. Remove the wheel and tire.

4.

CAUTION: The brake pad wear sensor is easily damaged. Do not use a lever to remove the sensor.

NOTE: Left side only.

Brake Caliper 4 Piston Fixed Caliper

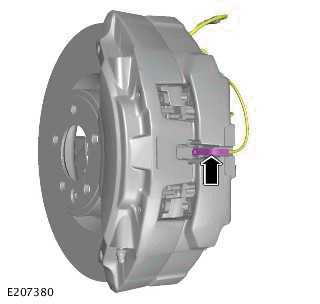

Disconnect the brake pad wear sensor.

5.

WARNING: Be prepared to collect escaping fluid.

CAUTION: If the brake hose banjo bolt has been loosened or removed, a new brake hose assembly must be installed.

Brake Caliper 4 Piston Fixed Caliper

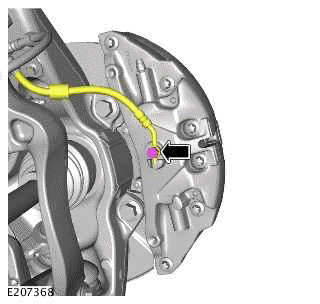

Disconnect the brake hose from the brake caliper.

6.

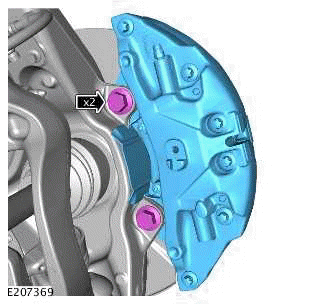

Brake Caliper 4 Piston Fixed Caliper

7.

NOTE: Only do this step if a new brake caliper is to be installed.

Remove the brake pads.

INSTALLATION

1.

NOTE: Only do this step if the brake pads were previously removed.

If a new brake caliper is to be installed, install the brake pads.

2.

CAUTION: Make sure that new bolts are installed.

Brake Caliper 4 Piston Fixed Caliper

3.

CAUTION: Make sure that a new flexible brake hose assembly is to be installed.

4.

Brake Caliper 4 Piston Fixed Caliper

Connect the brake pad wear sensor.

5. Use the JLR approved diagnostic equipment to deactivate the Integrated Power Brake assembly mode.

General Equipment: Jaguar Land Rover approved diagnostic equipment

6. Use the JLR approved diagnostic equipment to complete the Leakage and Air Monitoring test to the Integrated Power Brake.

General Equipment: Jaguar Land Rover approved diagnostic equipment

7. Bleed the brake system.

8. Install the wheel and tire.
