Land Rover Defender: Rocker Panel
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left components, right components are similar.
1. Raise and support the vehicle on a suitable 2-post lift.
2. Remove the front fender moulding.
3.
.png)

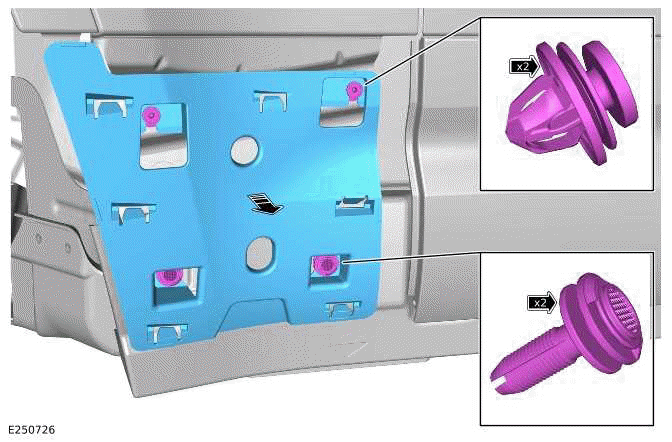

- Remove the 2 lower clips.
- Release the 2 upper clips.
- Remove the front fender moulding bracket.
4.
.png)

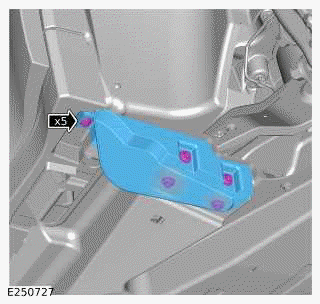

- Remove the 5 bolts.
- Remove the rear wheel arch liner finisher panel.
5.
CAUTION: Take extra care not to damage the component.
.png)

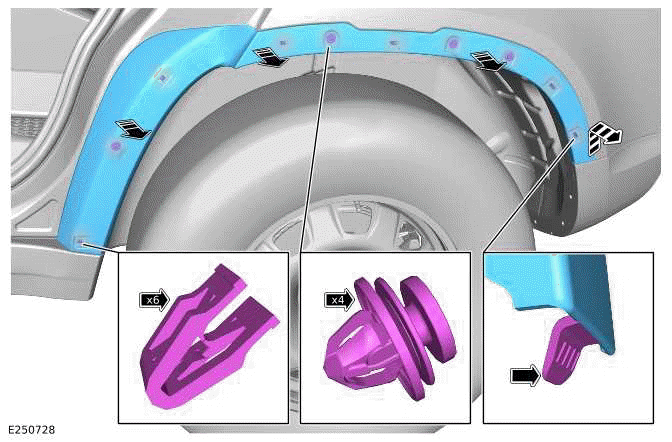

- Release the 10 clips.
- Remove the rear wheel arch liner moulding.
6.
.png)

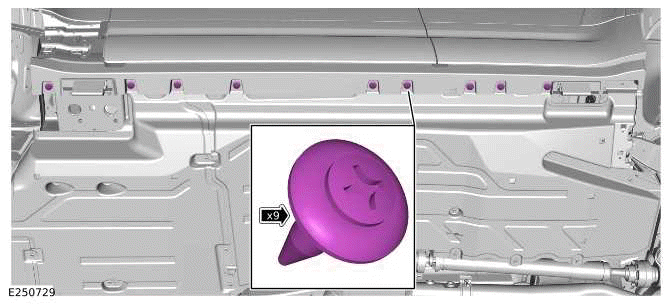

Remove the 9 clips.
7.
CAUTION: Take extra care not to damage the component.
.png)

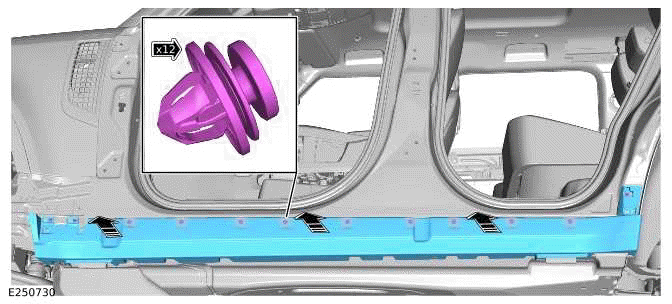

Remove the rocker panel at the 12 clips.
INSTALLATION
1.
- Install the rocker panel to the 12 clips.
- Install and secure the 9 lower clips.
2. Install the rear wheel arch liner moulding to the 10 clips.
3.
- Install the rear wheel arch liner finisher panel.
- Install and tighten the 5 bolts.
Torque: 4.1Nm
4.
- Install the front fender moulding bracket to the 2 clips.
- Install and secure the 2 lower clips.
5. Install the front fender moulding.
