Land Rover Defender: Seat Back Tidy - Premium Leather

SEAT BACK TIDY - PREMIUM LEATHER - PART NUMBER: VPLVS0182

REMOVAL AND INSTALLATION

WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

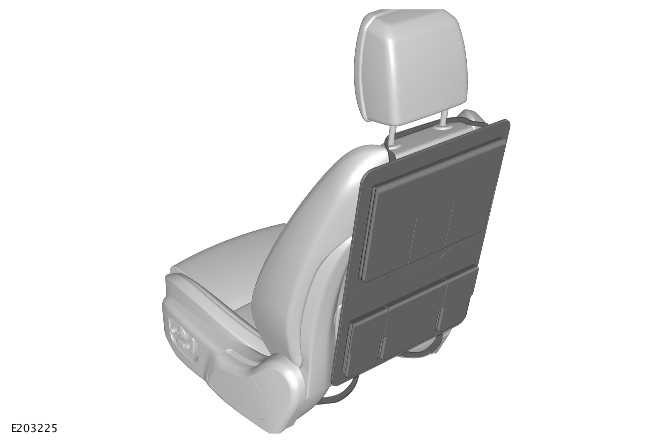

Seat Back Tidy - Premium Leather

INSTALLATION

1. Raise the front row seat head restraint.

2.

Seat Back Tidy - Premium Leather

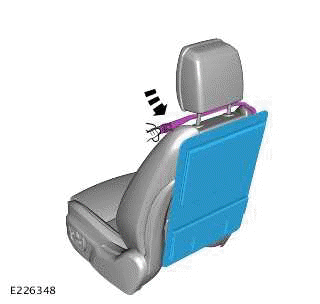

Wrap the top strap around the front row seat head restraint.

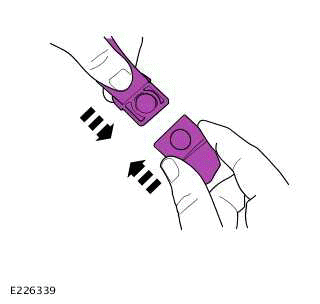

3.

Seat Back Tidy - Premium Leather

4.

Seat Back Tidy - Premium Leather

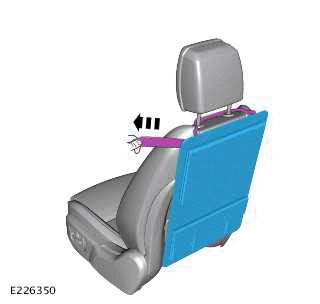

Pull on the strap to tighten the top strap around the front row seat head restraint.

5.

Seat Back Tidy - Premium Leather

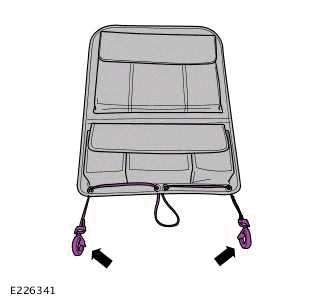

The base of the seat back tidy is secured to the front row seat using 2 hooks and a drawstring cord.

6.

Seat Back Tidy - Premium Leather

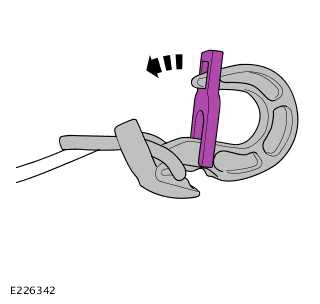

Open the 2 hooks.

7.

Seat Back Tidy - Premium Leather

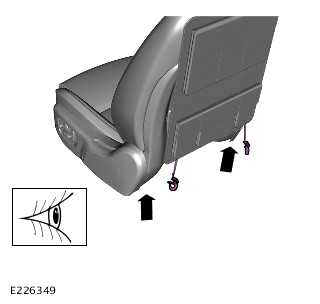

The 2 hooks will fasten to the underside of the front row seat.

8.

Seat Back Tidy - Premium Leather

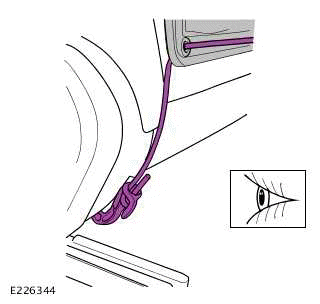

Attach the 2 hooks to the underside of the front row seat.

9.

Seat Back Tidy - Premium Leather

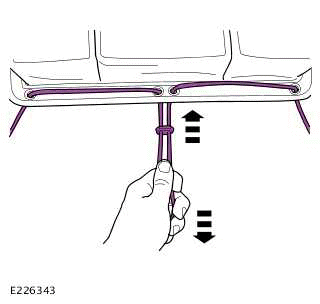

Pull on the drawstring to tighten the hook cords and secure the base of the seat back tidy.

10. Move the front row seat head restraint to the required position.
