Land Rover Defender: Steering Wheel
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
REMOVAL
WARNING:
CAUTION:

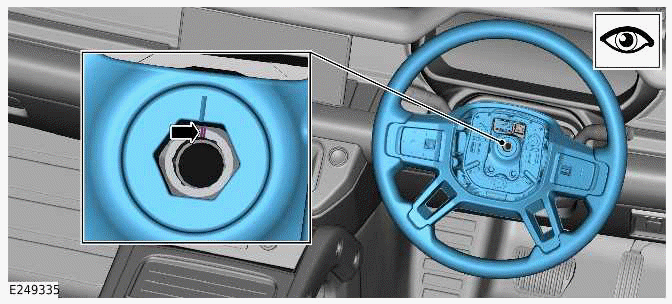

Make sure the steering wheel is in the straight ahead position.
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Remove the driver airbag.
3.

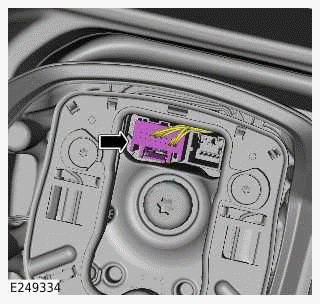

Disconnect the electrical connector.
4.

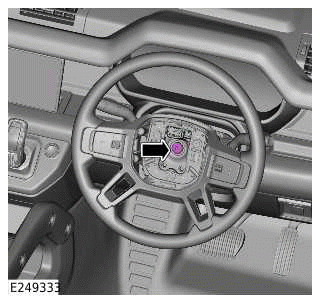

Remove the bolt.
5.
NOTE:
Note the orientation of the component prior to removal.
Remove the steering wheel.
6.

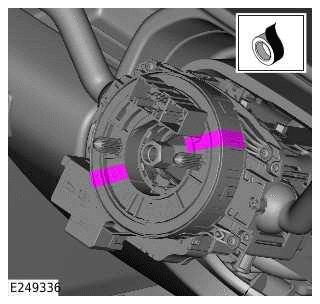

Use 2 tapes to retain the clockspring.
7.
NOTE:
Only perform the following step(s) if a new component is to be installed.
- Disconnect the electrical connector.

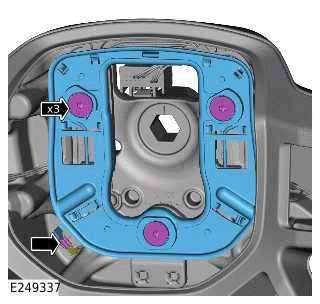

- Remove the 3 bolts.
- Remove the horn switch.
8.

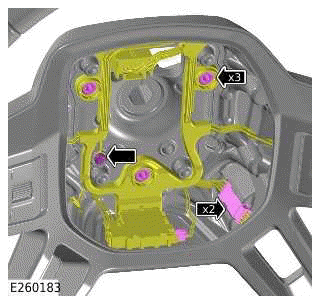

- Remove the bolt.
- Disconnect the 2 electrical connectors.
- Release the steering wheel wiring harness from the 3 clips.
9.

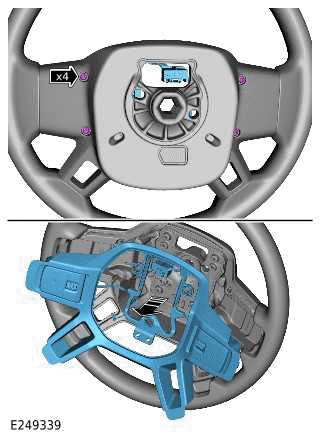

- Remove the 4 bolts.
- Remove the steering wheel cover.
10.

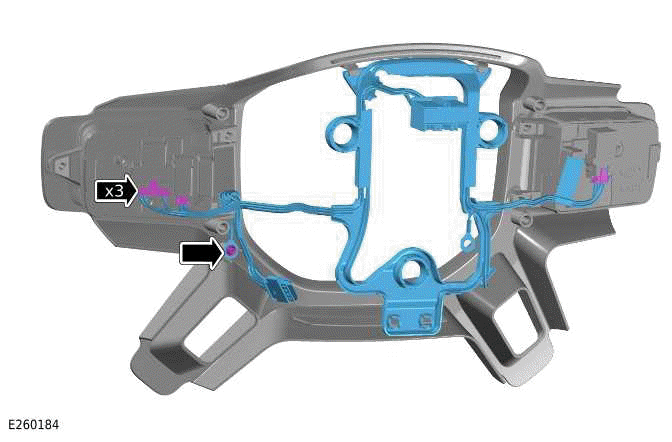

- Remove the bolt.
- Disconnect the 3 electrical connectors.
- Remove the steering wheel wiring harness.
11.

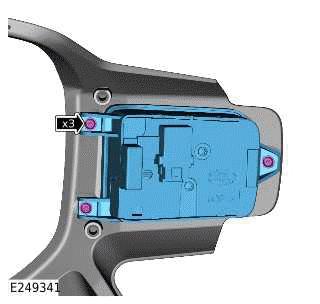

- Remove the 3 bolts.
- Remove the steering wheel left switchpack.
12.

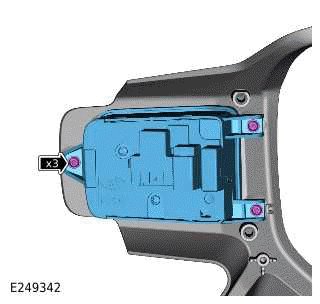

- Remove the 3 bolts.
- Remove the steering wheel right switchpack.
INSTALLATION
1.
NOTE:
Steps 1 to 6 are only required if the components were previously removed.
- Install the steering wheel right switchpack.
- Install and tighten the 3 bolts.
Torque: 1.5Nm
2.
- Install the steering switch left switchpack.
- Install and tighten the 3 bolts.
Torque: 1.5Nm
3.
- Install the steering wheel wiring harness.
- Connect the 3 electrical connectors.
- Install and tighten the bolt.
Torque: 2Nm
4.
- Install the steering wheel cover.
- Install and tighten the 4 bolts.
Torque: 2Nm
5.
- Install steering wheel wiring harness into the 3 clips.
- Connect the 2 electrical connectors
- Install and tighten the steering wheel wiring harness bolt.
Torque: 2Nm
6.
- Install the horn switch.
- Install and tighten 3 bolts.
- Connect the electrical connector to the horn switch.
7. Remove the 2 tapes from the clockspring.
8.
NOTE:
Make sure that the component is installed to the noted removal position.
- Install the steering wheel.
- Install and tighten the steering wheel bolt.
Torque: 48Nm
- Connect the electrical connector.
9. Install the driver airbag.
10. Connect the startup battery ground cable.
11. If a new component has been installed, use the Jaguar Land Rover (JLR)
approved diagnostic equipment
to configure.
General Equipment: Jaguar Land Rover approved diagnostic equipment
