Land Rover Defender: Third Row Seat Cushion Cover

REMOVAL AND INSTALLATION

GENERAL EQUIPMENT

Third Row Seat Cushion Cover

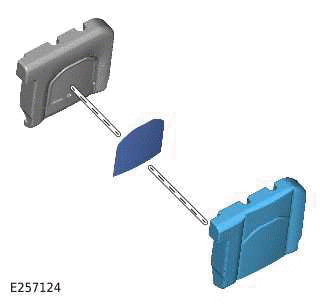

PART(S)

Third Row Seat Cushion Cover

REMOVAL

NOTE:

1. Remove the third row seat.

2.

Third Row Seat Cushion Cover

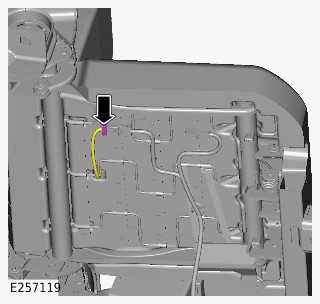

Disconnect the seat cushion heater element electrical connector.

3.

Third Row Seat Cushion Cover

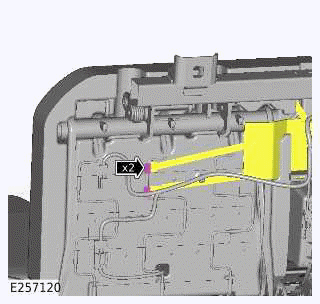

Release the 2 seat base clips.

4.

Third Row Seat Cushion Cover

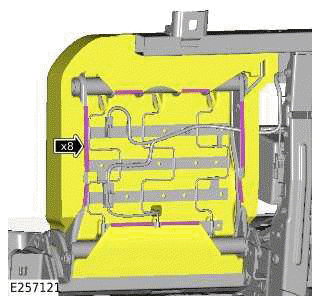

Release the 8 seat cushion cover clips.

5.

NOTE: Do not disassemble further if component if removed for access only.

Third Row Seat Cushion Cover

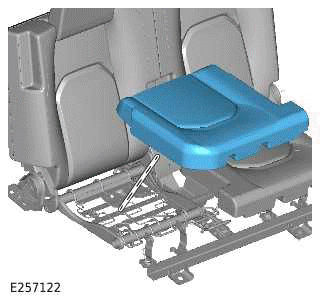

Remove the third row seat cushion cover assembly.

6.

Third Row Seat Cushion Cover

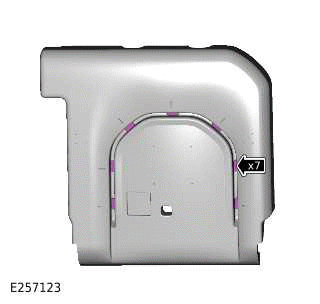

Use a suitable tool to remove and discard the 7 hog rings.

7.

Third Row Seat Cushion Cover

Remove the third row seat cushion cover.

INSTALLATION

1.

NOTE: Steps 1 to 3 are only required if the components were previously removed.

Install the third row seat cushion cover.

2.

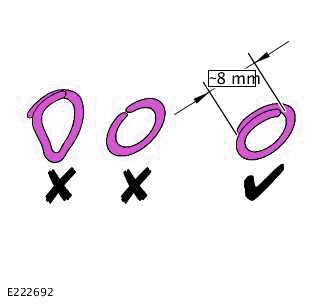

CAUTION: Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed as illustrated.

NOTE: Make sure that new hog rings are installed.

Third Row Seat Cushion Cover

General Equipment: Hog ring pliers Renew Part: Hog rings Quantity: 7.

3.

Third Row Seat Cushion Cover

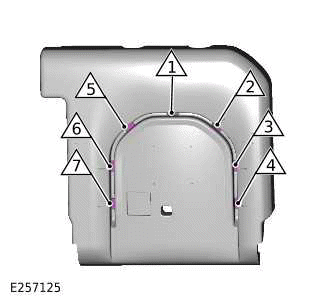

Install the 7 new hog rings in the sequence shown.

4. Install the third row seat cushion cover assembly.

5. Install the 8 seat cushion cover clips.

6. Install the 2 seat base clips.

7. Connect the seat cushion heater element electrical connector.

8. Install the third row seat.
