Land Rover Defender: Transfer Case Front Output Seal

REMOVAL AND INSTALLATION

SPECIAL TOOL(S)

Transfer Case Front Output Seal

205-818

Installer, Seal

Transfer Case Front Output Seal

308-636

Installer

Transfer Case Front Output Seal

JLR-308-926

Support Tool, Transfer Case

GENERAL EQUIPMENT

Transfer Case Front Output Seal

PART(S)

Transfer Case Front Output Seal

REMOVAL

NOTE:

1. Raise and support the vehicle on a suitable 2 post lift.

2. Remove the transfer case.

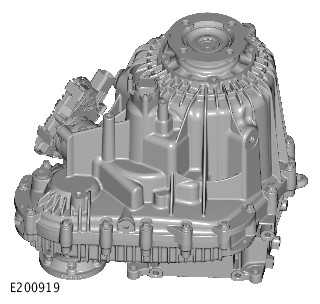

3. With assistance, secure the transfer case with its transmission mating face down on a flat surface.

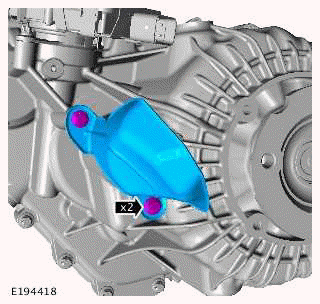

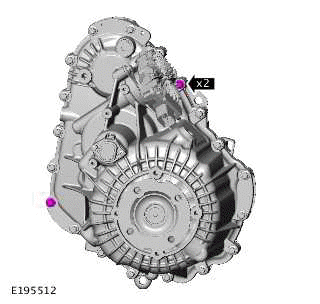

4.

Transfer Case Front Output Seal

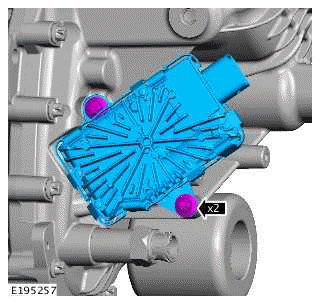

5.

Transfer Case Front Output Seal

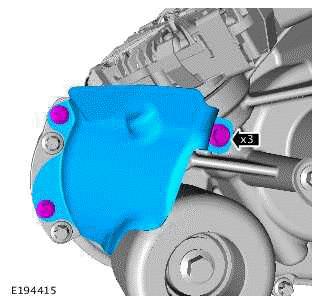

6.

Transfer Case Front Output Seal

7.

CAUTION: Make sure the bolt holes are clean and free of swarf.

Transfer Case Front Output Seal

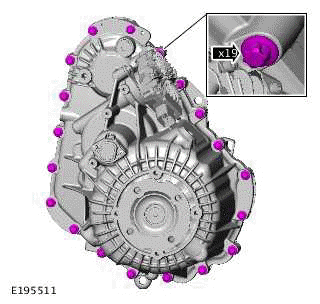

Remove the 19 transfer case bolts.

8.

CAUTION: Care must be taken when turning the transfer case over. The transfer case halves must not be allowed to separate.

With assistance, release the transfer case and secure with the rear face of the transfer case facing down on a flat surface.

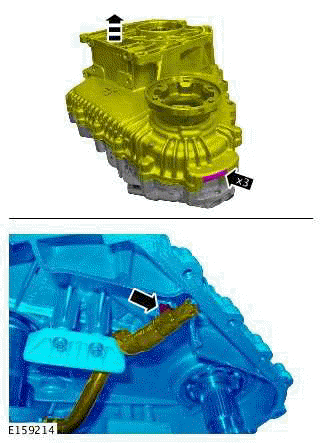

9.

CAUTION: Care must be taken to avoid damage to the mating surfaces.

Transfer Case Front Output Seal

10. Clean the component mating face.

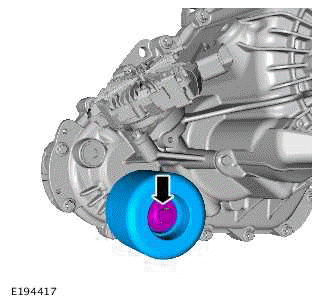

11.

Transfer Case Front Output Seal

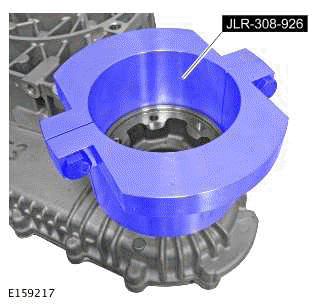

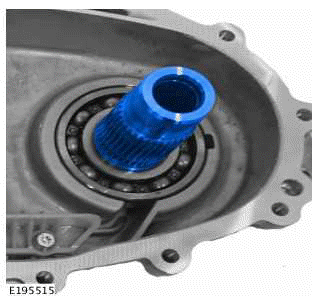

Use the special tool to support the output shaft flange.

Special Tool(s): JLR-308-926

12.

Transfer Case Front Output Seal

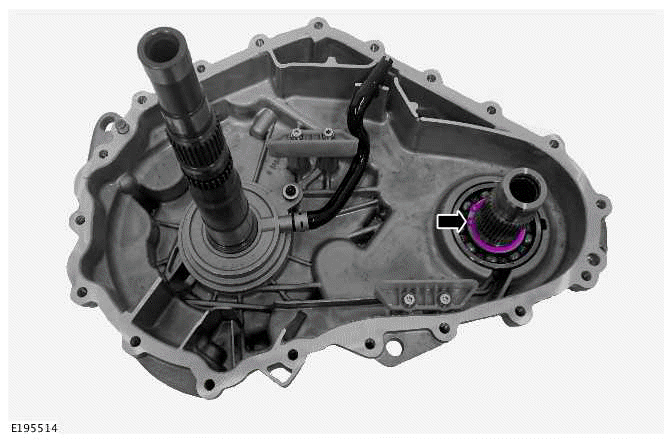

Remove the circlip.

13.

CAUTION: Do not use excessive force when removing the flange assembly.

Transfer Case Front Output Seal

Remove the front output shaft and flange assembly.

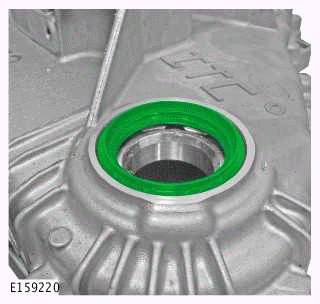

14.

Transfer Case Front Output Seal

INSTALLATION

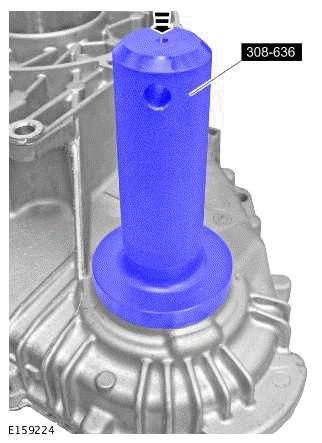

1.

Transfer Case Front Output Seal

2.

Transfer Case Front Output Seal

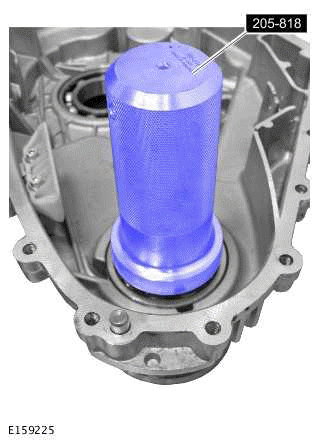

Use the special tool to install the drive flange.

Special Tool(s): 205-818

3.

NOTE: Check that the circlip is fully engaged.

Transfer Case Front Output Seal

Install the circlip.

4.

Transfer Case Front Output Seal

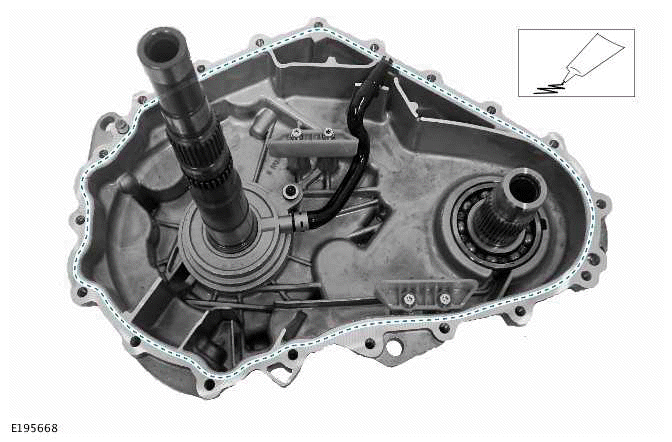

Apply a 2 mm bead of sealant to one surface of the transfer case mating face, as shown.

5.

CAUTION:

Transfer Case Front Output Seal

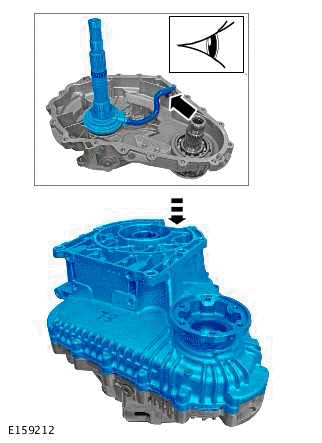

Install the front half of the transfer case.

6.

CAUTION: Care must be taken when turning the transfer case over. The transfer case halves must not be allowed to separate.

Transfer Case Front Output Seal

With assistance, release the transfer case and secure with its transmission mating face down on a flat surface.

7.

CAUTION: Only tighten the bolts finger-tight at this stage.

Transfer Case Front Output Seal

Install the 19 transfer case case bolts.

8.

Transfer Case Front Output Seal

Tighten the 2 bolts to the specified torque.

Torque: 10Nm

9.

Transfer Case Front Output Seal

Fully tighten the 19 bolts.

Torque: 35Nm

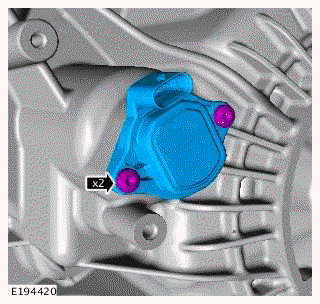

10.

Transfer Case Front Output Seal

11.

Transfer Case Front Output Seal

12.

Transfer Case Front Output Seal

13.

NOTE: This step is only required if previously removed.

Transfer Case Front Output Seal

14.

NOTE: This step is only required if previously removed.

Transfer Case Front Output Seal

15. With assistance, release the transfer case from the flat surface.

16. Install the transfer case.

17.
