Land Rover Defender: Transfer Case Rear Output Seal

REMOVAL AND INSTALLATION

SPECIAL TOOL(S)

Transfer Case Rear Output Seal

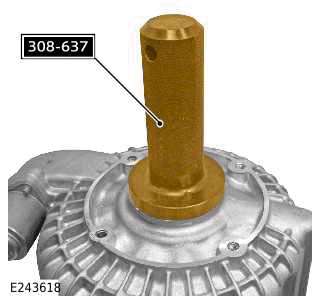

308-637

Installer

Transfer Case Rear Output Seal

JLR-308-927

Support Tool, Transfer Case

PART(S)

Transfer Case Rear Output Seal

REMOVAL

NOTE:

1. Raise and support the vehicle on a suitable 2 post lift.

2. Remove the transfer case.

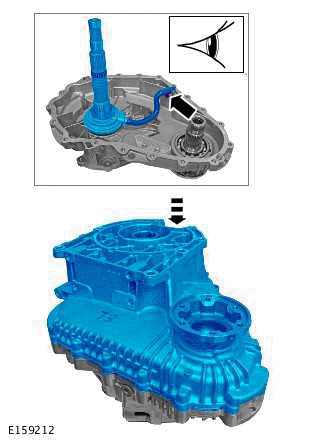

3. With assistance, secure the transfer case with its transmission mating face down on a flat surface.

4.

NOTE: If equipped.

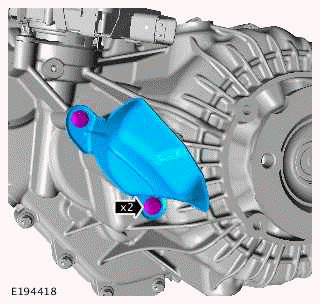

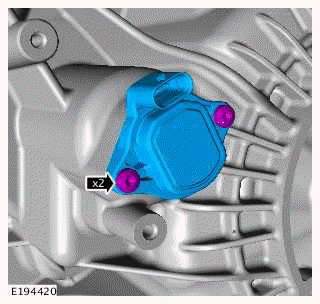

Transfer Case Rear Output Seal

5.

NOTE: If equipped.

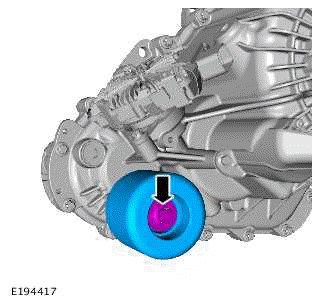

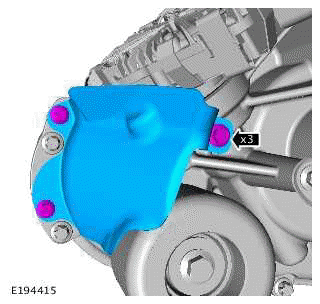

Transfer Case Rear Output Seal

6.

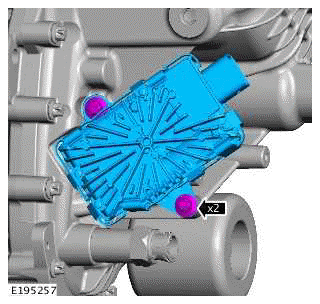

Transfer Case Rear Output Seal

7.

CAUTION: Make sure the bolt holes are clean and free of swarf.

Transfer Case Rear Output Seal

8.

Transfer Case Rear Output Seal

9.

Transfer Case Rear Output Seal

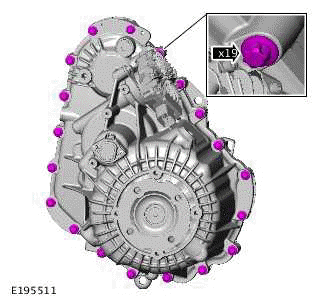

Remove the 19 transfer case bolts.

10.

CAUTION: Care must be taken when turning the transfer case over. The transfer case halves must not be allowed to separate.

With assistance, release the transfer case and secure with the rear face of the transfer case facing down on a flat surface.

11.

CAUTION: Care must be taken to avoid damage to the mating surfaces.

Transfer Case Rear Output Seal

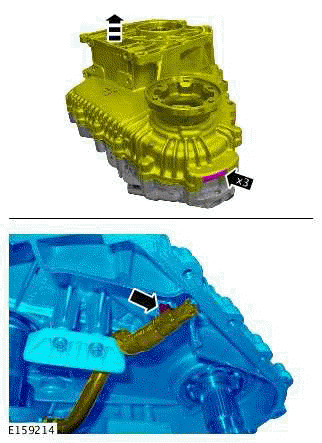

Use a soft faced mallet, release the front casing.

12. Clean the component mating faces.

13.

Transfer Case Rear Output Seal

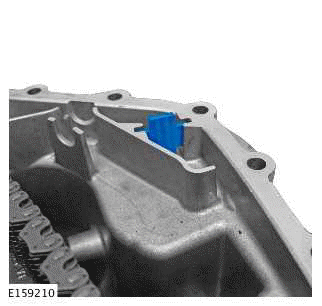

Locate the magnetic filter. The filter may have dropped into the front housing in the previous step.

14.

Transfer Case Rear Output Seal

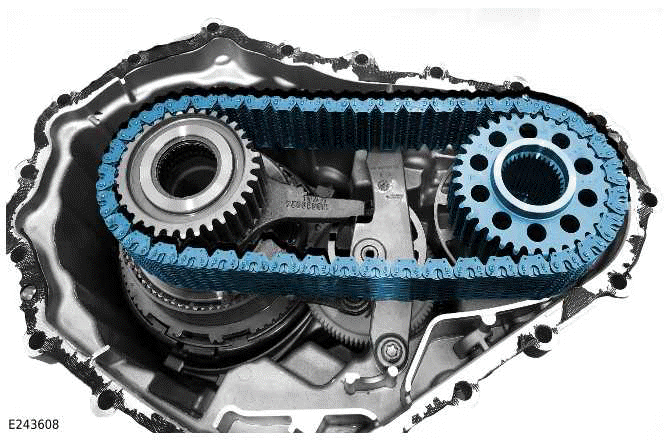

Remove the transfer case chain assembly.

15.

Transfer Case Rear Output Seal

16.

CAUTION: Note the installed position of the component prior to removal.

Transfer Case Rear Output Seal

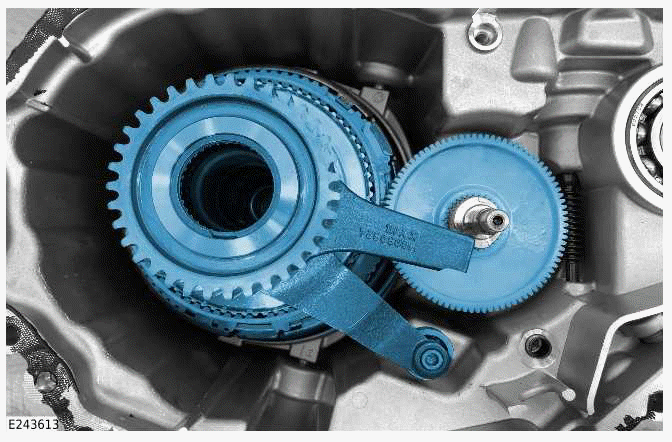

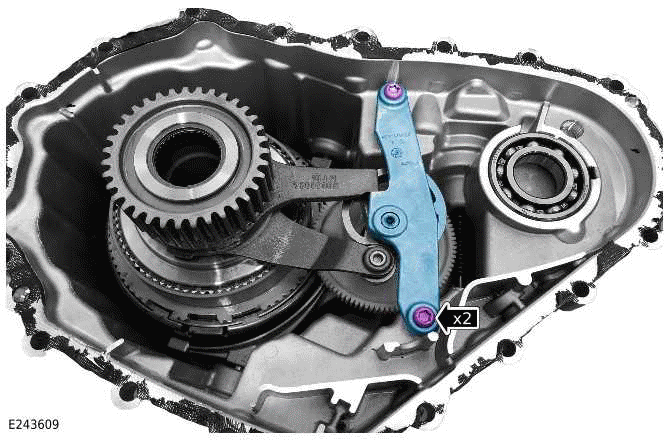

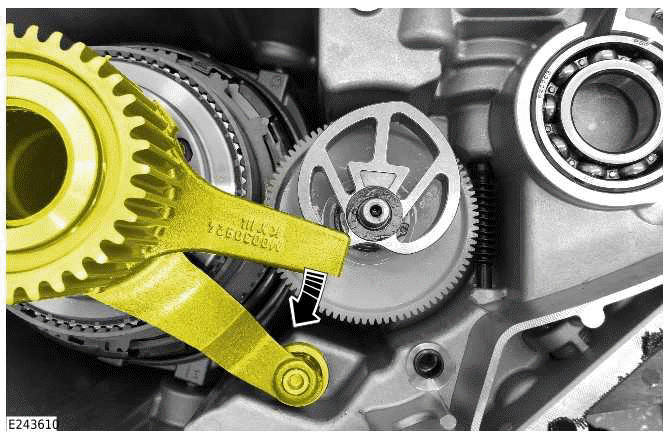

Rotate the transfer differential assembly to the position shown in the illustration.

17.

CAUTION: Note the installed position of the component prior to removal.

Transfer Case Rear Output Seal

18.

Transfer Case Rear Output Seal

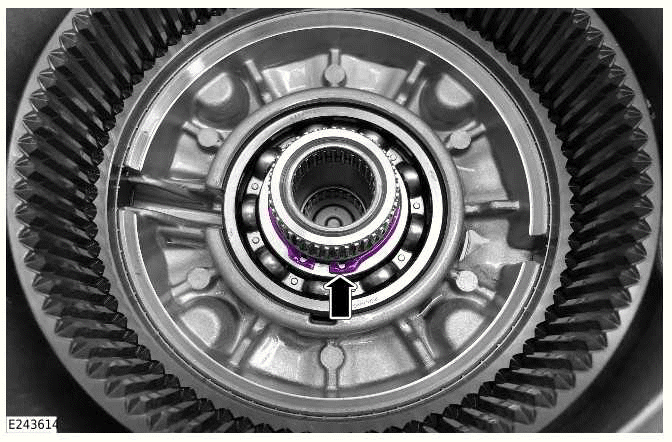

Remove and discard the circlip.

19.

CAUTION: Note the installed position of the component prior to removal.

Transfer Case Rear Output Seal

Remove the transfer differential assembly.

20.

Transfer Case Rear Output Seal

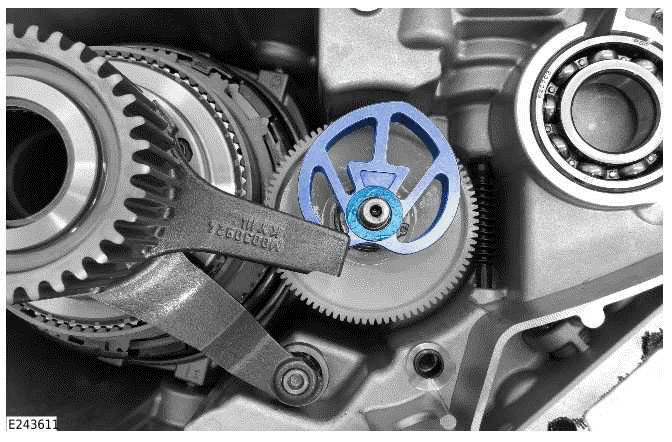

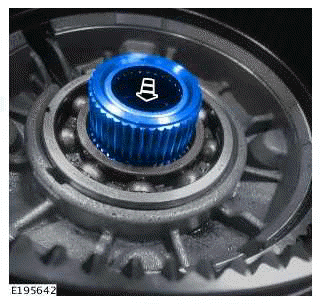

Install the special tool.

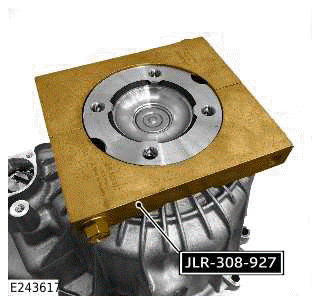

Install the Special Tool(s): JLR-308-927

21.

Transfer Case Rear Output Seal

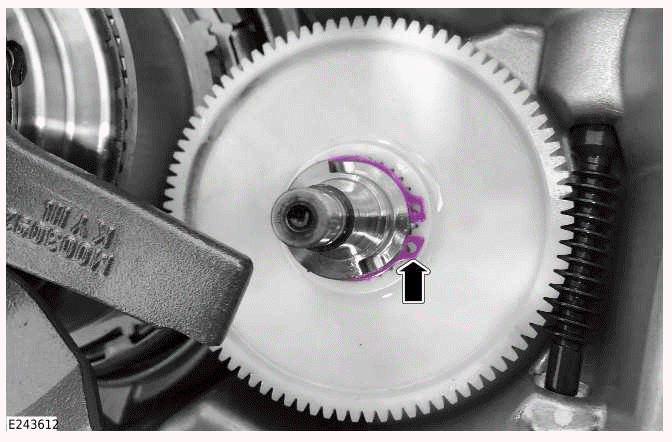

Remove and discard the circlip.

22.

CAUTION: Do not use excessive force when removing the flange assembly.

Transfer Case Rear Output Seal

Remove the rear output shaft flange.

23.

Transfer Case Rear Output Seal

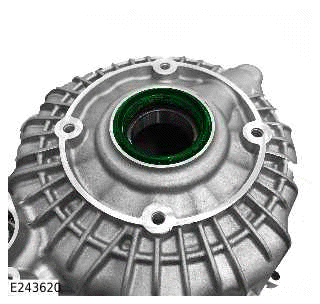

Remove and discard the seal.

INSTALLATION

1.

Transfer Case Rear Output Seal

2.

Transfer Case Rear Output Seal

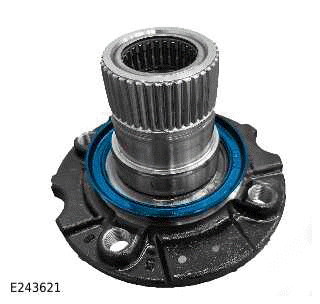

Make sure the transfer case flange seal cover is installed on the flange.

3.

NOTE: Check that the circlip is fully engaged.

Transfer Case Rear Output Seal

Install a new circlip.

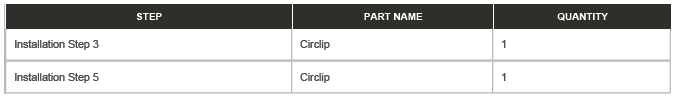

Renew Part: Circlip Quantity: 1.

4.

NOTE: Rotate the differential to engage the splines.

Transfer Case Rear Output Seal

Install the transfer differential assembly.

5.

NOTE: Check that the circlip is fully engaged.

Transfer Case Rear Output Seal

Install a new circlip.

Renew Part: Circlip Quantity: 1.

6.

NOTE: Make sure that the component is installed to the noted removal position.

Transfer Case Rear Output Seal

7.

Transfer Case Rear Output Seal

8.

Transfer Case Rear Output Seal

Install the transfer case chain assembly.

9.

CAUTION: Make sure that the component is clean and free of foreign material.

Transfer Case Rear Output Seal

Install the magnetic filter.

10.

Transfer Case Rear Output Seal

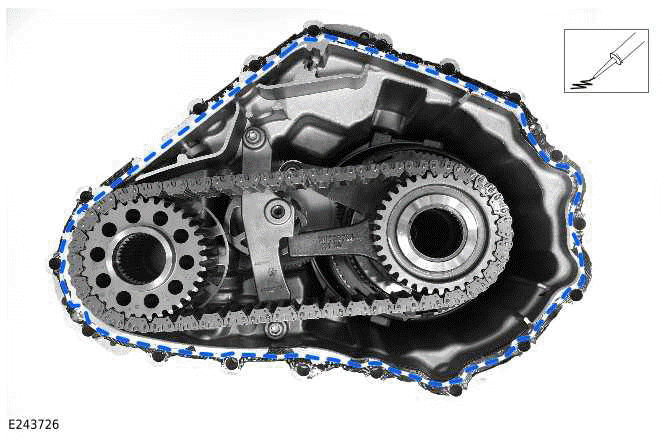

Apply a 2 mm bead of sealant to one surface of the transfer case mating face, as shown.

11.

CAUTION:

Transfer Case Rear Output Seal

Install the front half of the transfer case.

12.

CAUTION: Care must be taken when turning the transfer case over. The transfer case halves must not be allowed to separate.

With assistance, release the transfer case and secure with its transmission mating face down on a flat surface.

13.

CAUTION: Only tighten the bolts finger-tight at this stage.

Transfer Case Rear Output Seal

Install and tighten the 19 bolts finger tight.

14.

Transfer Case Rear Output Seal

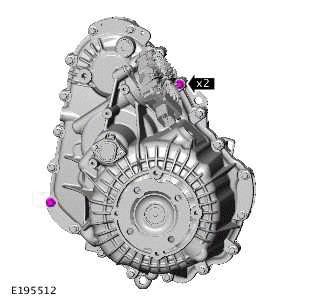

Tighten the 2 bolts to the correct torque.

Torque: 10Nm

15.

Transfer Case Rear Output Seal

Fully tighten the 19 bolts.

Torque: 35Nm

16.

Transfer Case Rear Output Seal

17.

Transfer Case Rear Output Seal

18.

Transfer Case Rear Output Seal

19.

NOTE: This step is only required if previously removed.

Transfer Case Rear Output Seal

20.

NOTE: This step is only required if previously removed.

Transfer Case Rear Output Seal

21. With assistance, release the transfer case from the flat surface.

22. Install the transfer case.
