Land Rover Defender: WIFI Antenna - Right Hand Drive
Land Rover Defender 2020-2024 Service Manual / Electrical / Information and Entertainment System / WIFI Antenna - Right Hand Drive
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Do not use excessive force to remove the component. Make sure that all fixings are fully released.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Make sure that the retaining clips are correctly installed.
1. Disconnect the startup battery ground cable.
2. Remove the instrument panel lower trim.
3.
.png)

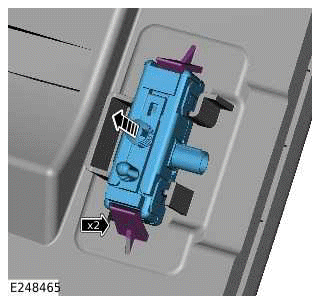

- Release the 2 clips.
- Remove the WiFi antenna.
INSTALLATION
1. Install the WiFi antenna.
2. Install the instrument panel lower trim.
3. Connect the startup battery ground cable.
