Land Rover Defender: Windshield Moulding
Land Rover Defender 2020-2025 Service Manual / Body and Paint / Glass, Frames and Mechanisms / Windshield Moulding
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Always protect paintwork and windows when removing exterior components.
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
1. Open the front door.
2.

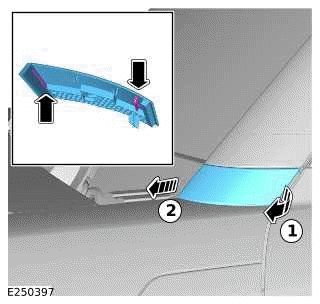

CAUTION: Take extra care not to damage the component.
.png)
- Carefully release the 2 clips.
- Remove the bolt cover.
3.

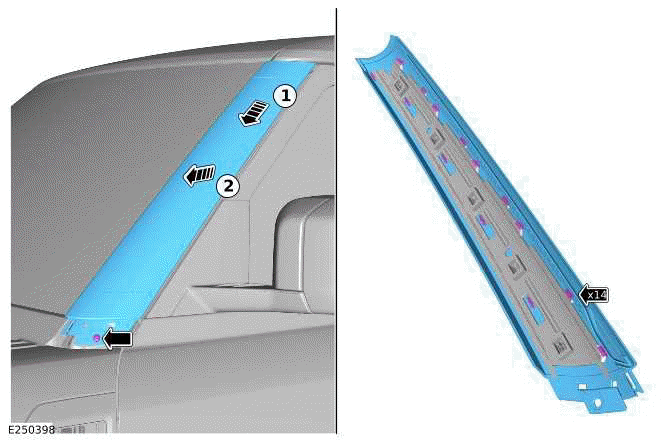

CAUTIONS:
- Take extra care not to damage the component.
- Do not use tools during this operation, removal of the component(s) must be completed by hand.
.png)
- Remove the bolt.
- Remove the windshield moulding.
INSTALLATION
1.

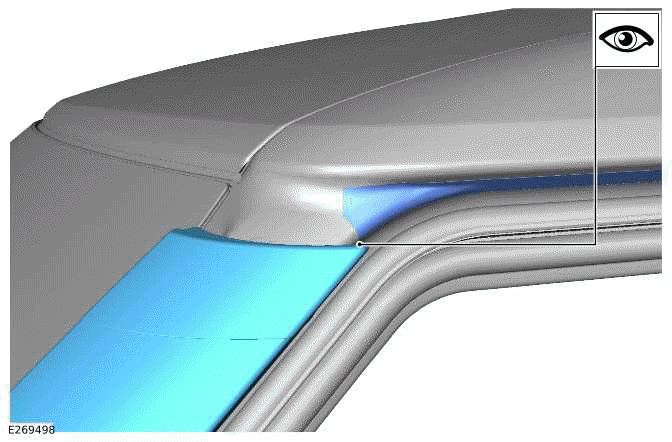

CAUTION: Take extra care not to damage the contrast roof finisher decal when installing the windshield moulding.
.png)
This step contains information for the following steps.
2.

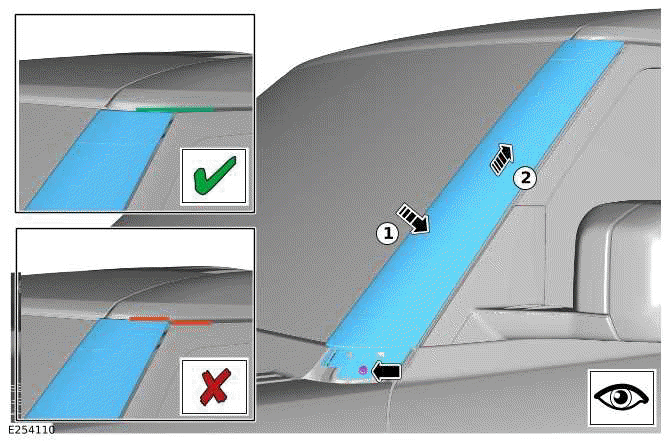

NOTE: Make sure the windshield moulding is correctly installed as illustrated.
.png)
- Install the windshield moulding to the 14 clips.
- Install and tighten the bolt.
Torque: 6Nm
3.
CAUTION: Take extra care not to damage the component.
Install the bolt cover to the 2 clips.
4. Close the front door.
