AIR SUSPENSION OVERLAY HARNESS INTRODUCTION

NOTES:

If after diagnosis the height sensor requires replacement and the area of wiring damage is localized to the height sensor connector, this overlay harness should be used,

1. Disconnect the battery ground cable.

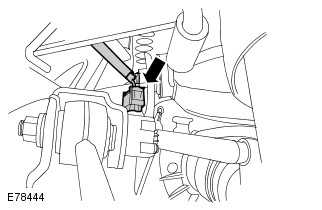

2. Disconnect the damaged height sensor electrical connector.

Wiring Harness - Description and Operation

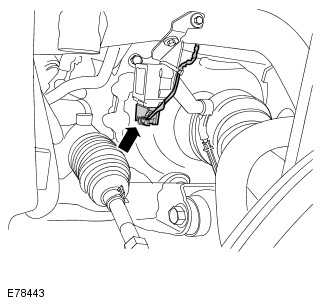

3. Unclip a sufficient length of the wiring harness to allow easy access during the repair.

Wiring Harness - Description and Operation

4. Remove the wiring harness insulation as required.

NOTES:

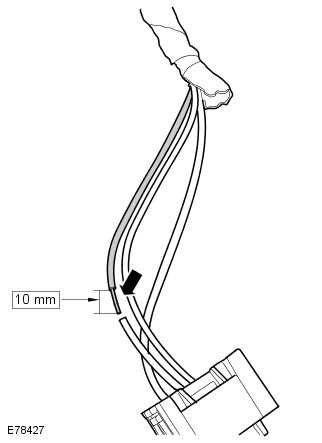

5. Cut the wire on the vehicle harness leading to cavity 1 of the height sensor connector in a suitable position. Then remove 10 mm (0.39 inch) of insulation. For connector location and pin identification, refer to the relevant connector:

In the Connector Details section of the relevant Electrical Library.

Wiring Harness - Description and Operation

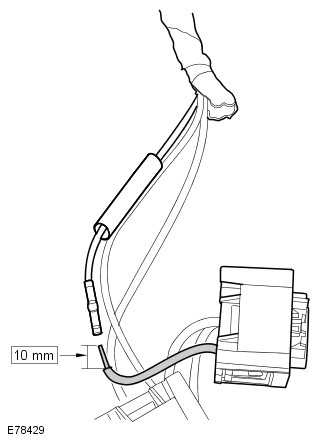

6. Slide over this wire a section of heat shrink sleeving.

Wiring Harness - Description and Operation

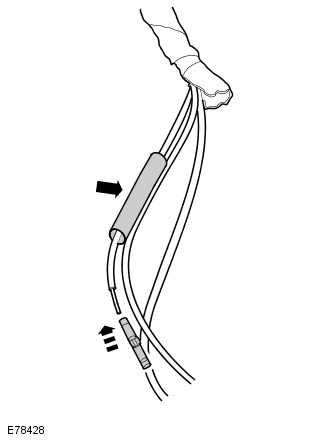

7. Using the inline connector supplied and the correct crimping tool set to the correct jaw size from the harness repair kit, crimp the connector to the wire.

NOTE: The overlay harness should be cut so that there is no additional length added to the overall length after repair.

8. Select the appropriate wire on the overlay harness that also goes to cavity 1 of the new connector. Cut the wire to the correct length and remove 10 mm (0.39 inch) of insulation.

Wiring Harness - Description and Operation

9. Insert the overlay wire into the connector and crimp in place.

CAUTION: Care must be taken when using the hot air applicator to avoid damage to surrounding areas.

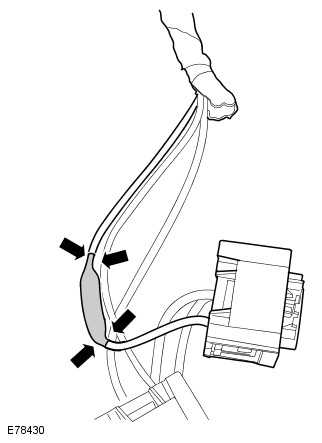

10. Slide the heatshrink over the connector and using a hot air applicator carefully apply the heat until the glue appears at both ends.

Wiring Harness - Description and Operation

11. Do the same process for the wires in cavities 4 and 5 of the connector. For connector location and pin identification, refer to the relevant connector:

In the Connector Details section of the relevant Electrical Library.

12. Discard the damaged connector/section of the harness.

13. Add suitable harness repair tape to the repaired area to within 10 mm (0.39 inch) of the new connector to complete the repair.

Wiring Harness - Description and Operation

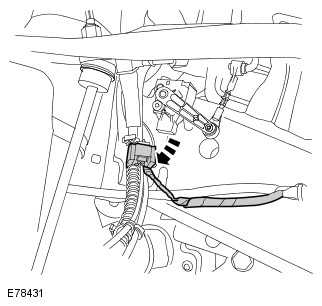

14. Correctly route/secure the harness and connect the new connector to the height sensor.

15. Connect the battery ground cable. For additional information, refer to Workshop manual section 414-00, Specifications - Battery Disconnect/Connect.

16. Clear any Diagnostic Trouble Code(s) (DTC) set in the Chassis Control Module (CHCM) using JLR approved diagnostic equipment and confirm correct operation of the system.
