Land Rover Defender: Air Suspension Compressor

REMOVAL AND INSTALLATION

GENERAL EQUIPMENT

EQUIPMENT NAME

2 mm punch

PART(S)

Air Suspension Compressor

REMOVAL

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

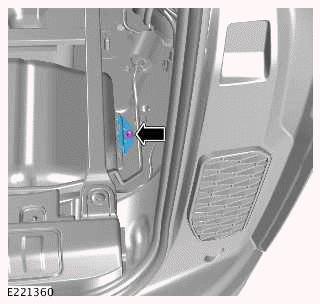

1. Remove the right loadspace trim panel.

2.

Air Suspension Compressor

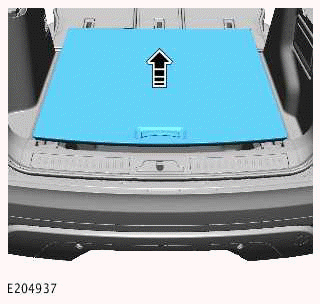

Remove the loadspace floor panel.

3.

NOTE: If equipped.

Air Suspension Compressor

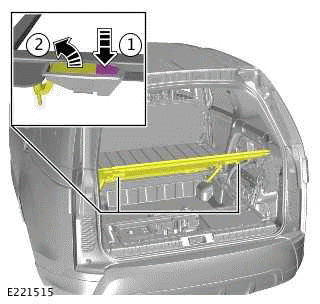

Open the loadspace rear trim panel.

4.

NOTE: If equipped.

Air Suspension Compressor

5.

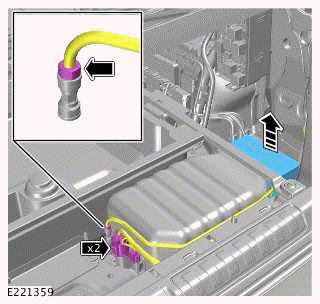

WARNING: A small amount of air pressure will be left in the air suspension system.

CAUTION: Do not reuse the air line connector. Always install a new air line connector every time it is released.

Air Suspension Compressor

6.

Air Suspension Compressor

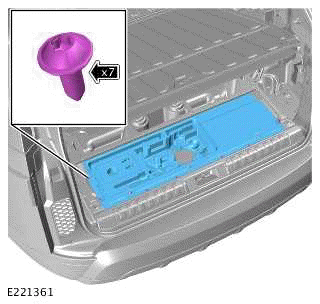

Remove the retaining bracket.

7.

Air Suspension Compressor

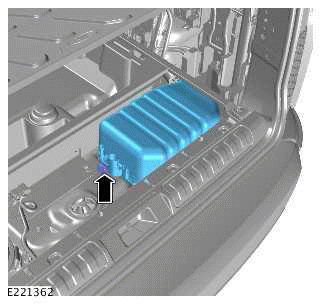

Remove the air suspension air supply unit from the vehicle.

8.

Air Suspension Compressor

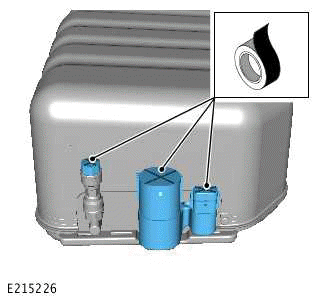

Using a suitable tape, cover the airline and electrical connector openings.

9.

Air Suspension Compressor

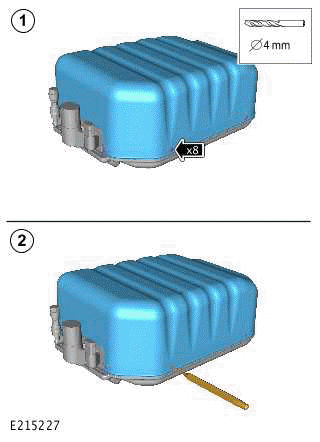

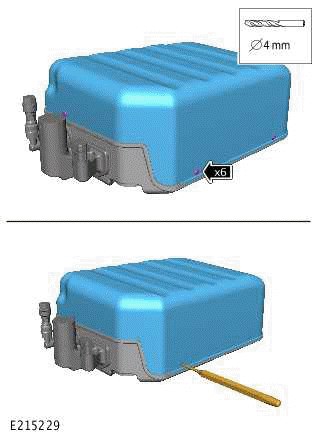

  1. Using a 4 mm drill, remove the head of the rivets.
  2. Using a suitable tool, release the rivet bodies.

    General Equipment: 2 mm punch

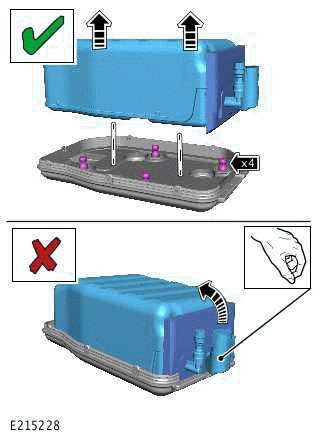

  3. Remove the outer cover.

10.

CAUTION: Do not pull on the suspension air supply unit connectors to release the clips.

Air Suspension Compressor

11.

Air Suspension Compressor

  1. Using a 4 mm drill, remove the head of the rivets.
  2. Using a suitable tool, release the rivet bodies.

    General Equipment: 2 mm punch

  3. Remove the inner cover.

12. Remove all drilling debris.

13.

CAUTION: Do not reuse the air line connector. Always install a new air line connector every time it is released.

Air Suspension Compressor

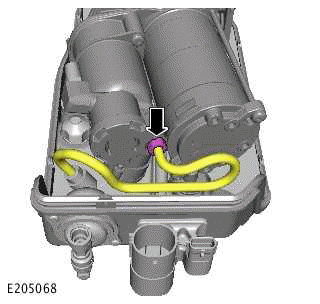

Disconnect the inner air line and discard the air line connector.

14.

Air Suspension Compressor

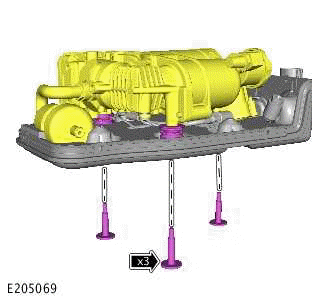

Remove the 3 mounting bolts.

15.

Air Suspension Compressor

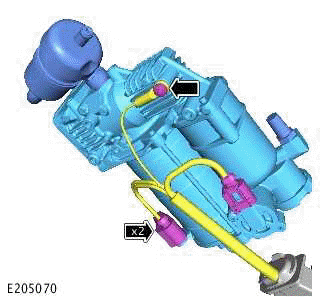

Disconnect the wiring harness.

INSTALLATION

1.

CAUTION: Make sure all drilling debris is removed before assembling the components.

Air Suspension Compressor

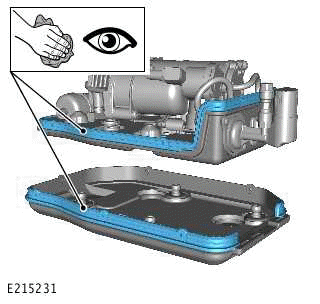

Clean and inspect the seals.

2.

3. Install the 3 mounting bolts.

Torque: 7Nm

4.

CAUTION: Do not reuse the air line connector. Always install a new air line connector every time it is released.

Connect the inner air line.

Renew Part: Air line connector(s) Quantity: 1.

Torque: 3.5Nm

5. Using new rivets measuring 4 x 12 mm, install the suspension air supply unit inner cover.

6.

7. Using new rivets measuring 4 x 12 mm, install the suspension air supply unit outer cover.

8. Install the air suspension compressor assembly.

Torque: 10.5Nm

9.

CAUTION: Do not reuse the air line connector. Always install a new air line connector every time it is released.

Connect the outer air line.

Renew Part: Air line connector(s) Quantity: 1.

Torque: 3.5Nm

10. Install the NVH material.

11. Install the loadspace floor panel.

12.

NOTE: If equipped.

13.

NOTE: If equipped.

Close the loadspace rear trim panel.

14. Install the right loadspace trim panel.
