COMPONENT LOCATION

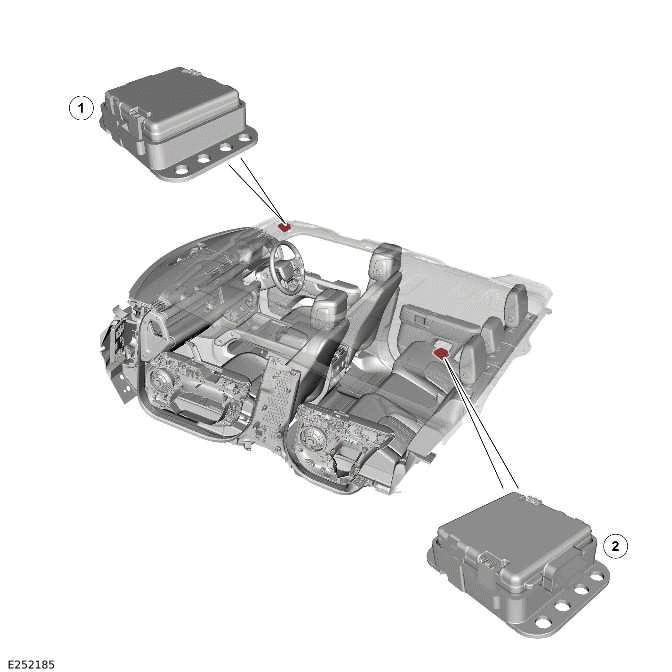

COMPONENT LOCATION - 1 OF 5
NOTES:
- Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD)
vehicle is similar.
- Vehicle with 5 doors is shown. Vehicle with 3 doors is similar.
- Volumetric sensor
- Instrument Panel Cluster (IPC)
- Immobilizer Antenna Unit (IAU)
- Driver Door Control Module (DDM)
- Ajar switch - Driver door
- Ajar switch - Rear right door
- Driver Rear Door Module (DRDM)
- Ajar switch - Rear left door
- Passenger Rear Door Module (PRDM)
- Ajar switch - Passenger door
- Passenger Door Control Module (PDM)
- Body Control Module (BCM)/ Gateway Control Module (GWM)
COMPONENT LOCATION - 2 OF 5
- Battery Back-Up Sounder (BBUS) - If equipped
- Left hood latch
- Horn - Left
- Hood safety latch
- Right hood latch
- Horn - Right
- Passive sounder - If equipped
COMPONENT LOCATION - 3 OF 5
NOTES:
- RHD vehicle is shown, LHD vehicle is similar.
- Vehicle with 5 doors is shown. Vehicle with 3 doors is similar.

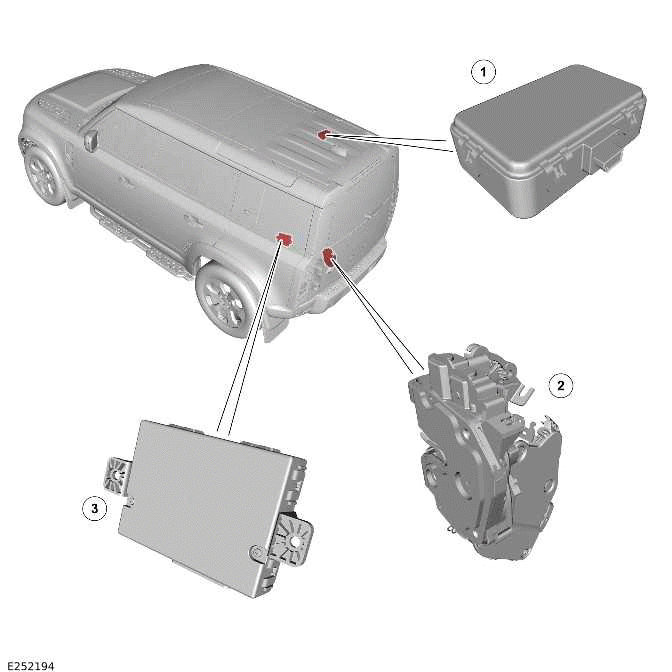

- Radio Frequency (RF) receiver
- Tailgate ajar latch
- Remote Function Actuator (RFA)
COMPONENT LOCATION - 4 OF 5
NOTES:
- RHD vehicle is shown, LHD vehicle is similar.
- Vehicle with 5 doors is shown. Vehicle with 3 doors is similar.

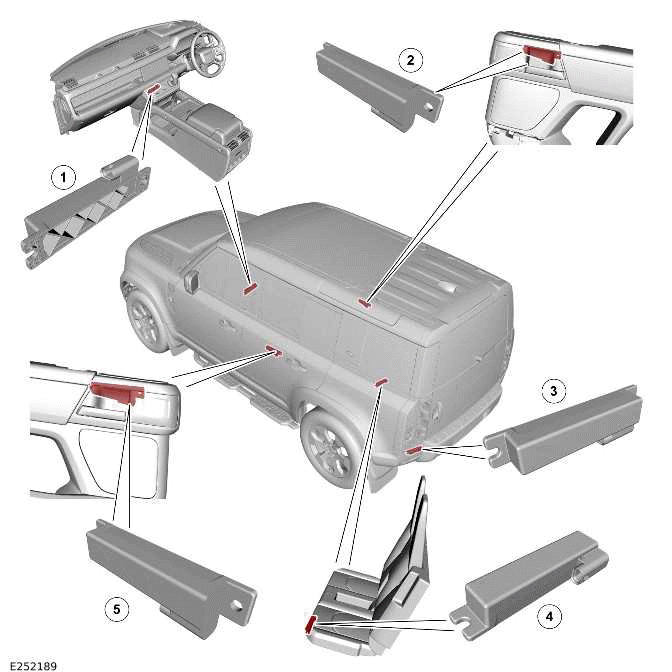

- Low Frequency (LF) antenna - Front passenger compartment
- LF antenna - Right passenger compartment
- LF antenna - Left luggage compartment
- LF antenna - Rear passenger compartment - Only for passive start system
- LF antenna - Left passenger compartment
COMPONENT LOCATION - 5 OF 5
NOTES:
- RHD vehicle is shown, LHD vehicle is similar.
- Vehicle with 5 doors is shown. Vehicle with 3 doors is similar.
- Passive entry transceiver - Front
- Passive entry transceiver - Rear
OVERVIEW
The active anti-theft system monitors all doors, hood and tailgate for
unauthorized opening. In some markets the antitheft
system also incorporates monitoring of the passenger compartment and tilt
sensing.
The active anti-theft system is controlled by the following body system control
modules:
- BCM/ GWM
- DDM
- PDM
- PRDM
- DRDM
- IPC
- RFA.
The BCM/ GWM is the main controller in the system. The BCM/ GWM controls the
following security functions, in
addition to other vehicle functions:
- Single locking, double locking (market dependant) and unlocking (both
central unlock and single point entry).
- Monitoring of the hood switch, door ajar switches and the tailgate ajar
switch of the Central Door Locking (CDL)
system.
- Passive Entry Passive Start (PEPS)system.
- Volumetric sensor.
- Smart key transponder reading.
- Security sounder - BBUS or passive sounder.
- Passive arming and disarming.
- Panic alarm function.
- Interior lighting.
Depending on vehicle configuration, 2 levels of vehicle anti-theft alarm are
available:
- Perimeter sensing mode - Monitors all opening panels.
- Perimeter with alarm sensing mode - Monitors the passenger compartment
for intrusion and it also incorporates a
tilt sensor to monitor when the vehicle is being moved.
NOTE:
Volumetric mode and tilt sensing are not available in certain markets.
Perimeter sensing mode
All apertures (doors, tailgate and hood) are monitored for ajar status (doors
ajar and latch status change).
A visual (through turn signal indicators) and audible alarm are emitted through
security sounder and vehicle horns
(market dependent) in the event of unauthorized access. The alarm is also
triggered in the event of an unauthorized
start request.
Smart key
The smart key provides the following functions:
- Unlock (central unlock or single point entry).
- Single lock and double lock (market dependant).
- Remote tailgate release.
- Approach lighting.
- Panic alarm.
The lock and unlock switches also control a 'lazy' lock and unlock feature.
The 'lazy' lock and unlock feature
automatically closes or opens the windows with an extended press of the
applicable switch. The 'lazy' lock and unlock
feature is only available in certain markets and is controlled in conjunction
with the door modules.
WARNING:
Never double lock the vehicle with any person or animal inside.
NOTE:
Double locking (DL) is only available in certain markets.
The smart key contains an emergency key. The emergency key can be used in the
event of failure of the smart key or
the startup battery to unlock the vehicle. The driver door handle contains a
mechanical key barrel which can be used
with the emergency key to access the vehicle. The emergency key to access the
vehicle does not disable the
perimeter sensing system. The visual and audible alarm is activated when the
door is unlocked/opened. To cancel the
alarm, the smart key must be held next to the IAU and the stop/start switch must
be operated.
Emergency locking
On the inside face of each door there is an emergency key aperture. The
aperture is used with the emergency key in
the event of a failure of the startup battery to lock the vehicle.
Remove the cover and insert the emergency key into the aperture to
mechanically lock each door in turn. The driver
door is always the last door to be locked. Please make sure that the emergency
key is removed from the emergency
key aperture before each door is closed.
