Land Rover Defender: Brake Caliper 6 Piston Fixed Caliper

REMOVAL AND INSTALLATION

GENERAL EQUIPMENT

Brake Caliper 6 Piston Fixed Caliper

PART(S)

Brake Caliper 6 Piston Fixed Caliper

REMOVAL

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

1. Raise and support the vehicle on a suitable 2 post lift.

2. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to activate the Integrated Power Brake assembly mode.

General Equipment: Jaguar Land Rover approved diagnostic equipment

3. Remove the wheel and tire.

4.

CAUTION: The brake pad wear sensor is easily damaged. Do not use a lever to remove the sensor.

NOTE: Left side only.

Brake Caliper 6 Piston Fixed Caliper

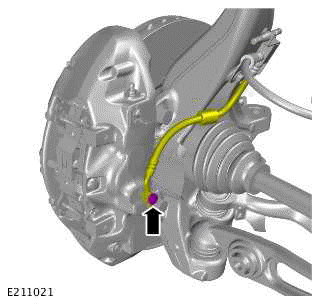

Disconnect and release the brake pad wear sensor.

5.

WARNING: Be prepared to collect escaping fluid.

CAUTION: If the brake hose banjo bolt has been loosened or removed, a new brake hose assembly must be installed.

Brake Caliper 6 Piston Fixed Caliper

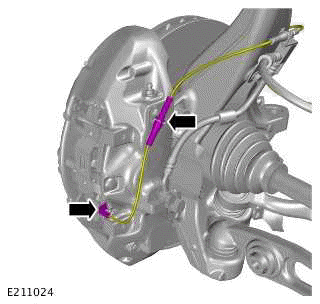

Disconnect the brake hose from the brake caliper.

6.

NOTE: Only do this step if a new brake caliper is to be installed.

If a new brake caliper is to be installed, remove the brake pads.

7.

Brake Caliper 6 Piston Fixed Caliper

8.

NOTE: Do not disassemble further if the component is removed for access only.

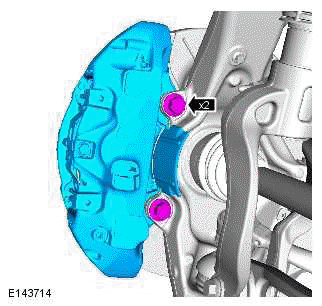

Brake Caliper 6 Piston Fixed Caliper

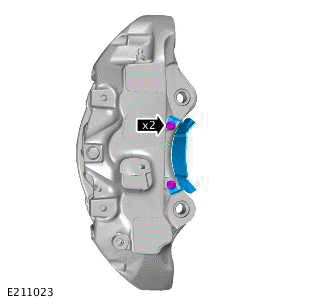

Remove the cooling scoop.

INSTALLATION

1.

Brake Caliper 6 Piston Fixed Caliper

Install the cooling scoop.

Torque: 4Nm

2.

CAUTION: Make sure that new bolts are installed.

Brake Caliper 6 Piston Fixed Caliper

3.

NOTE: This step should only be performed when installing a new brake caliper.

If a new brake caliper is to be installed, install the brake pads.

4.

CAUTION: Make sure that a new flexible brake hose assembly is to be installed.

Install a new brake hose.

Renew Part: Brake hose Quantity: 1.

5.

Brake Caliper 6 Piston Fixed Caliper

Install and secure the brake pad wear sensor.

6. Bleed the brake system.

7. Use the JLR approved diagnostic equipment to deactivate the Integrated Power Brake assembly mode.

General Equipment: Jaguar Land Rover approved diagnostic equipment

8. Use the JLR approved diagnostic equipment to complete the Leakage and Air Monitoring test to the Integrated Power Brake.

General Equipment: Jaguar Land Rover approved diagnostic equipment

9. Install the wheel and tire.
