Land Rover Defender: Canvas Roof Guide Rails
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Roof Opening Panel / Canvas Roof Guide Rails
REMOVAL AND INSTALLATION
REMOVAL
WARNING: Make sure the ignition is OFF before carrying out this procedure.
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Remove the canvas roof outer canvas.
2.
.png)

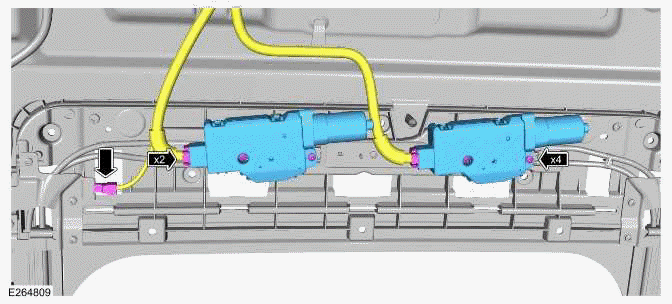

- Disconnect the 3 electrical connectors.
- Remove the 4 bolts.
- Remove the 2 motors.
3.
.png)

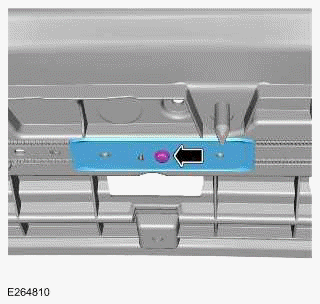

- Remove the screw.
- Remove the cover.
4.
NOTE: This step requires the aid of 3 technicians.
.png)

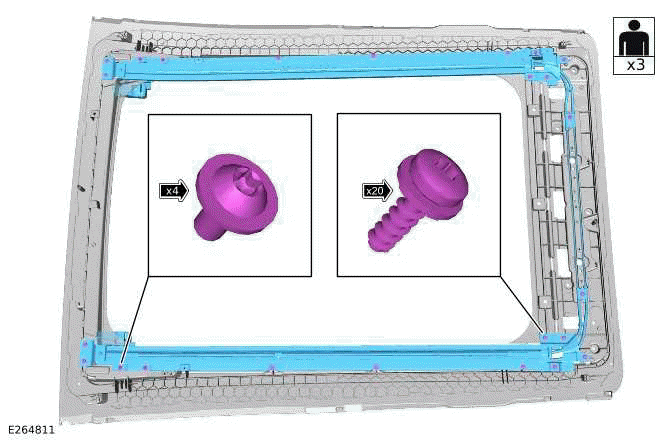

- Remove the 4 bolts.
- Remove the 20 screws.
- With assistance remove the canvas roof guide rails.
INSTALLATION
1.
NOTE: This step requires the aid of 3 technicians.
.png)
- With assistance install the canvas roof guide rails.
- Install and tighten the 20 screws.
Torque: 3.5Nm
- Install and tighten the 4 bolts.
Torque: 4Nm
2.
.png)
- Install the cover.
- Install and tighten the screw.
Torque: 4Nm
3.
.png)
- Install the 2 motors.
- Install and tighten the 4 bolts.
Torque: 4Nm
- Connect the 3 electrical connectors.
4. Install the canvas roof outer canvas.
5.
- Initialization and teaching the canvas roof motors:
- Close the roof and push the button during 10 seconds after full closing.
- After initialization, open the roof in full open position and close the roof by pressing and holding down the button until the full closure.
