Land Rover Defender: Control Diagram

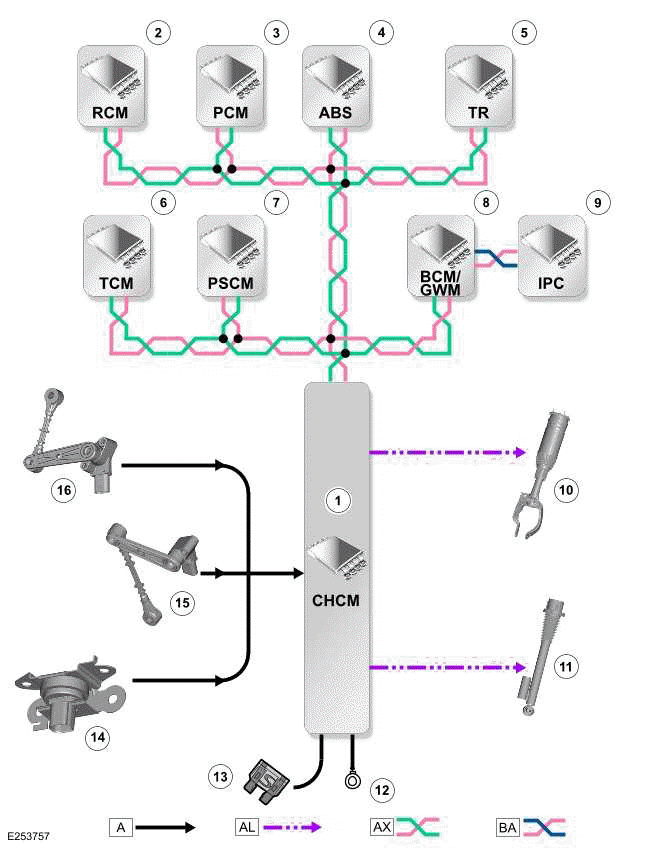

Control Diagram 1 of 2 - Adaptive Damping

Description and Operation

A = HARDWIRED:
AL = PWM:
AX = FLEXRAY:
BA = HS CAN HUMAN MACHINE INTERFACE (HMI) SYSTEMS BUS.

  1. CHCM
  2. RCM
  3. Powertrain Control Module (PCM)
  4. ABS
  5. Terrain Response switchpack (TR) control module
  6. Transmission Control Module (TCM)
  7. Power Steering Control Module (PSCM)
  8. Body Control Module (BCM)/ Gateway Module A (GWM)
  9. IPC
  10. Front shock absorber (quantity 2)
  11. Rear shock absorber (quantity 2)
  12. Ground
  13. Power supply
  14. Accelerometer (quantity 3)
  15. Air suspension rear height sensor (quantity 2)
  16. Air suspension front height sensor (quantity 2)

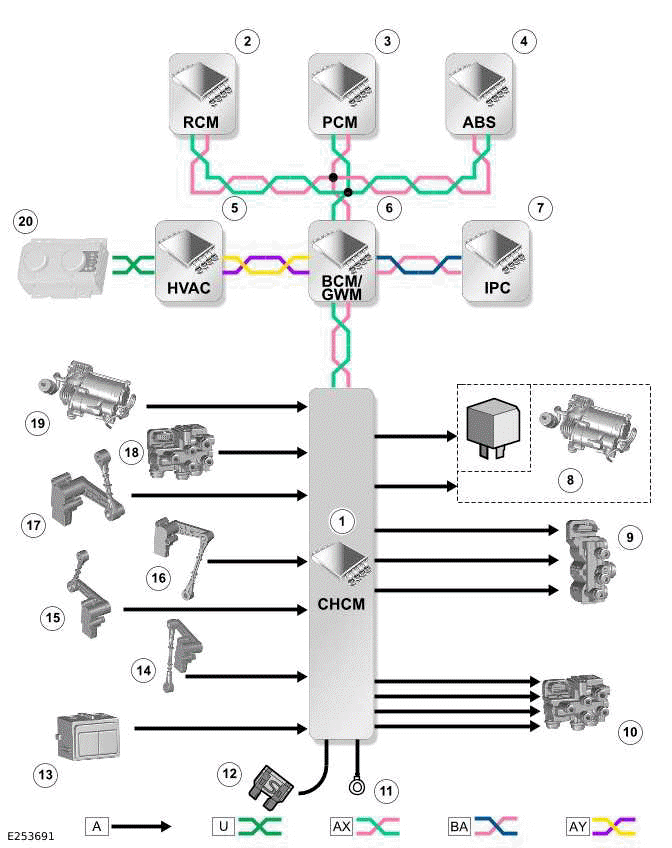

Control Diagram 2 of 2 - Air Suspension

Description and Operation

A = HARDWIRED:
U = CAN PRIVATE SYSTEMS BUS:
AX = FLEXRAY:
AY = HS CAN POWER MODE ZERO SYSTEMS
BUS BA = HS CAN HMI SYSTEMS BUS.

  1. CHCM
  2. RCM
  3. PCM
  4. ABS
  5. HVAC Control Module (HVAC)
  6. BCM/ GWM
  7. IPC
  8. Suspension air supply unit
  9. Front valve block
  10. Rear valve block
  11. Ground
  12. Power supply
  13. Air suspension rear switchpack - luggage compartment
  14. Rear right height sensor
  15. Front right height sensor
  16. Rear left height sensor
  17. Front left height sensor
  18. Pressure sensor - rear valve block
  19. Temperature sensor - suspension air supply unit
  20. Air suspension switchpack - ICIMA
