Land Rover Defender: DAB3 Antenna Amplifier - 110
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Remove the left loadspace trim panel.
3.

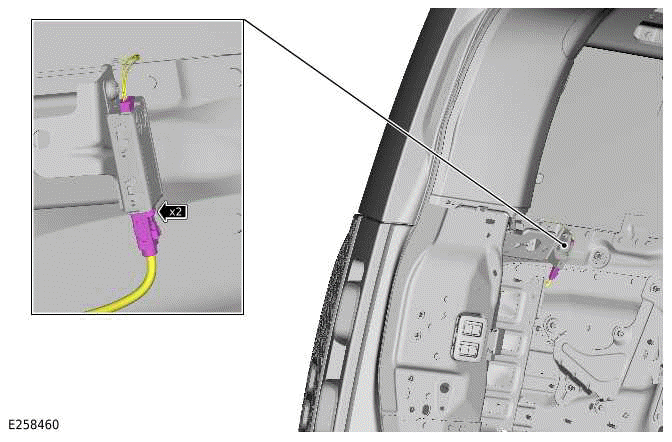

Disconnect the 2 electrical connectors.
4.

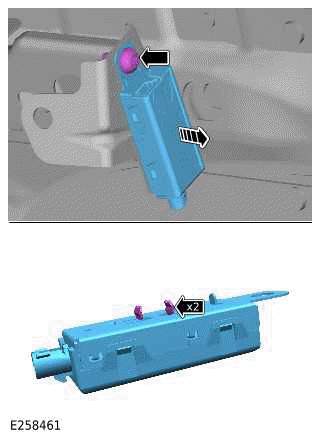

- Remove the bolt.
- Release the clip from the bracket.
- Remove the DAB3 antenna.
INSTALLATION
1.
NOTE:
Make sure that the component is correctly located.
- Install the clip.
- Install the DAB3 antenna.
- Install and tighten the bolt.
Torque: 3Nm
- Connect the 2 electrical connectors to the DAB3 antenna.
2. Install the left loadspace trim panel.
3. Connect the startup battery ground cable.
