Land Rover Defender: Warning Devices - Component Location

COMPONENT LOCATION

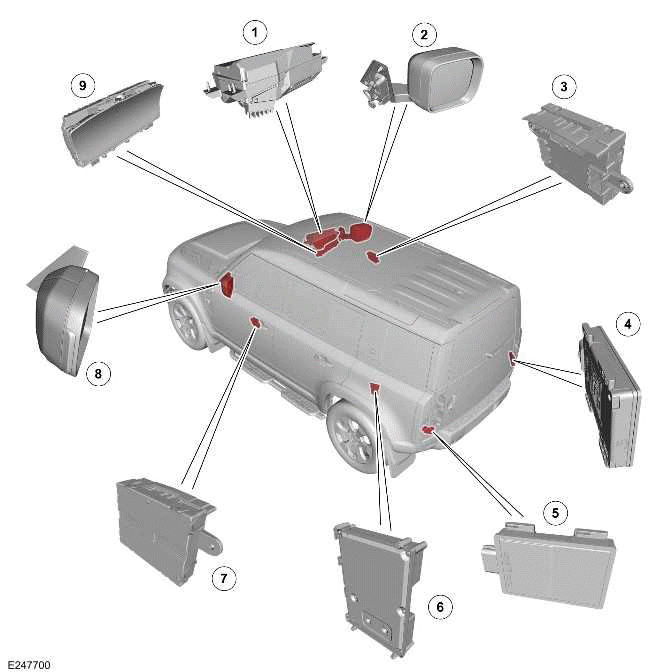

COMPONENT LOCATION - 1 OF 6 - BLIND SPOT ASSIST

NOTES:

Warning Devices

  1. Head Up Display (HUD)
  2. Approaching vehicle lamp - Right door mirror
  3. Driver Door Control Module (DDM)
  4. Side Obstacle Detection Control Module - Right (SODR)
  5. Side Obstacle Detection Control Module - Left (SODL)
  6. Audio Amplifier Control Module (AAM)
  7. Passenger Door Control Module (PDM)
  8. Approaching vehicle lamp - Left door mirror
  9. Instrument Panel Cluster (IPC)

COMPONENT LOCATION - 2 OF 6 - REVERSE TRAFFIC DETECTION

NOTES:

Warning Devices

  1. Touchscreen (TS)
  2. IPC
  3. SODR
  4. Rear view camera
  5. SODL
  6. AAM
  7. Front Infotainment Control Module (IGM / ICCM)
  8. Near Field Sensing Module (NFSM)
  9. Integrated Control Panel (FCIM)

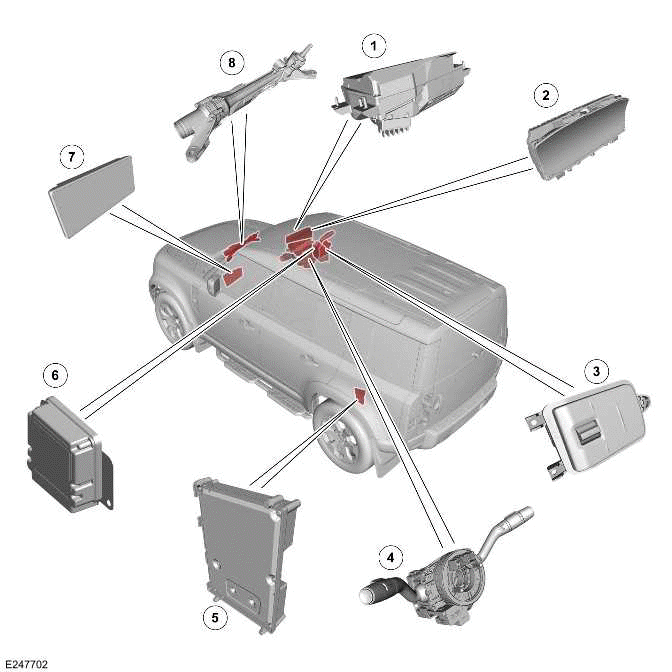

COMPONENT LOCATION - 3 OF 6 - LANE KEEP ASSIST

NOTES:

Warning Devices

  1. HUD
  2. IPC
  3. Steering wheel switch - Right
  4. Steering Wheel Module (SWM)
  5. AAM
  6. Driver Assistance Domain Controller (DADC)
  7. TS
  8. Power Steering Control Module (PSCM)

COMPONENT LOCATION - 4 OF 6 - TRAFFIC SIGN RECOGNITION

NOTES:

Warning Devices

  1. Image Processing Module 'A' (IPMA)
  2. HUD
  3. IPC
  4. IGM / ICCM

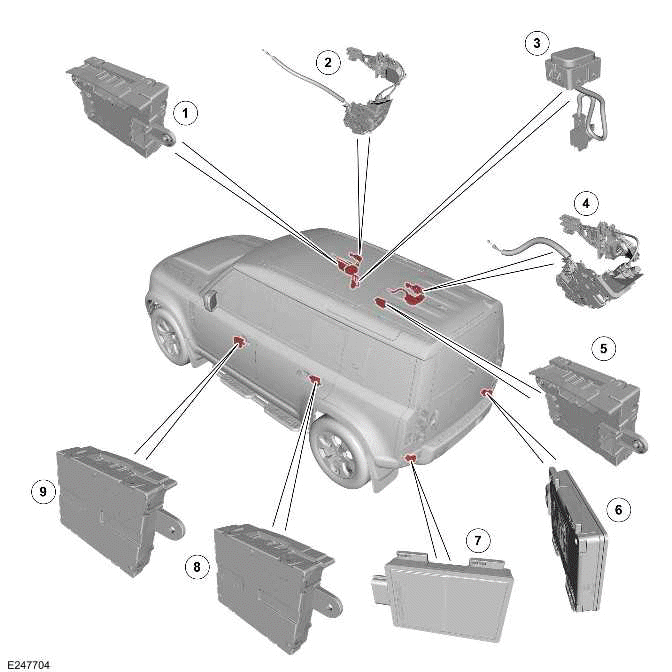

COMPONENT LOCATION - 5 OF 6 - CLEAR EXIT DETECTION SYSTEM

NOTES:

Warning Devices

  1. DDM
  2. Front door ajar switch (quantity 2)
  3. Clear Exit Detection System (CEDS) Light Emitting Diode (LED) indicator (quantity 4) (If equipped)
  4. Rear door ajar switch (quantity 2) (If equipped)
  5. Driver Rear Door Module (DRDM)
  6. SODR
  7. SODL
  8. Passenger Rear Door Module (PRDM)
  9. PDM

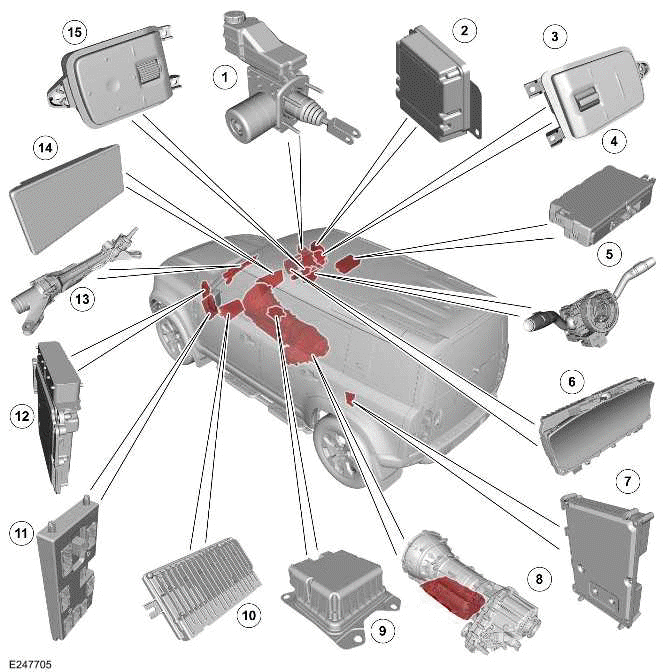

COMPONENT LOCATION - 6 OF 6 - DRIVER CONDITION MONITOR

NOTES:

Warning Devices

  1. Integrated power brake
  2. DADC
  3. Steering wheel switch - Right
  4. Seat Module - Driver/Passenger/Rear - Left/Right (DSM)
  5. SWM
  6. IPC
  7. AAM
  8. Transmission Control Module (TCM)
  9. Restraints Control Module (RCM)
  10. NFSM
  11. Body Control Module (BCM)/ Gateway Control Module (GWM)
  12. Powertrain Control Module (PCM)
  13. PSCM
  14. TS
  15. Steering wheel switch - Left
