Land Rover Defender: Drive Pinion Seal
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
100-012
Slide Hammer
100-012-01
Slide Hammer Adapter
204-266
Adapter for 204-265
204-269A
Flange remover forcing screw
205-053
Retainer, Differential Pinion Flange
307-520
Installer, Output Shaft Seal
JLR-205-1014
Remover/Installer, Differential Pinion Flange
JLR-205-1015A

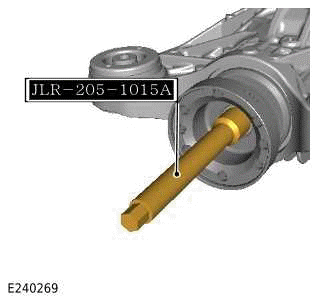

Installer, Halfshaft
JLR-205-1031
Remover, Differential Pinion Seal
JLR-205-998
Installer, Rear Differential Seal
REMOVAL
WARNING:
Be prepared to collect escaping oil.
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Drain the rear differential oil.
3. Remove the rear driveshaft.
4.

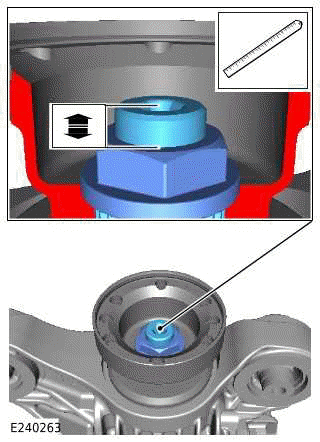

Measure the distance between the top surface of the pinion nut and the top
surface of the pinion shaft.
5.

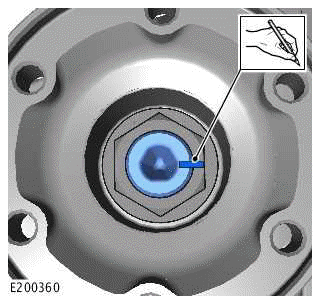

Mark the pinion nut in relation to the pinion shaft.
6.

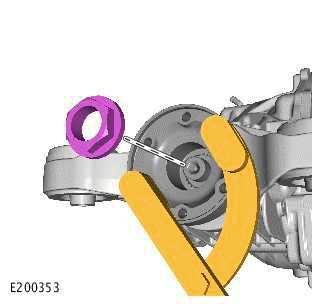

- Install the special tool to prevent the pinion from rotating when
removing the pinion nut.

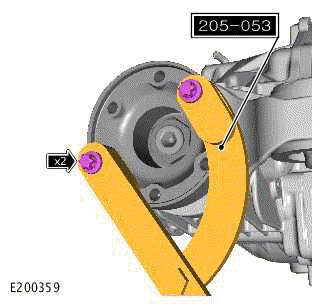

Special Tool(s): 205-053
7.

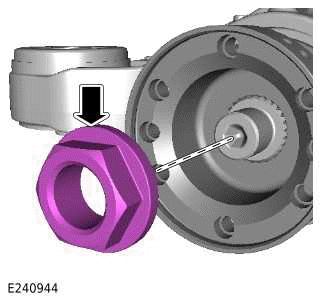

Remove the pinion nut.
8. Remove the special tool.
Special Tool(s): 205-053
9.

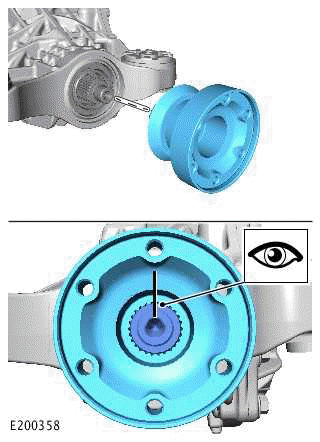

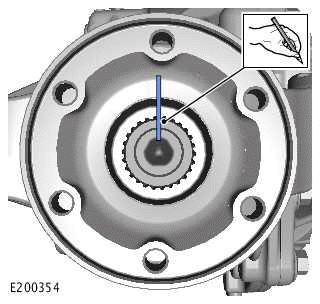

Mark the position of the pinion flange in relation to the pinion shaft.
10.
11.

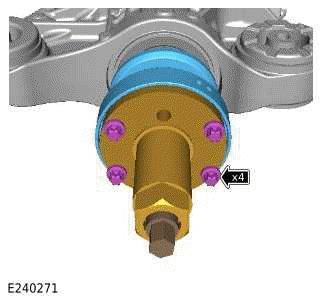

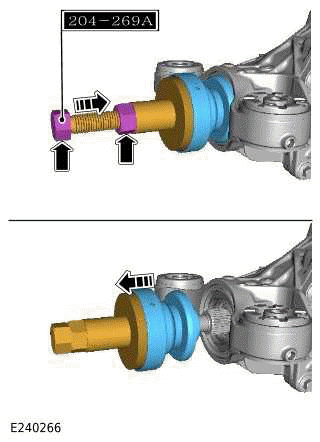

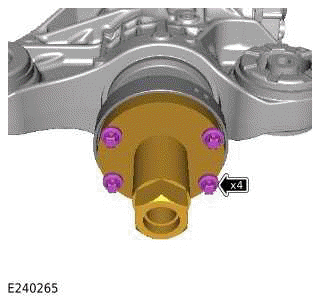

Install the special tools to the pinion flange.
12.
13.
14.

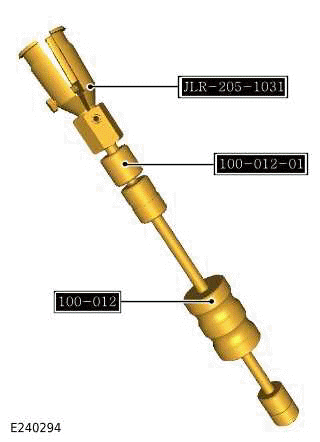

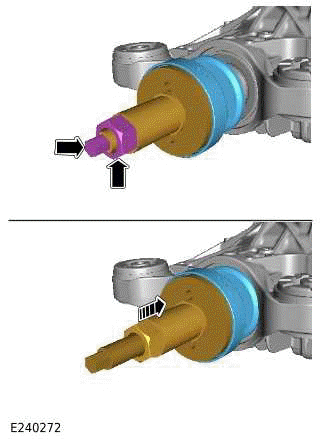

- Install the special tool and tighten the bolt until the jaws are fully
engaged with the pinion seal.

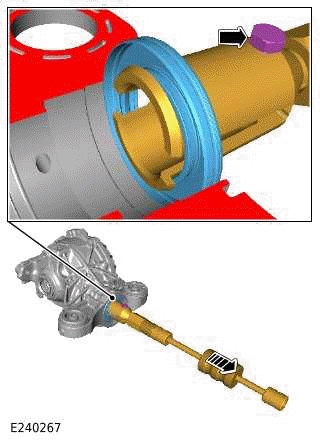

- Use the special tools to remove the pinion seal.
15.
CAUTION:
Make sure the differential pinion bearings are not contaminated.

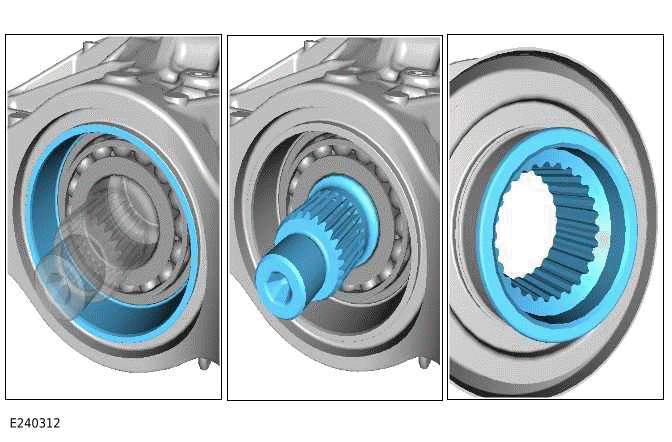

- Clean and inspect the differential case to differential pinion seal
mating face.
- Clean and inspect the pinion shaft splines and threads.
- Clean and inspect the pinion flange splines.
INSTALLATION
1.
2.
- Apply thread locking fluid to splines.
- Install the pinion flange. Make sure the marks are correctly aligned.
3.
4.
5.

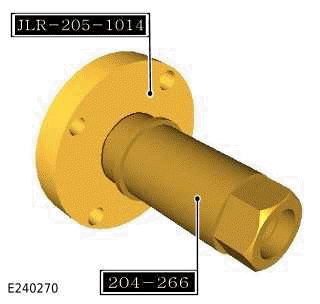

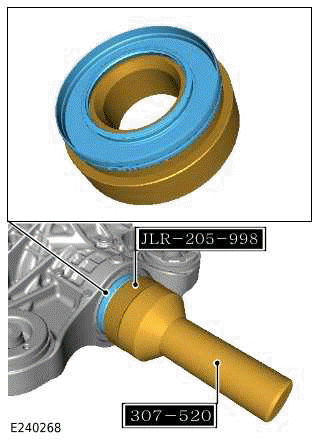

Install the special tools to the pinion flange.
6.

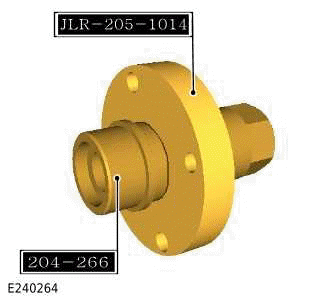

- Use the special tools to install the pinion flange.
- Remove the special tools.
7.
Install the special tool.
Special Tool(s): 205-053
8.
CAUTION:
- Make sure that the line scribed on the pinion nut aligns with the
line on the pinion shaft.
- Never under tighten the pinion nut.
- Never over tighten the pinion nut by more than 5 degrees past the
scribed lines.
- Apply thread locking fluid to threads.
- Install and tighten the pinion nut.
- Check the measurement from the top surface of the pinion nut and the top
surface of the pinion shaft
is the same as in the removal step.
- Make sure the pinion flange has no end float and is free to rotate.
9. Remove the special tool.
10. Refill the rear differential.
11. Install the rear driveshaft.
