Land Rover Defender: Front Drive Axle/Differential

Land Rover Defender 2020-2024 Service Manual / Chassis / Driveline / Front Drive Axle/Differential

SPECIFICATIONS

Lubricants

NOTE: Do not use any lubricant other than that specified

Front Drive Axle/Differential

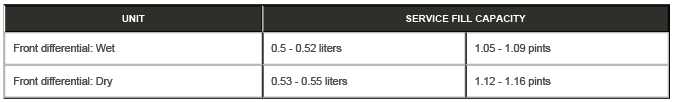

Capacities

Front Drive Axle/Differential

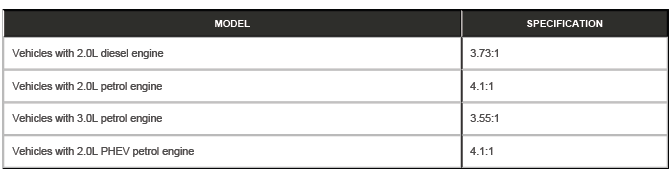

Reduction Ratio

Front Drive Axle/Differential

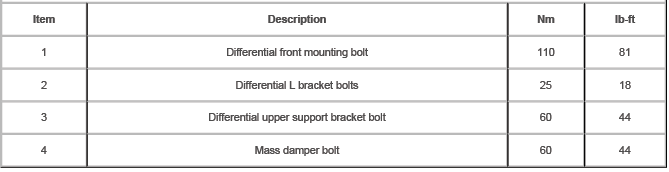

Torque Specifications

COMPONENT TORQUE LOCATION

Front Drive Axle/Differential

Front Drive Axle/Differential

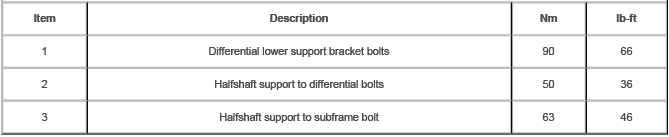

Torque Specifications

NOTE: Numbers with a green background are a single use component.

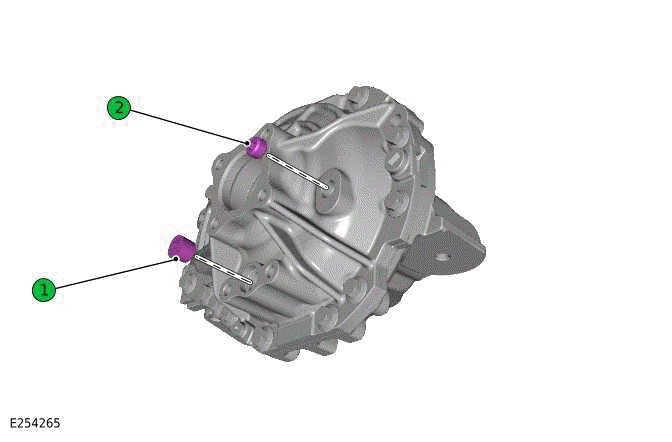

COMPONENT TORQUE LOCATION

Front Drive Axle/Differential

Front Drive Axle/Differential

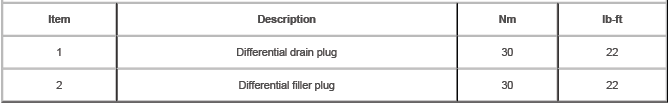

Torque Specifications

NOTE: Numbers with a green background are a single use component.

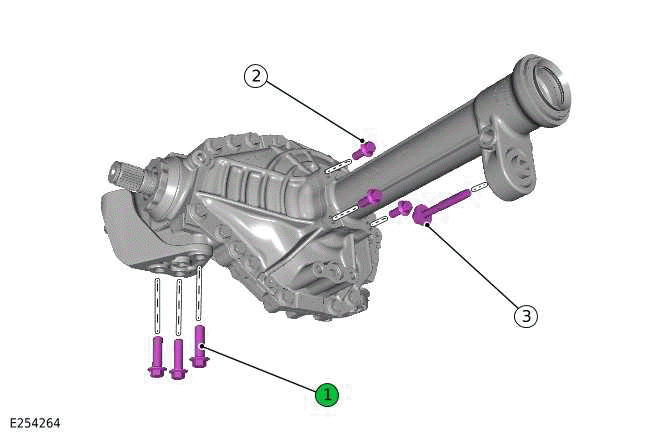

COMPONENT TORQUE LOCATION

Front Drive Axle/Differential

Front Drive Axle/Differential
