Land Rover Defender: Foldable Pet Carrier  - 110

FOLDABLE PET CARRIER - 110, PART NUMBER: VPLCS0520

REMOVAL AND INSTALLATION

WARNINGS:

NOTE: To clean the foldable pet carrier, wipe down with a clean damp cloth.

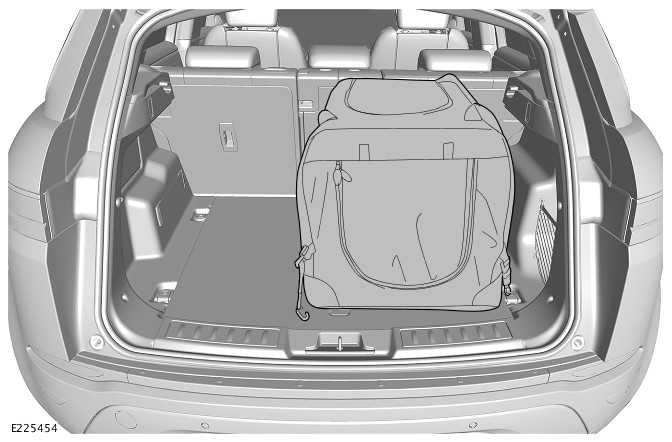

Foldable Pet Carrier

Foldable Pet Carrier

INSTALLATION

1.

Foldable Pet Carrier

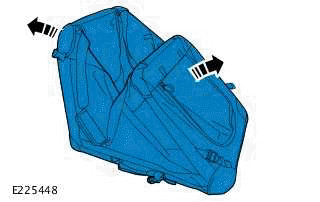

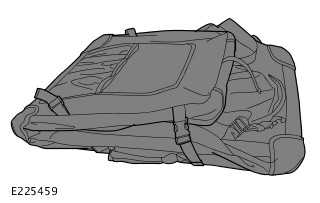

Unclip the 2 buckles either side of the foldable pet carrier and unfold as shown.

2.

Foldable Pet Carrier

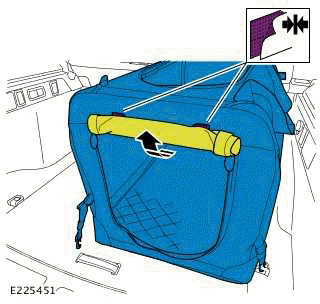

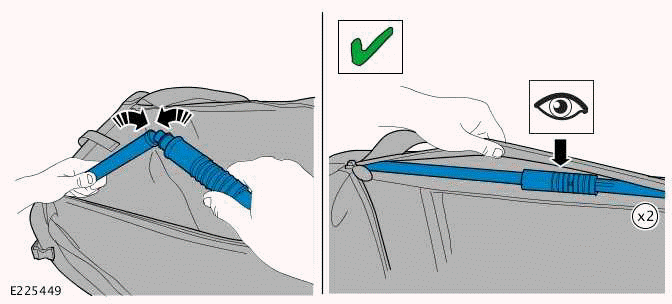

Clip the 2 support bars together as shown.

3.

NOTE: The foldable pet carrier can be positioned both longitudinally and transversely. This is detailed in later steps.

Foldable Pet Carrier

To use longitudinally, place the foldable pet carrier in the loadspace as shown.

4.

CAUTION: Make sure the straps are tight by pulling the strap as shown.

Foldable Pet Carrier

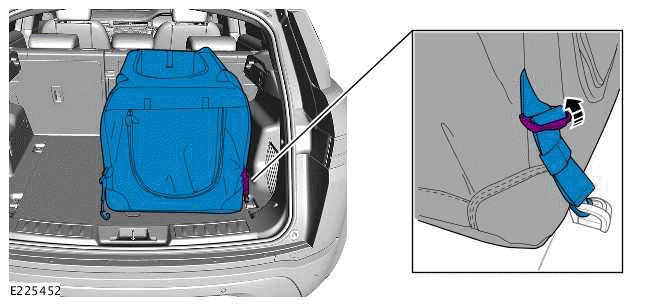

Attach the front foldable pet carrier strap to the loadspace D-loop.

5.

Foldable Pet Carrier

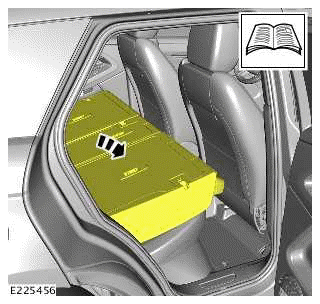

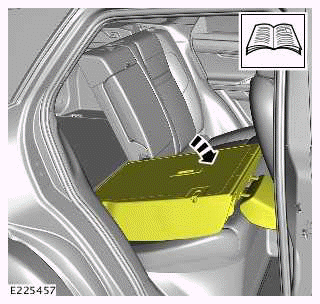

Lower the second row seat to access the foldable pet carrier rear strap.

6.

CAUTION: Make sure the straps are tight by pulling the strap as shown.

Foldable Pet Carrier

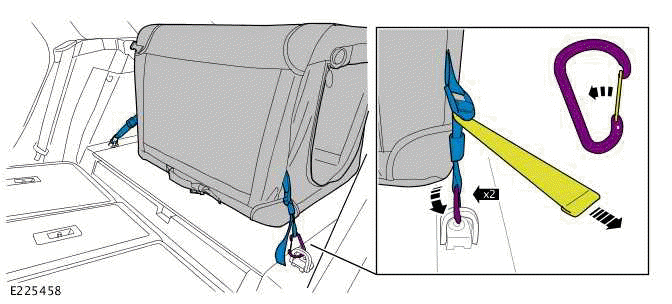

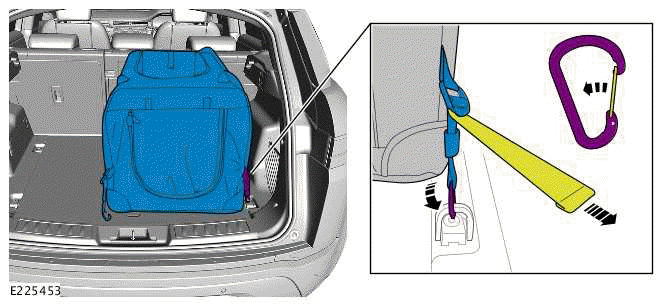

Attach the rear foldable pet carrier strap to the loadspace D-loop anchor points.

7. Raise the second row seat.

8.

Foldable Pet Carrier

The front and side doors of the foldable pet carrier can be opened by un-zipping and rolling the flap up and securing with the velcro tabs as shown.

9.

Foldable Pet Carrier

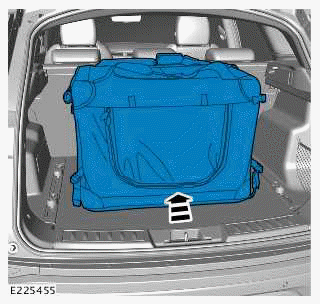

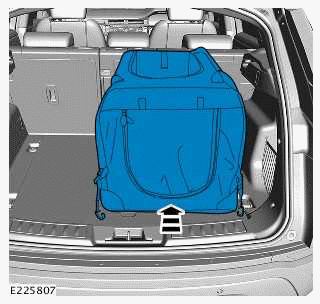

To use transversely, place the foldable pet carrier in the loadspace as shown.

10.

Foldable Pet Carrier

Lower the second row seats to access the foldable pet carrier rear straps.

11.

CAUTION: Make sure the straps are tight by pulling the strap as shown.

Foldable Pet Carrier

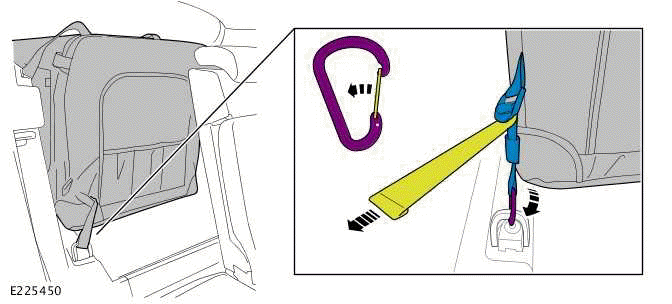

Attach the foldable pet carrier straps to the loadspace D-loop anchor points.

12. Raise the second row seats.

13.

Foldable Pet Carrier

To remove the foldable pet carrier loosen the straps as shown and reverse the install procedure.
