Land Rover Defender: Front Row Seat Backrest Cover

REMOVAL AND INSTALLATION

GENERAL EQUIPMENT

Front Row Seat Backrest Cover

PART(S)

Front Row Seat Backrest Cover

REMOVAL

WARNINGS:

NOTES:

The following step(s) applies to: All vehicles

1. Make the SRS system safe.

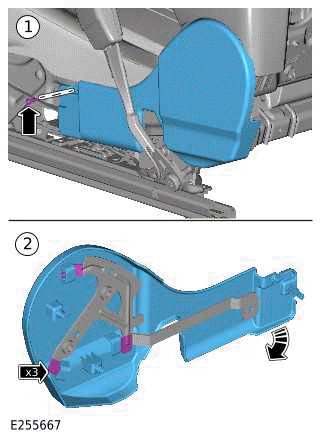

2. Remove the front row seat head restraint.

3.

Front Row Seat Backrest Cover

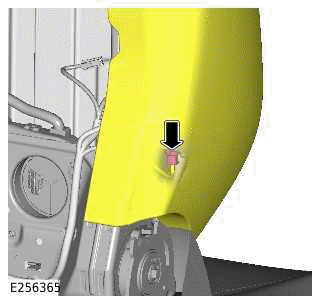

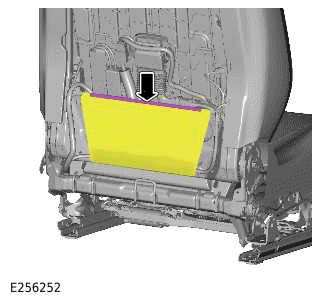

Release the seat backrest cover rear clip.

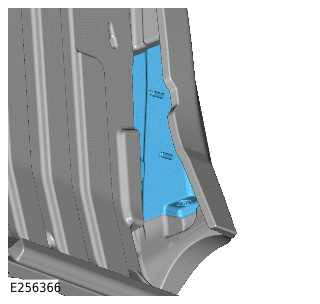

4.

Front Row Seat Backrest Cover

5.

Front Row Seat Backrest Cover

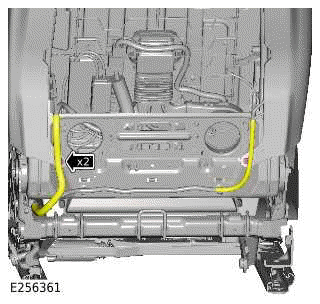

Release the 2 wiring harness clips.

6.

NOTE: If equipped.

Front Row Seat Backrest Cover

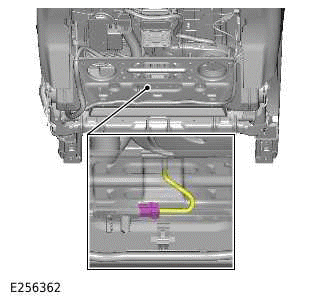

Disconnect the seat backrest cover heater element electrical connector.

7.

NOTE: Repeat the step for the other side.

Front Row Seat Backrest Cover

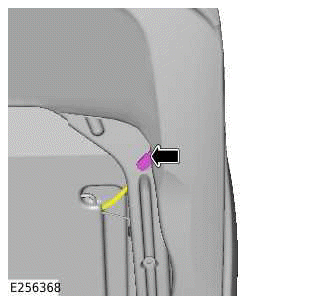

Release the upper seat backrest cover tension strap.

8.

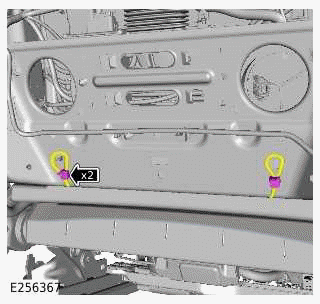

Front Row Seat Backrest Cover

Release the 2 lower seat backrest cover tension straps.

9.

NOTE: Repeat the step for the other side.

Front Row Seat Backrest Cover

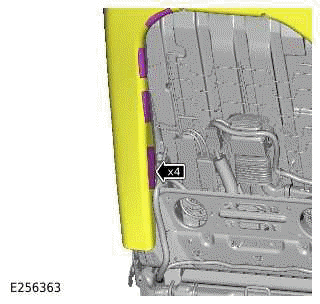

Release the 4 front row seat backrest cover clips.

10.

Front Row Seat Backrest Cover

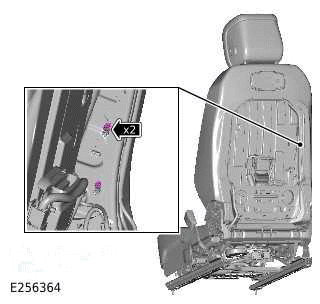

Remove the 2 side airbag nuts.

11.

Front Row Seat Backrest Cover

Disconnect the side airbag electrical connector.

12.

Front Row Seat Backrest Cover

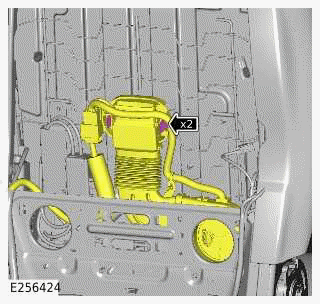

Release the 2 blower motor clips.

13.

Front Row Seat Backrest Cover

Remove the side airbag.

14.

CAUTION: Care must be taken not to damage the seat cover.

Front Row Seat Backrest Cover

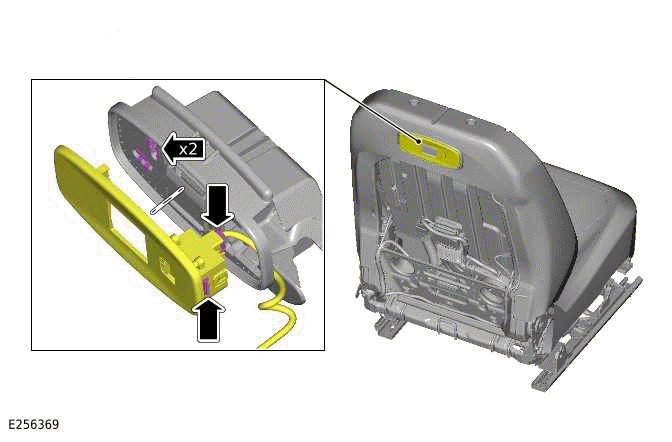

15.

Front Row Seat Backrest Cover

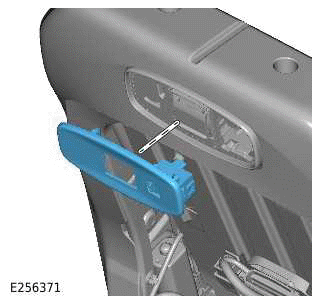

Remove the RSE docking station trim.

16.

Front Row Seat Backrest Cover

Remove the front row seat backrest cover assembly.

The following step(s) applies to: Vehicles with climate controlled seats

17.

NOTE: Do not disassemble further if the component is removed for access only.

Front Row Seat Backrest Cover

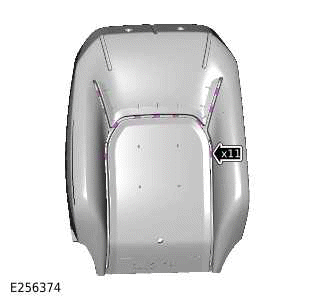

Use a suitable tool to remove and discard the 11 hog rings.

The following step(s) applies to: Vehicles without climate controlled seats

18.

Front Row Seat Backrest Cover

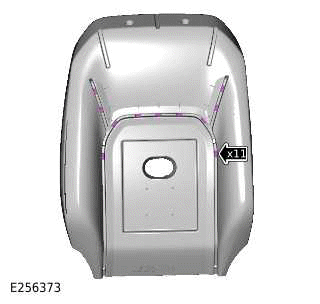

Use a suitable tool to remove and discard the 11 hog rings.

The following step(s) applies to: All vehicles

19.

Front Row Seat Backrest Cover

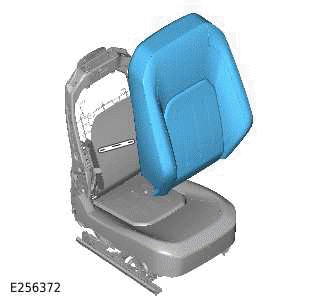

Remove the front row seat backrest cover.

INSTALLATION

The following step(s) applies to: All vehicles

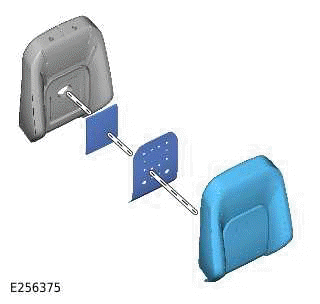

1. Install the front row seat backrest cover.

2.

NOTES:

Front Row Seat Backrest Cover

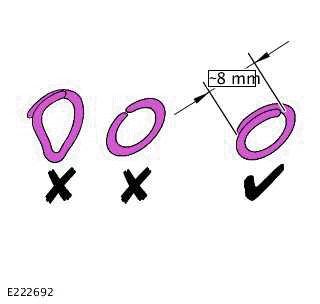

General Equipment: Hog ring pliers Renew Part: Hog rings Quantity: 11.

The following step(s) applies to: Vehicles without climate controlled seats

3.

Front Row Seat Backrest Cover

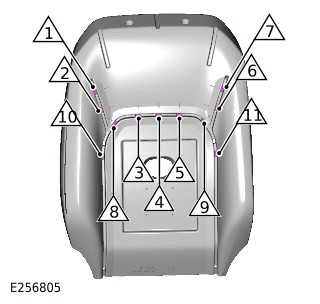

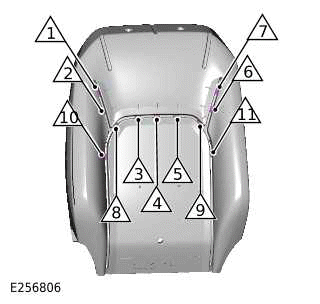

Install the 11 new hog rings in the sequence illustrated.

The following step(s) applies to: Vehicles with climate controlled seats

4.

Front Row Seat Backrest Cover

Install the 11 new hog rings in the sequence illustrated.

The following step(s) applies to: All vehicles

5. Install the front row seat backrest cover assembly.

6.

7. Install the side airbag.

8. Install the blower motor to the 2 clips.

9. Connect the side airbag electrical connector.

10. Install and tighten the 2 side airbag nuts.

Torque: 9Nm

11.

NOTE: Repeat the step for the other side.

Install the 4 front row seat backrest cover clips.

12. Install the 2 lower seat backrest cover tension straps.

13.

NOTE: Repeat the step for the other side.

Install the upper seat backrest cover tension strap.

14.

NOTE: If equipped.

Connect the seat backrest cover heater element electrical connector.

15. Install the 2 wiring harness clips.

16.

17. Install the seat backrest cover rear clip.

18. Install the front row seat headrest.
