Land Rover Defender: Front Row Seatbelt Buckle - Vehicles Without: Power Seats
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Seatbelt System / Front Row Seatbelt Buckle - Vehicles Without: Power Seats
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for right side components, left side components are similar.
1. Disconnect the startup battery ground cable.
2. Remove the front row seat.

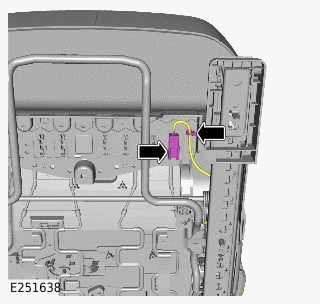

3.
.png)
- Release the clip.
- Disconnect the electrical connector.

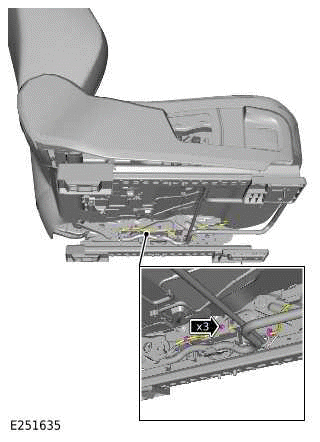

4.
.png)
- Release the 3 clips.
- Release the wiring harness.

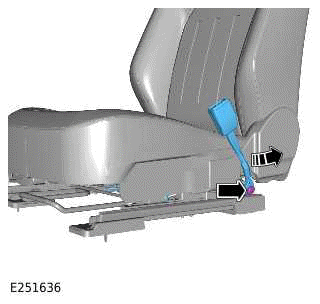

5.
.png)
- Remove the bolt.
- Remove the front row seatbelt buckle.
INSTALLATION
1.
- Install the front row seatbelt buckle.
- Tighten the bolt.
Torque: 25Nm
2.
- Install the 3 clips.
- Install the wiring harness.
3.
- Install the clip.
- Connect the electrical connector.
4. Install the front row seat.
5. Connect the startup battery ground cable.
