Land Rover Defender: Front Stabilizer Bar
Land Rover Defender 2020-2025 Service Manual / Chassis / Suspension / Front Suspension / Front Stabilizer Bar
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Raise and support the vehicle on a suitable 2-post lift.
3. Remove the front subframe.
4.

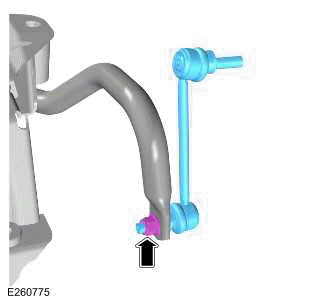

CAUTION: Use a suitable tool to prevent the ball joint rotating.
NOTE: Repeat this step for the other side.
.png)
- Remove and discard the nut.
- Remove the front stabilizer bar link.
5.
.png)

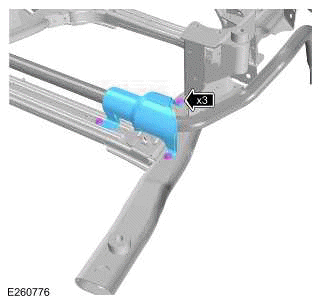

- Remove the 3 bolts.
- Remove the heatshield.
6.
.png)

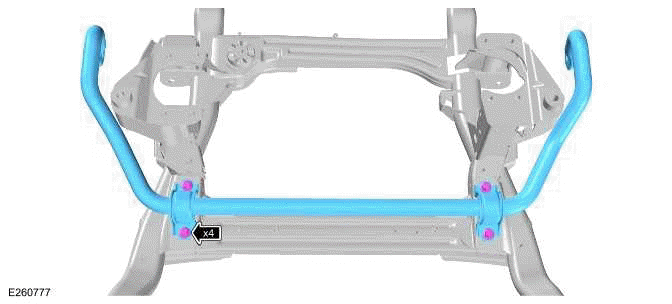

- Remove and discard the 4 bolts.
- Remove the front stabilizer bar assembly.
INSTALLATION
1.
CAUTION: Bolt must be tightened with vehicle at normal ride height.
- Install the front stabilizer bar assembly.
- Install and tighten the 4 bolts.
Renew Part: Front stabilizer bar to subframe bolts Quantity: 4.
Torque: 110Nm
2.
- Install the heatshield.
- Install and tighten the 3 bolts.
Torque: 9Nm
3.
CAUTION: Use a suitable tool to prevent the ball joint rotating.
NOTE: Repeat this step for the other side.
- Install the stabilizer bar link.
- Install and tighten the nut.
Renew Part: Stabilizer bar link nuts Quantity: 2.
Torque: 185Nm
4. Install the front subframe.
5. Connect the startup battery ground cable.
