Land Rover Defender: Front Treadplates

FRONT TREADPLATES - PART NUMBER: 90: VPLES0575PVJ, VPLES0595LAA, LR131474, LR131466, LR131475, LR131467 110: VPLES0576PVJ, VPLES0596LAA, LR131470, LR141462, LR131471, LR131463

REMOVAL AND INSTALLATION

VPLES0576PVJ, VPLES0596LAA, VPLES0575PVJ, VPLES0595LAA, LR131470, LR131471, LR131463, LR131474, LR131475, LR131466, LR131467, LR141462

WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

CAUTION: Protect the surrounding paintwork to avoid damage.

NOTES:

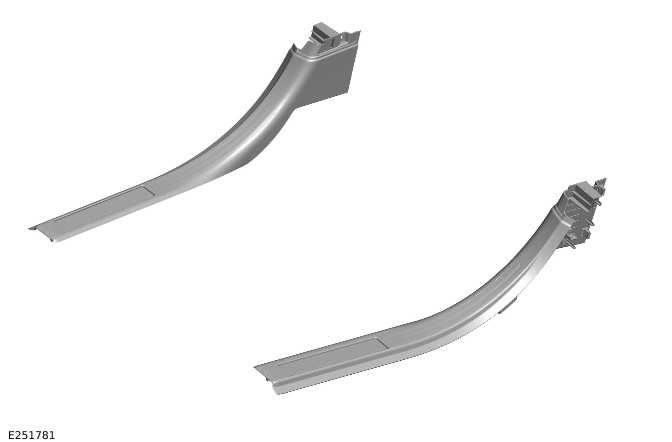

Front Treadplates

REMOVAL

1.

NOTE: Complete step for vehicles with 90 wheelbase.

For vehicles with 90 wheelbase, remove the right rear quarter trim panel. Ask your Jaguar Land Rover Retailer for a copy of this instruction if you do not have access to TOPIx.

2.

NOTE: Complete step for vehicles with 110 wheelbase.

For vehicles with 110 wheelbase, remove the B-pillar lower trim panel. Ask your Jaguar Land Rover Retailer for a copy of this instruction if you do not have access to TOPIx.

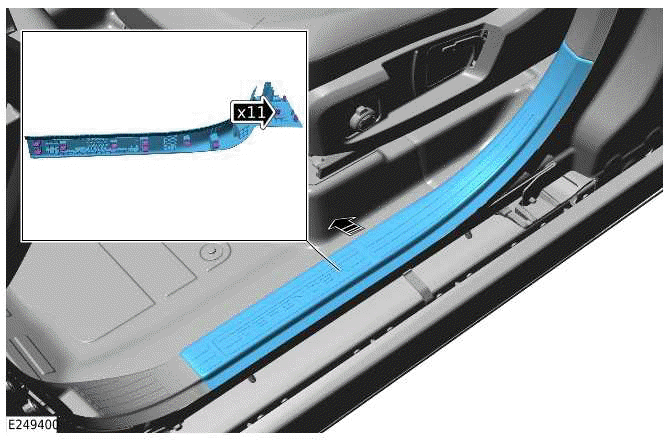

3.

CAUTION: Use a suitable trim tool.

Front Treadplates

INSTALLATION

1.

Install the personalised or illuminated front treadplates as required.

2.

NOTE: Complete step for vehicles with 110 wheelbase.

For vehicles with 110 wheelbase, install the B-pillar lower trim panel. Ask your Jaguar Land Rover Retailer for a copy of this instruction if you do not have access to TOPIx.

3.

NOTE: Complete step for vehicles with 90 wheelbase.

For vehicles with 90 wheelbase, install the right rear quarter trim panel. Ask your Jaguar Land Rover Retailer for a copy of this instruction if you do not have access to TOPIx.
