Land Rover Defender: Fuel Filler Neck - Ingenium I4 2.0l Petrol

REMOVAL AND INSTALLATION

GENERAL EQUIPMENT

Fuel Filler Neck - Ingenium I4 2.0l Petrol

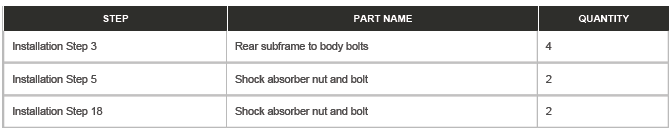

PART(S)

Fuel Filler Neck - Ingenium I4 2.0l Petrol

REMOVAL

WARNINGS:

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTES:

1. Always follow the fuel system health and safety precautions when doing any repairs to the fuel system.

2. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to depressurize the air suspension.

3. Drain the fuel tank.

4.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

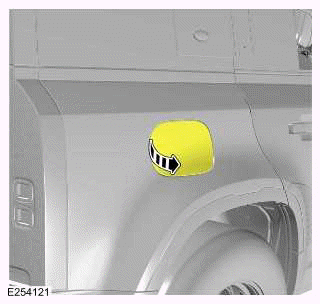

Open the fuel flap.

5.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

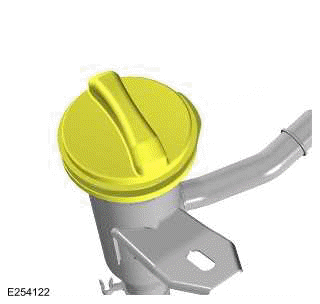

Remove the fuel filler cap.

6. Raise and support the vehicle on a suitable 2-post lift.

7. Remove the right rear wheel arch liner.

8.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

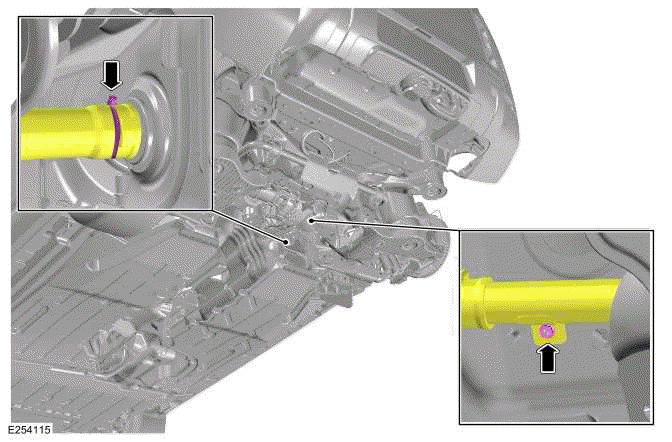

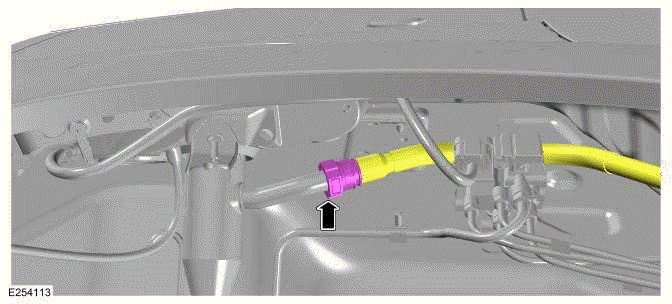

Release the evaporative emission canister hose.

9.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

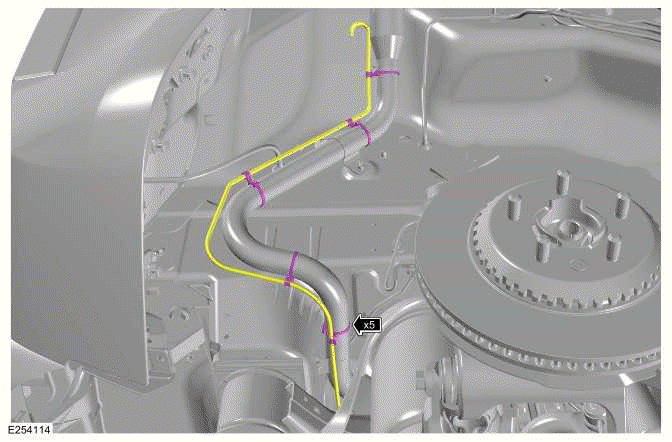

Release the breather hose from the 5 clips.

10.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

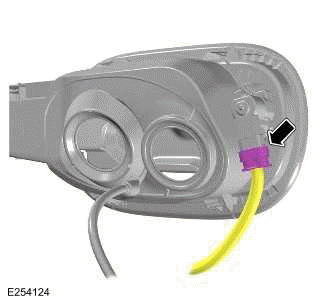

Disconnect the electrical connector.

11.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

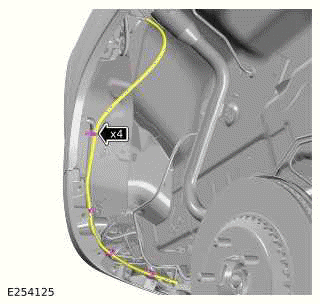

Release the hose from the 4 clips.

12.

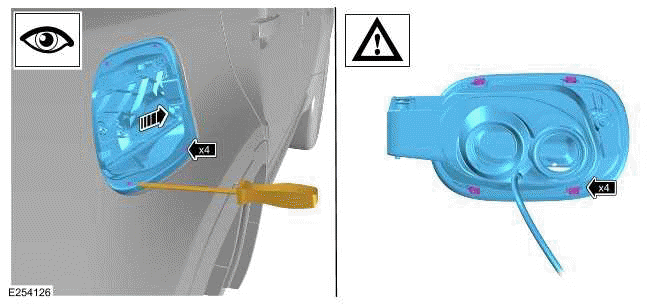

CAUTION: Care must be taken not to damage the body paint work.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

13.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

Release the air suspension hoses from the 3 clips at the right side.

14.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

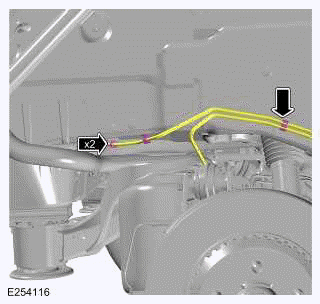

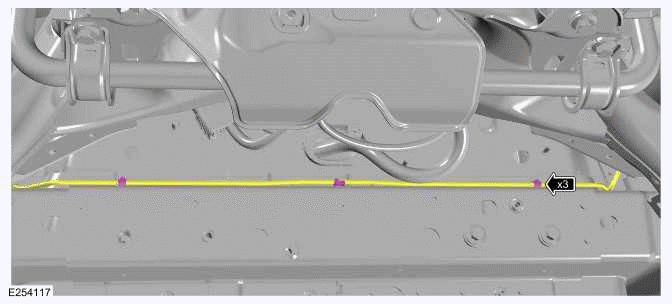

Release the air suspension hose from the 3 clips.

15.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

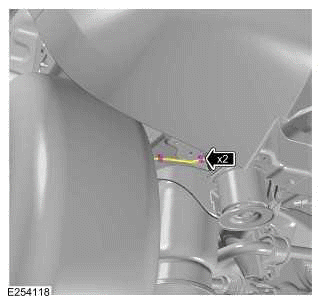

Release the air suspension hose from the 2 clips at the left side.

16.

WARNING: Be prepared to collect escaping fuel.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

17. Remove the rear driveshaft.

18.

NOTE: Repeat this step for the other side.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

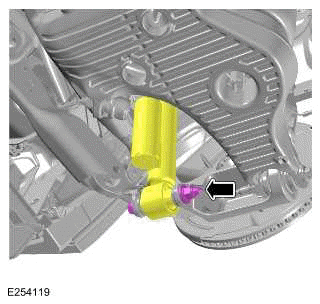

Remove and discard the nut and bolt.

19.

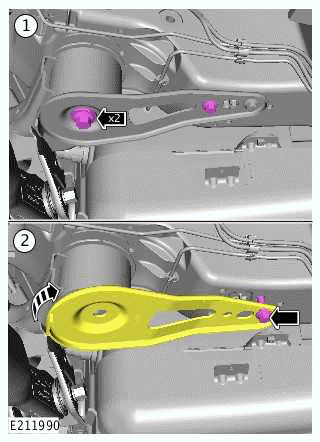

Fuel Filler Neck - Ingenium I4 2.0l Petrol

20.

NOTE: Repeat this step for the other side.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

21.

CAUTION: Make sure the rear subframe assembly is supported.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

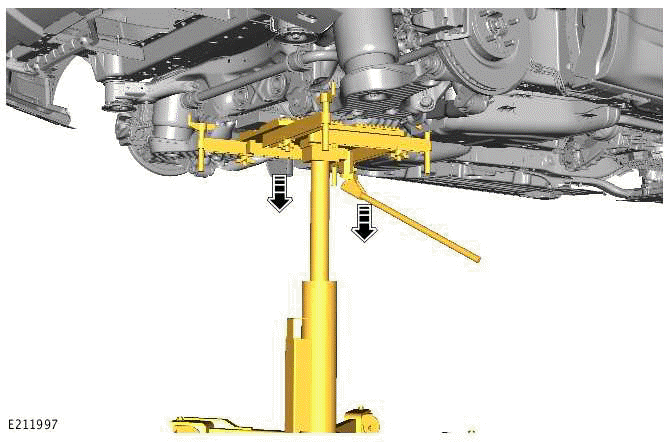

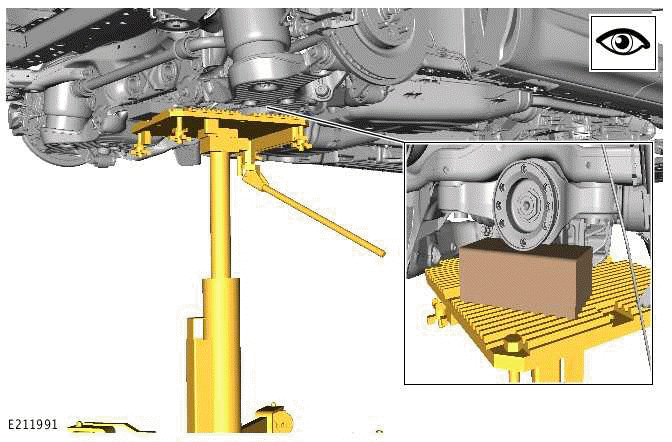

Use the transmission jack to lower the rear subframe front section carefully away from the vehicle.

22.

WARNING: Make sure the rear subframe assembly is adequately supported.

NOTE: Repeat this step for the other side.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

23.

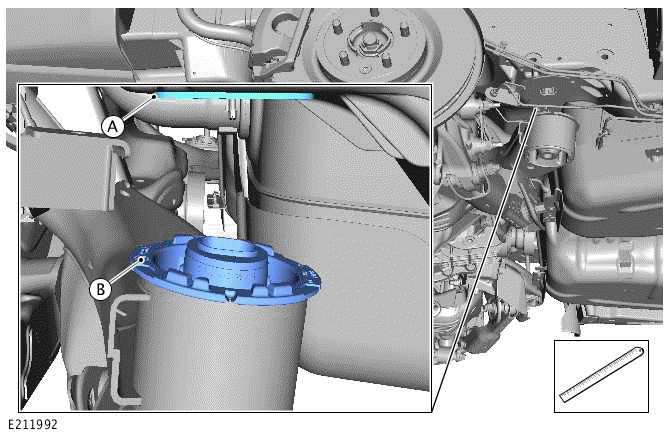

WARNING: Make sure the rear subframe assembly is adequately supported.

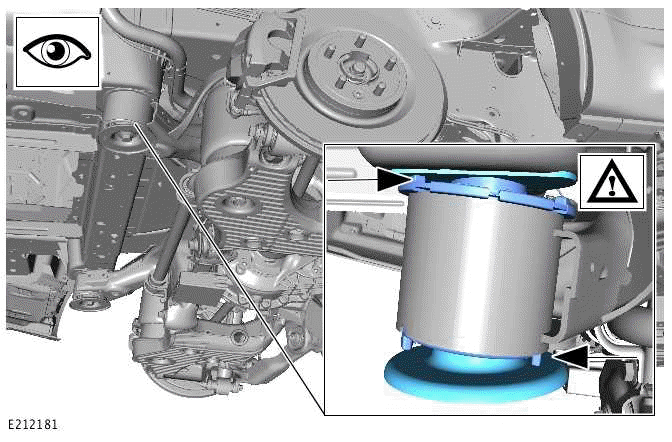

CAUTION: The rear subframe must not come in to contact with the bush cups as highlighted in the illustration.

NOTE: Repeat this step for the other side.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

24.

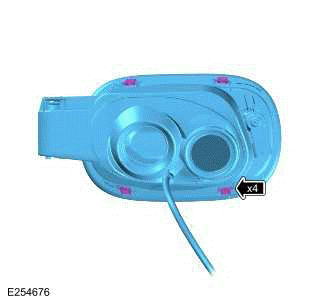

CAUTION: Care must be taken not to damage the body paint work.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

INSTALLATION

1.

CAUTION: Care must be taken not to damage the body work.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

2.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

3.

CAUTIONS:

  • Make sure that the components are correctly aligned.
  • Only tighten the bolts finger tight at this stage.

4.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

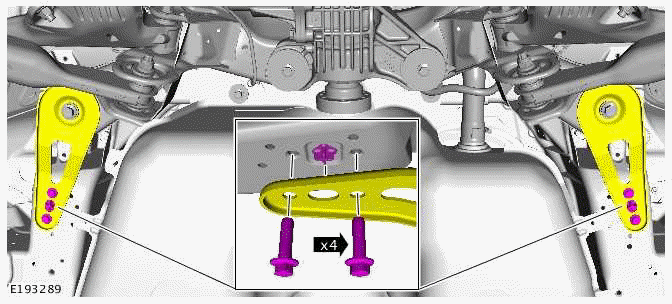

Install the front subframe support bracket bolts.

Torque: 60Nm

5.

CAUTION: Only tighten the bolts finger tight at this stage.

NOTE: Repeat this step for the other side.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

Install and hand tighten the new bolt and nut.

Renew Part: Shock absorber nut and bolt Quantity: 2.

6. Remove the transmission jack.

7. Install the rear driveshaft.

8.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

Secure the air suspension hose to the 2 clips at the left side.

9.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

Secure the air suspension hose to the 3 clips.

10.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

Secure the air suspension hoses to the 3 clips at the right side.

11.

CAUTION: Make sure that all the clips are correctly installed.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

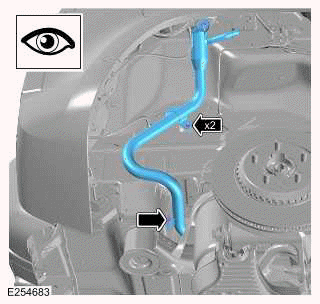

Install the fuel filler assembly.

12.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

Secure the hose to the 4 clips.

13.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

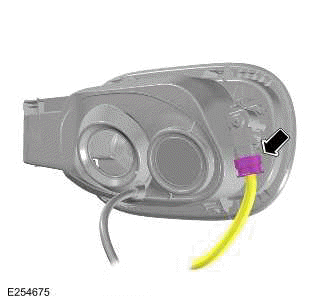

Connect the electrical connector.

14.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

Secure the breather hose at the 5 clips.

15.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

Connect the evaporative emission canister hose.

16. Install the right rear wheel arch liner.

17.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

Install the fuel filler cap.

18.

CAUTION: Nut and bolt must be tightened with vehicle at normal ride height.

NOTE: Repeat this step for the other side.

Fuel Filler Neck - Ingenium I4 2.0l Petrol

Install and tighten the new bolt and nut.

Renew Part: Shock absorber nut and bolt Quantity: 2.

Torque

19.

CAUTION: Bolts must be tightened with vehicle at normal ride height.

Fully tighten the 4 new subframe bolts.

Torque

Front bolts

  • Stage1: 100Nm
  • Stage2: 240º

Rear bolts

  • Stage1: 100Nm
  • Stage2: 300º

20.

WARNING: After doing repairs, the fuel system must be checked visually for leaks. Failure to follow these instructions may result in personal injury.

Fill the fuel tank with the amount recovered during the fuel tank drain procedure.

21. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to pressurize the air suspension.

22. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to check and if necessary adjust the wheel alignment.
