REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2-post lift.
2. Remove the front right wheel arch liner.
3.
.png)

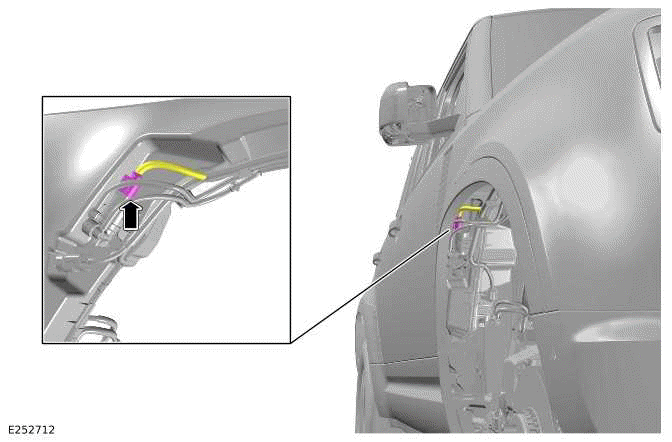

Disconnect the electrical connector.
4.
.png)

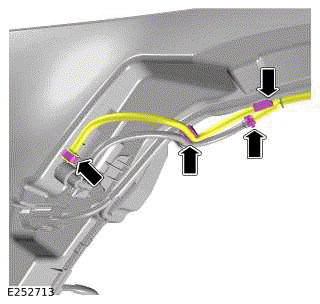

- Disconnect the 2 headlamp washer hoses.
- Release the washer hose from the 2 clips.
5.
.png)

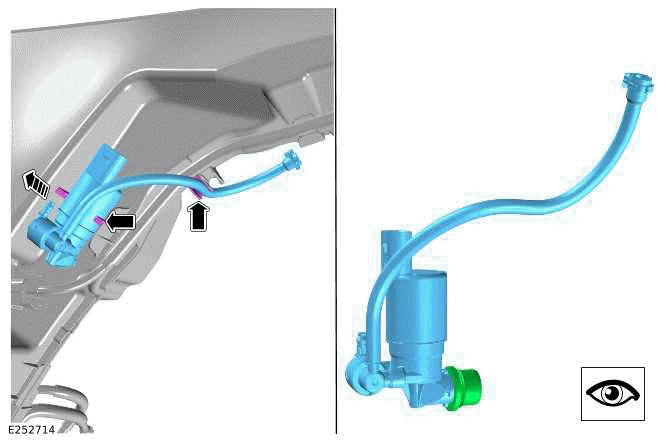

- Release the headlamp washer hose from the clip.
- Remove the headlamp washer pump from the windshield washer reservoir.
INSTALLATION
1.
CAUTION: The seal is to be reused unless damaged.
- Install the headlamp washer pump into the windshield washer reservoir.
- Connect the 2 headlamp washer hoses.
- Secure the 2 headlamp washer hoses to the 2 clips.
- Connect the electrical connector.
2. Install the front right wheel arch liner.
