Land Rover Defender: Information and Message Center
DIAGNOSIS AND TESTING
PRINCIPLES OF OPERATION
For a detailed description of the information and message centre system and
operation, refer to the relevant
Description and Operation section of the workshop manual.
INSPECTION AND VERIFICATION
CAUTION:
Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution
of control modules does not
guarantee confirmation of a fault, and may also cause additional faults in the
vehicle being tested and/or the
donor vehicle.
NOTES:
- If a control module or a component is suspect and the vehicle remains
under manufacturer warranty, refer
to the Warranty Policy and Procedures manual, or determine if any prior
approval programme is in
operation, prior to the installation of a new module/component.
- Generic scan tools may not read the codes listed, or may read only
5-digit codes. Match the 5 digits from
the scan tool to the first 5 digits of the 7-digit code listed to identify
the fault (the last 2 digits give extra
information read by the Jaguar Land Rover approved diagnostic equipment).
- When performing voltage or resistance tests, always use a digital
multimeter that has the resolution ability
to view 3 decimal places. For example, on the 2 volts range can measure 1mV
or 2 K Ohm range can
measure 1 Ohm. When testing resistance always take the resistance of the
digital multimeter leads into
account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests.
- Inspect connectors for signs of water ingress, and pins for damage
and/or corrosion.
- If DTCs are recorded and, after performing the pinpoint tests, a
fault is not present, an intermittent concern
may be the cause. Always check for loose connections and corroded terminals.
- Verify the customer concern.
- Visually inspect for obvious signs of mechanical or electrical damage.
Visual Inspection
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before
proceeding to the next step.
- If the cause is not visually evident check the system for any logged
Diagnostic Trouble Codes (DTCs) and refer
to the DTC Index.
- Check JLR claims submission system for open campaigns. Refer to the
corresponding bulletins and SSMs
which may be valid for the specific customer complaint and carry out the
recommendations as required.

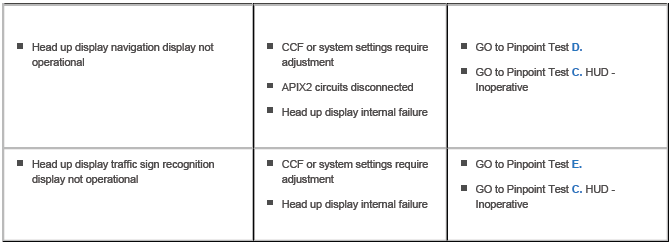

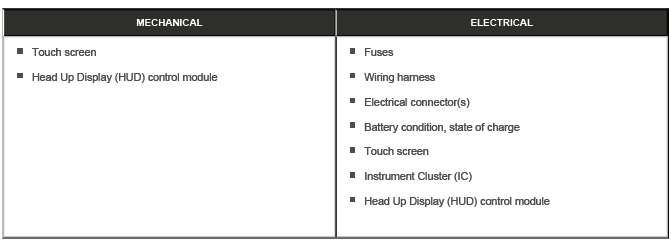

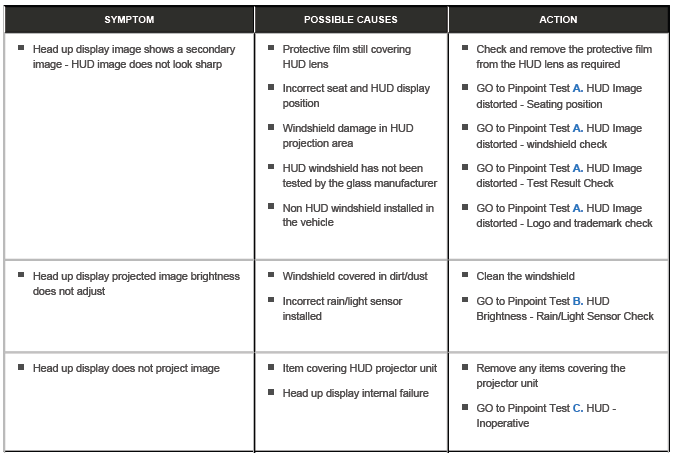

SYMPTOM CHART
PINPOINT TESTS

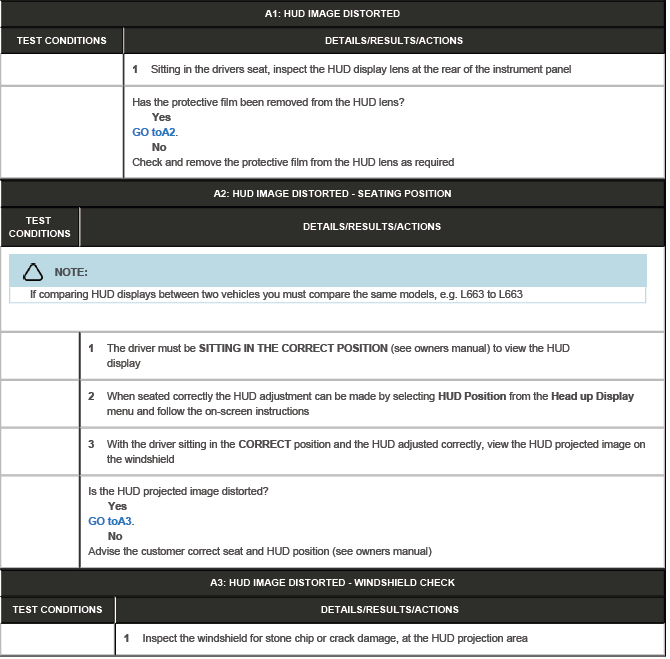

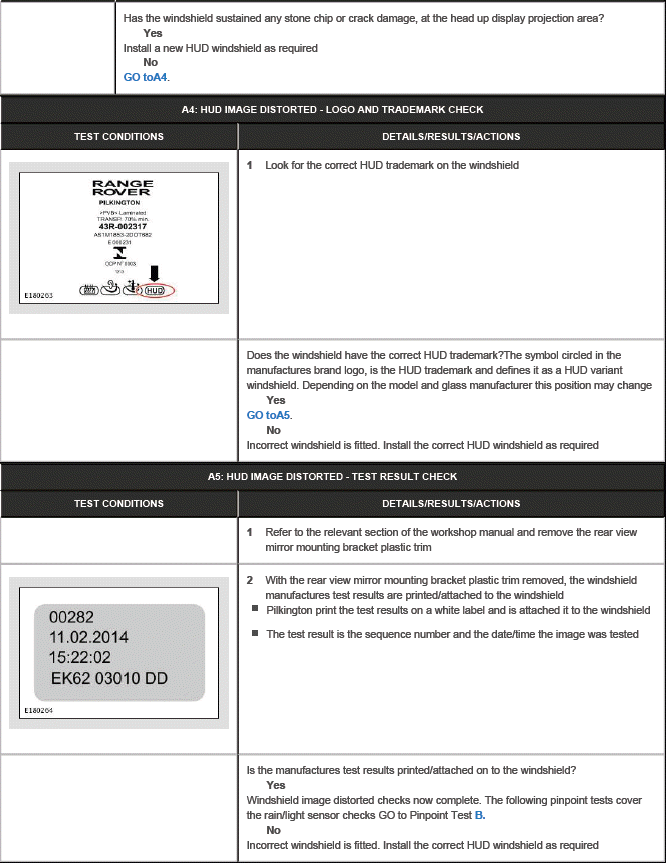

PINPOINT TEST A : HEAD UP DISPLAY (HUD) WINDSHIELD PROJECTED IMAGE
DISTORTED

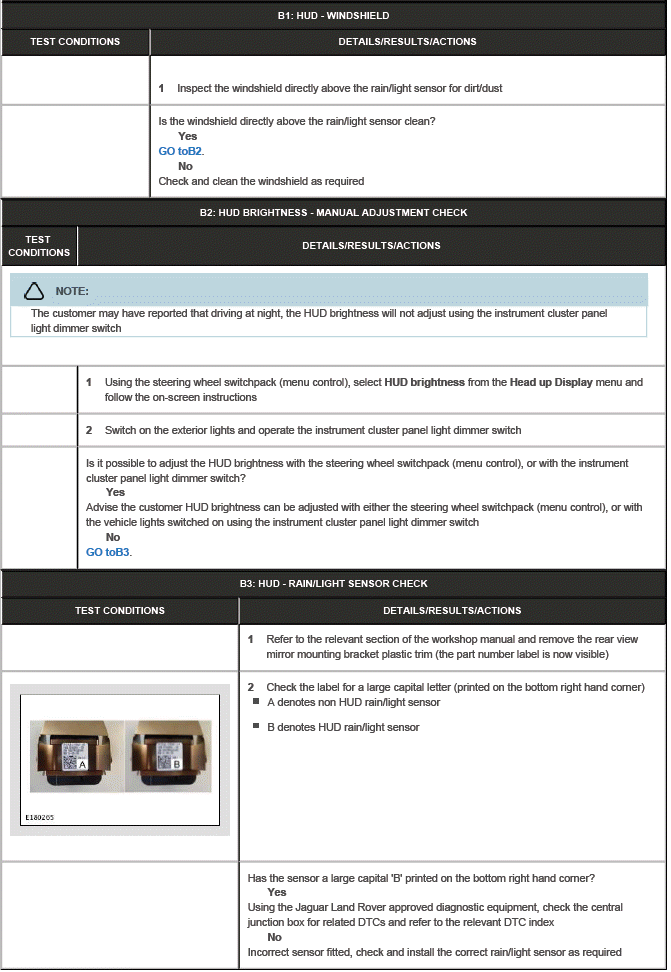

PINPOINT TEST B : HEAD UP DISPLAY (HUD) RAIN/LIGHT SENSOR

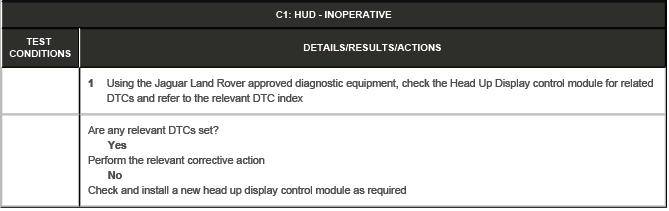

PINPOINT TEST C : HEAD UP DISPLAY (HUD) CONTROL MODULE

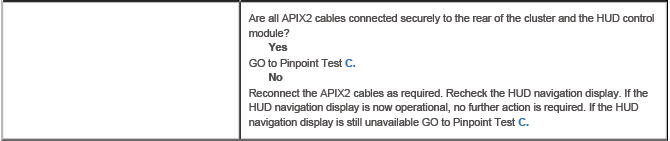

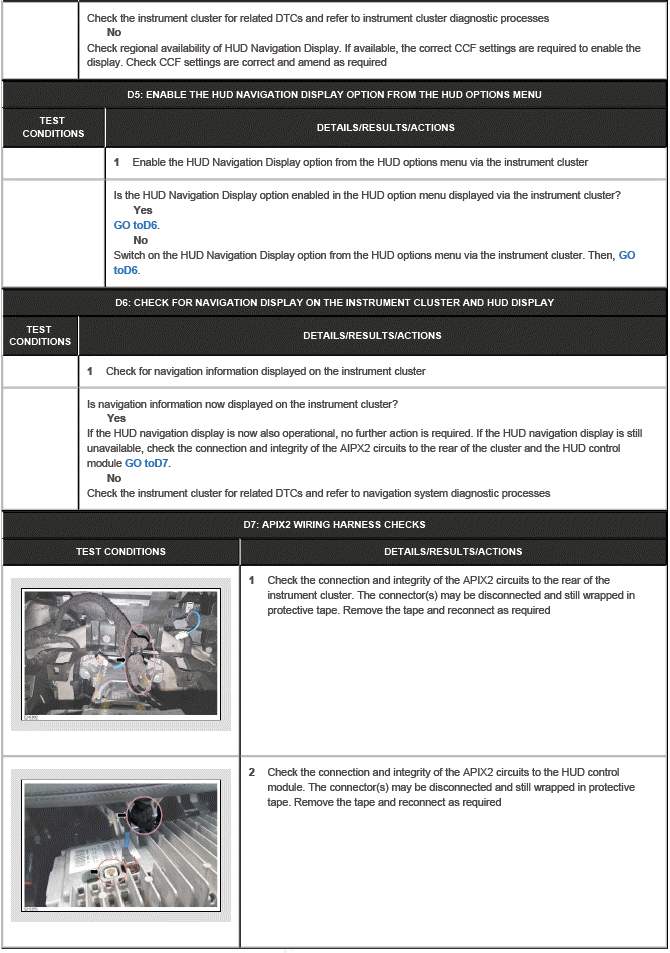

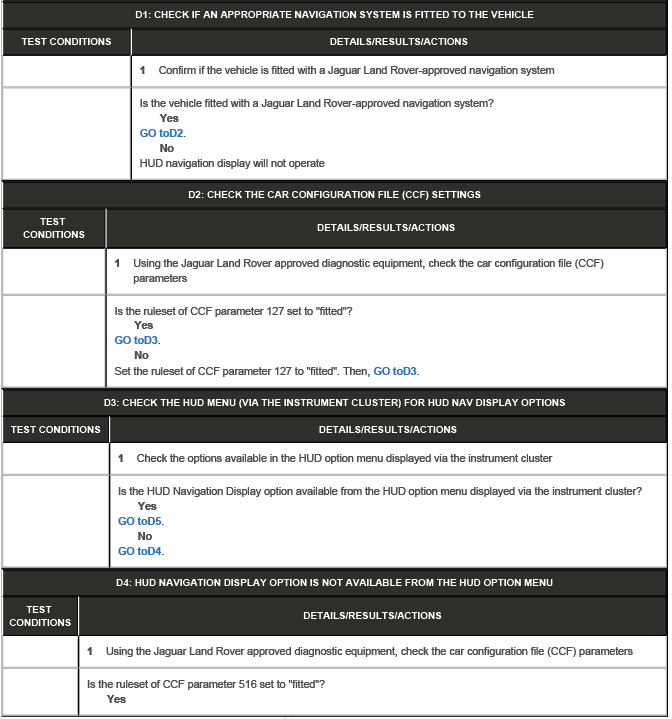

PINPOINT TEST D : HUD NAVIGATION DISPLAY CHECKS

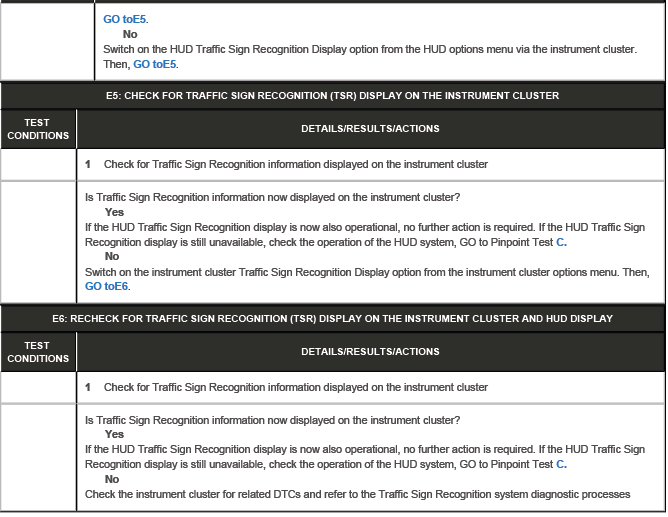

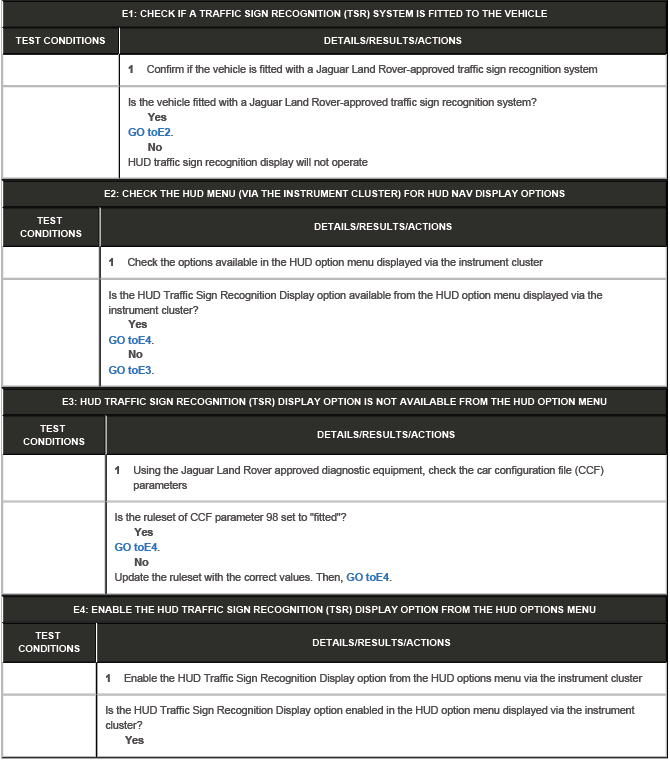

PINPOINT TEST E : HUD TRAFFIC SIGN RECOGNITION (TSR) DISPLAY CHECKS
