Land Rover Defender: Loadspace Speaker
Land Rover Defender 2020-2024 Service Manual / Electrical / Information and Entertainment System / Loadspace Speaker
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for the left side components, right side components are similar.
1. Remove the headliner.

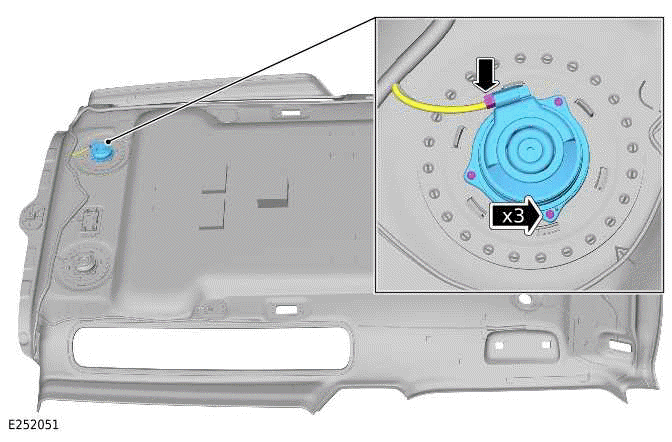

2.
.png)
- Disconnect the electrical connector.
- Remove the 3 bolts.
- Remove the loadspace speaker.
INSTALLATION
1.
- Install the loadspace speaker.
- Install and tighten the 3 bolts.
Torque: 1.7Nm
- Connect the electrical connector to the loadspace speaker.
2. Install the headliner.
