Land Rover Defender: Output Shaft Seal
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
.png)
100-012
Slide Hammer
.png)
100-012-01
Slide Hammer Adapter
.png)
307-520
Installer, Output Shaft Seal
.png)
308-375
Remover, Input and Output Seal
.png)
JLR-307-520-01
Adapter, Output Shaft Seal
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Remove the transfer case.
3.
CAUTION:
Care must be taken to avoid damage to the seal running surface.
.png)

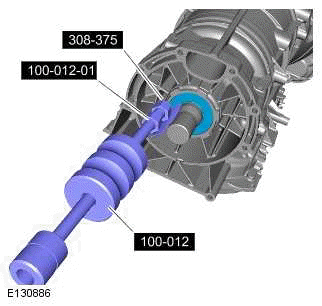

Use the special tools to remove the seal.
Special Tool(s): 100-012, 100-012-01, 308-375
INSTALLATION
1.
CAUTION:
- Oil seals must be installed dry.
- Make sure that the mating faces are clean and free of foreign
material.
.png)

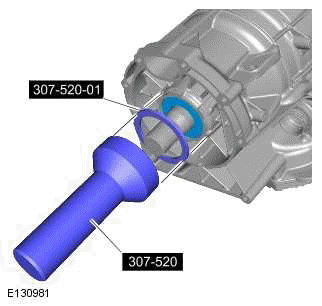

Use the special tools to install a new seal.
Special Tool(s): 307-520, JLR-307-520-01
2. Install the transfer case.
3. Check the transmission fluid level.
