Land Rover Defender: Radiator Grille
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Exterior Trim and Ornamentation / Radiator Grille
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Take extra care not to damage the surrounding components.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1.
.png)

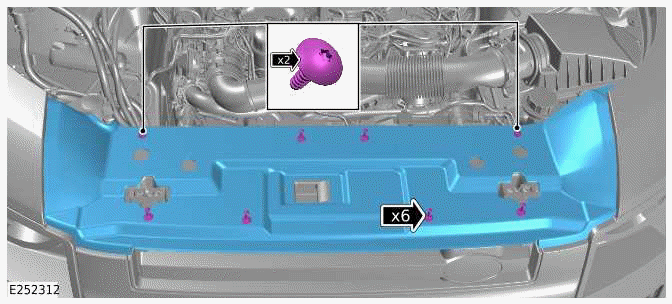

- Release the 6 clips.
- Remove the 2 bolts.
- Remove the upper radiator grille panel.
2.
.png)

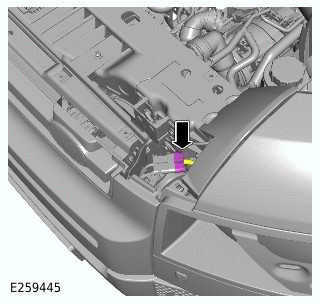

Disconnect the electrical connector.
3.
.png)

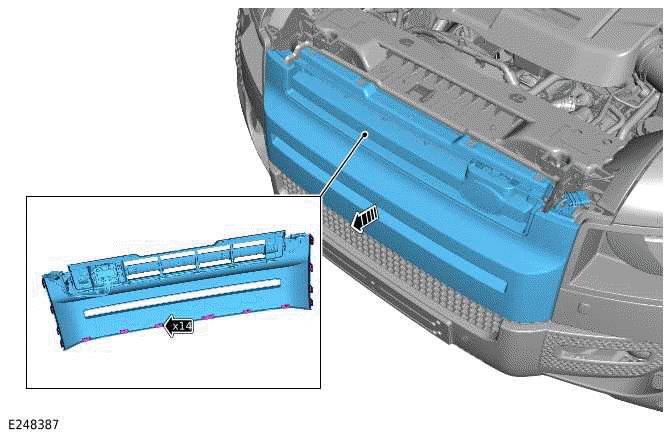

- Release the 14 clips.
- Remove the radiator grille.
4.
NOTE: Do not disassemble further if component if removed for access only.
.png)

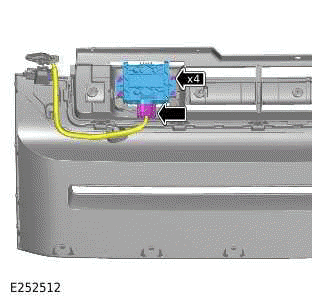

- Disconnect the electrical connector.
- Remove the 4 bolts.
- Remove the Cruise Control Module (CCM).
5.
.png)

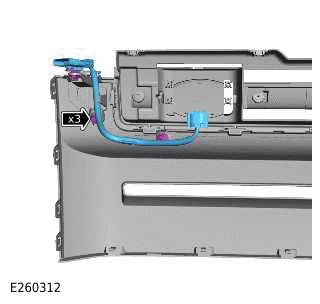

- Release the 3 clips.
- Remove the wiring harness.
6.
.png)

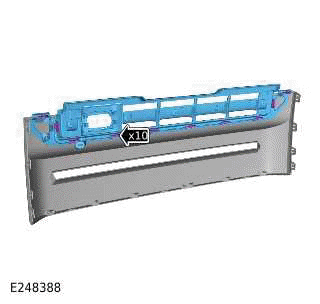

- Release the 10 clips.
- Remove the upper grille.
INSTALLATION
1.
NOTE: Steps 1 - 3 are only required if the components were previously removed.
- Install the 10 clips.
- Install the upper grille.
2.
- Install the 3 clips.
- Install the wiring harness.
3.
- Install the CCM.
- Install and tighten the 4 bolts.
Torque: 3Nm
- Connect the electrical connector.
4.
- Install the 14 clips.
- Install the radiator grille.
5. Connect the electrical connector.
6.
- Install the upper radiator grille panel.
- Install the 6 clips.
- Install the 2 bolts.
Torque: 3Nm
