Land Rover Defender: Right Loadspace Trim Panel - 90
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2.

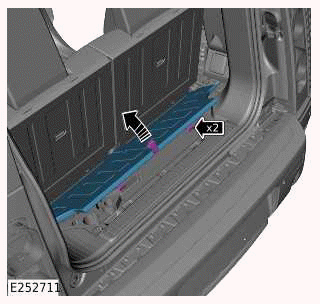

Remove the loadspace cover.
3.
Remove the loadspace floor trim.
4.

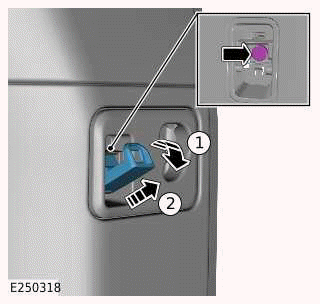

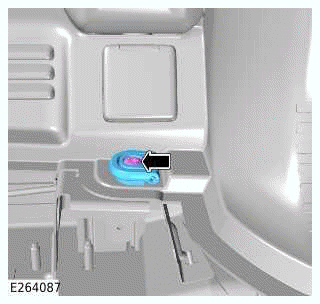

Remove the D-loop anchor point bolt.
5.

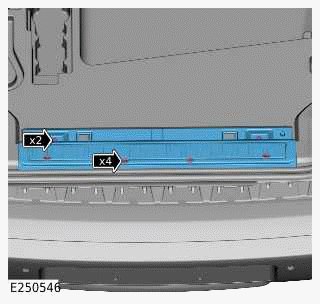

- Remove the 2 bolts.
- Release the 4 clips.
- Remove the loadspace treadplate.
6.

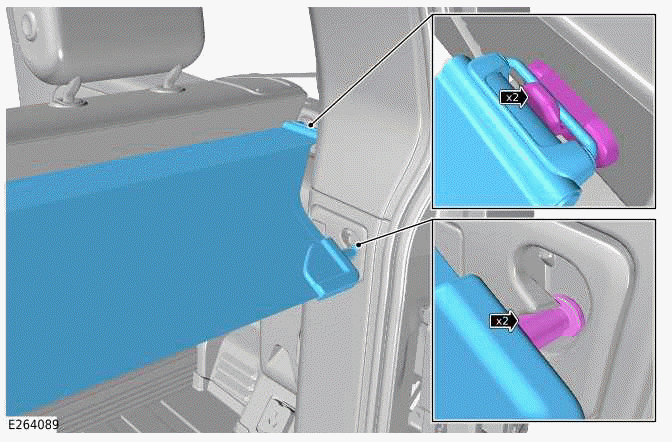

- Remove the coat hanger in the sequence shown.
- Remove the bolt.
7.

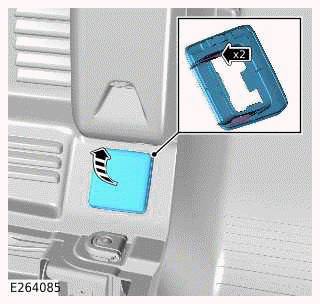

- Release the 2 clips.
- Remove the domestic voltage socket trim panel.
8. Remove the rear quarter trim panel.
9.

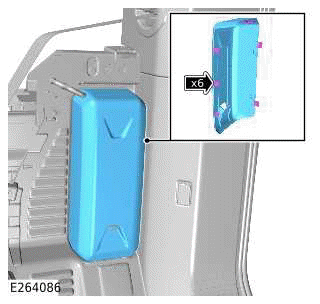

- Release the 6 clips.
- Remove the Rear Junction Box (RJB) access cover.
10.

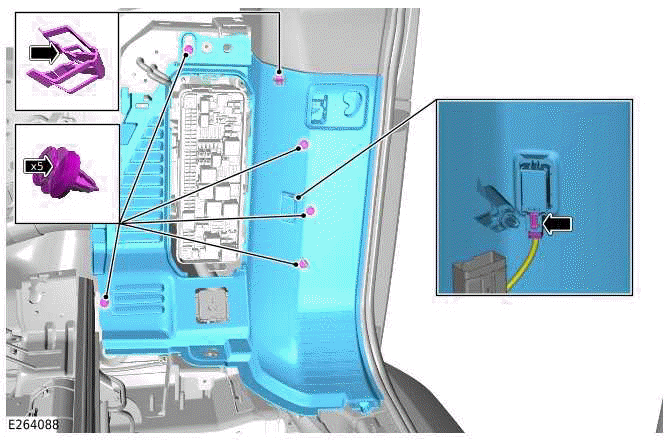

- Release the 6 clips.
- Disconnect the electrical connector.
- Remove the right loadspace trim panel.
INSTALLATION
1.
NOTE:
Make sure that the trim is correctly installed to the clips.
- Connect the electrical connector to the loadspace lamp.
- Install the right loadspace trim panel.
- Make sure the 6 clips are correctly installed.
2.
- Install the RJB access cover.
- Install the 6 clips.
3. Install the rear quarter trim panel.
4.
- Install the coat hanger.
- Install and tighten the coat hanger
Torque: 4.1Nm
5.
- Install the domestic voltage socket trim panel.
- Install the 2 clips.
6.
- Install the loadspace treadplate.
- Install the 4 clips.
- Install and tighten the 2 bolts.
Torque: 4.1Nm
7.

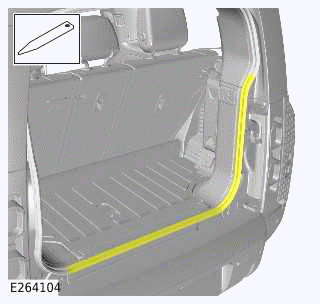

Use the suitable tool to reposition the tailgate aperture seal.
8. Install the D-loop anchor point.
Torque: 24Nm
9. Install the loadspace floor trim.
10. Install the loadspace cover.
11. Connect the startup battery ground cable.
