Land Rover Defender: Seatbelt System - Diagnosis and Testing
DIAGNOSIS AND TESTING
PRINCIPLE OF OPERATION
For a detailed description of the seatbelt system and operation, refer to the
relevant description and operation section
of the workshop manual.
SAFETY INFORMATION
WARNINGS:
- To avoid accidental deployment the back-up power supply must be
depleted before beginning any work on
the SRS system or its components. Failure to follow this instruction may
result in personal injury.
- Do not use a multimeter to probe an SRS module. It is possible for
the power from the multimeter battery
to trigger the activation of the module. Failure to follow this instruction
may result in personal injury.
NOTE:
Do not to use a mobile phone or to have a mobile phone in close proximity when
working on the SRS system
or components.
Power supply depletion
Before beginning any work on the SRS system or related components:
- Remove the ignition key
- Disconnect the battery leads, ground first
- Wait 1 minute for the power circuit to discharge
There are comprehensive instructions on the correct procedures for SRS system
repairs, refer to the relevant section
of the workshop manual
INSPECTION AND VERIFICATION
CAUTION:
Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution
of control modules does not
guarantee confirmation of a fault, and may also cause additional faults in the
vehicle being tested and/or the
donor vehicle.
NOTES:
- The 'car sense system' of the seatbelt is sensitive to both cornering
and braking forces and is designed to
lock when it detects this. It is therefore possible to lock when parking the
vehicle on high kerbs and
inclines. The seatbelt retractor will be locked when removed from the
vehicle as it is not in the exact
orientation that it was installed on the vehicle. This can be mistaken as a
jammed seatbelt retractor.
- If a control module or a component is at fault or may be at fault and
the vehicle remains under
manufacturer warranty, refer to the Warranty Policy and Procedures manual,
or determine if any prior
approval program is in operation, prior to the installation of a new
module/component.
- When performing voltage or resistance tests, always use a digital
multimeter that has the resolution ability
to view 3 decimal places. For example, on the 2 volts range can measure 1mV
or 2 K Ohm range can
measure 1 Ohm. When testing resistance always take the resistance of the
digital multimeter leads into
account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests.
- Verify the customer concern by operating the seatbelt
- Visually inspect for obvious signs of mechanical or electrical damage.
Additionally inspect the seatbelt webbing
and upper D-loop for signs of dirt/contamination

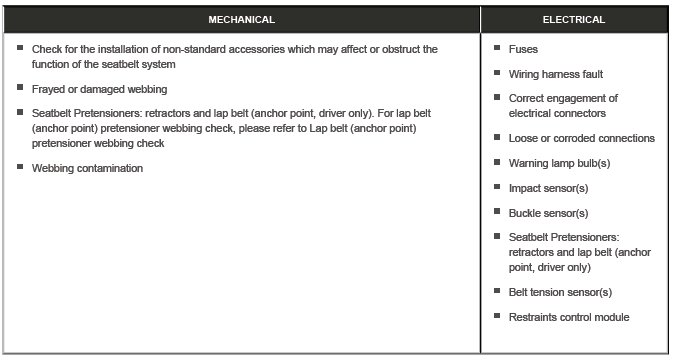

Visual Inspection
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before
proceeding to the next step
- If the cause is not visually evident, complete the test methods
described below, alternatively check for
diagnostic trouble codes and refer to the relevant diagnostic trouble code
index

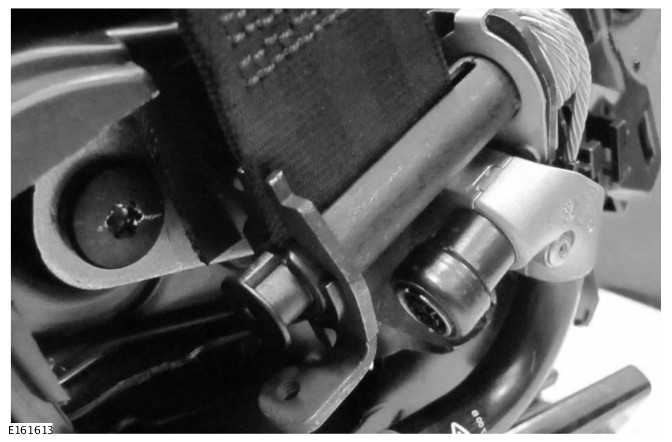

Lap belt (anchor point) pretensioner webbing check
Refer to the 501-20 removal and installation section of the workshop manual,
remove any trim panels required to
expose the lap belt (anchor point) pretensioner.
Be careful not to remove the webbing pin from the loop of the webbing. Make
sure that the webbing pin is installed
correctly inside the loop of the webbing with the webbing pin and the loop
slotted into the assembly.

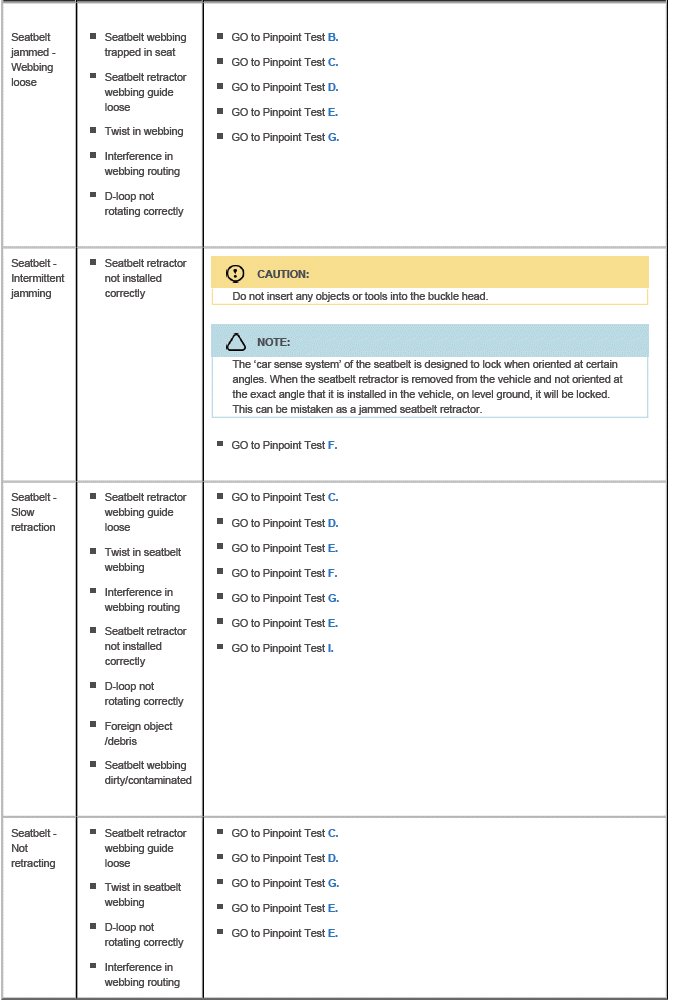

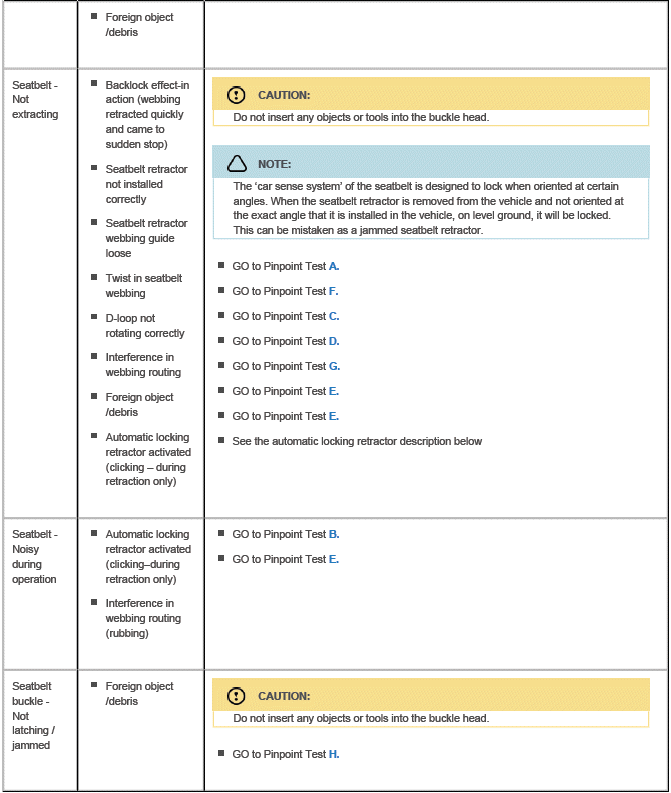

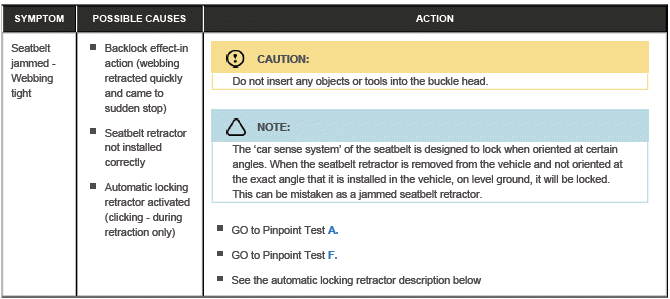

SYMPTOM CHART FOR SEATBELT ROWS 1, 2 AND 3
INERTIA REEL SEATBELTS
The vehicle is equipped with (two row one), (three row two), and (two row
three (seven seat versions only) ) inertia reel
seatbelts
These seatbelts are "dual sensitive" which means that they have:
- Car sense system - A vehicle motion sensor, which locks the seatbelt
webbing under braking, cornering,
on steep hills and in adverse camber conditions, when parked on a steep
incline or driveway or two
wheels on a high pavement. When the seatbelt retractor is removed from the
vehicle and not oriented at
the exact angle that it is installed in the vehicle, on level ground, it
will be locked. This can be mistaken as
a jammed seatbelt retractor.
- Web sense system - A webbing motion sensor, which locks when the
seatbelt webbing is extracted
suddenly

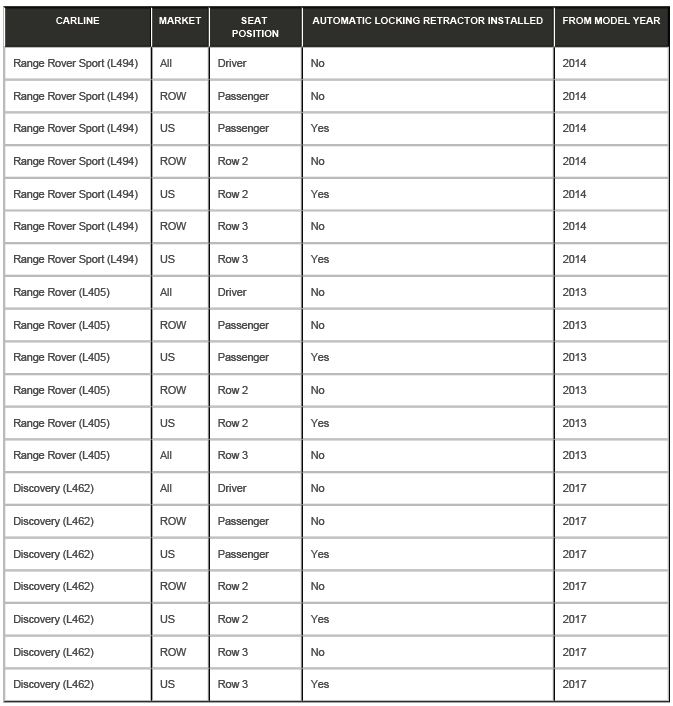

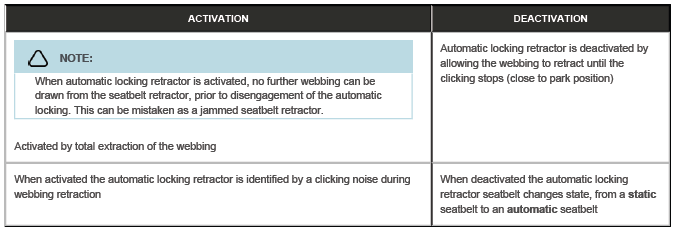

The seatbelts in the following positions are equipped with an automatic
locking retractor function:
The automatic locking retractor function is a feature to secure a child seat
or heavy load to the seat
SEATBELT LOCKING TEST
With the vehicle stationary and on level ground take firm hold of the
seatbelt webbing (on the tongue side of the upper
seatbelt anchor) and withdraw sharply, the retractor should lock. Preventing
further webbing release (repeat this
test 3 times). Any seatbelt retractor which fails to lock must not be used and a
new seatbelt must be installed.
DIAGNOSTIC GUIDE INERTIA REEL SEATBELTS
PINPOINT TEST A : BACKLOCK

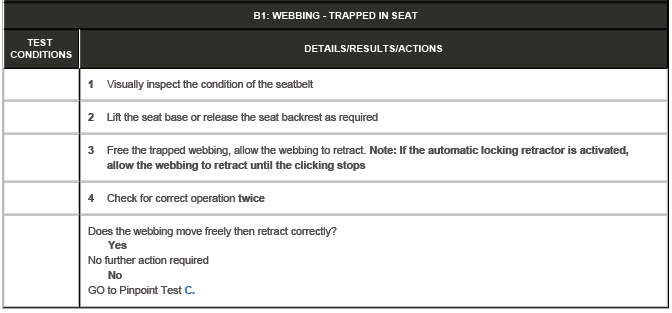

PINPOINT TEST B : WEBBING - TRAPPED IN SEAT

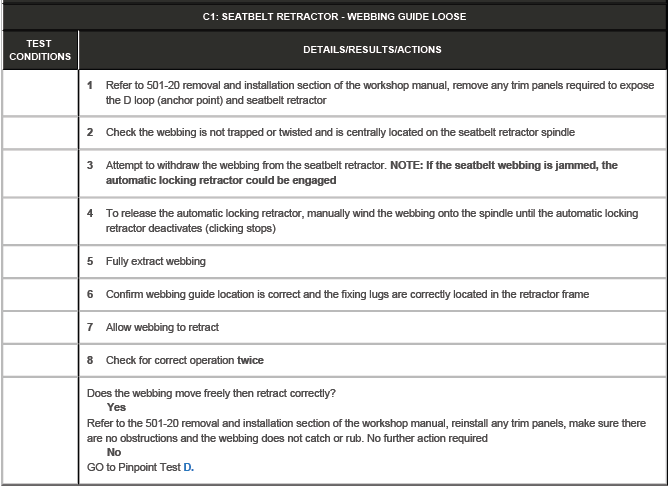

PINPOINT TEST C : SEATBELT RETRACTOR - WEBBING GUIDE LOOSE

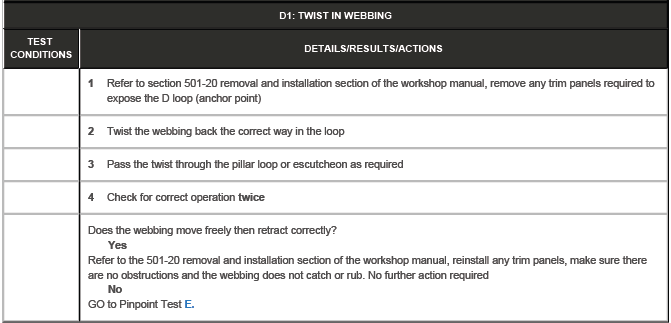

PINPOINT TEST D : TWIST IN WEBBING

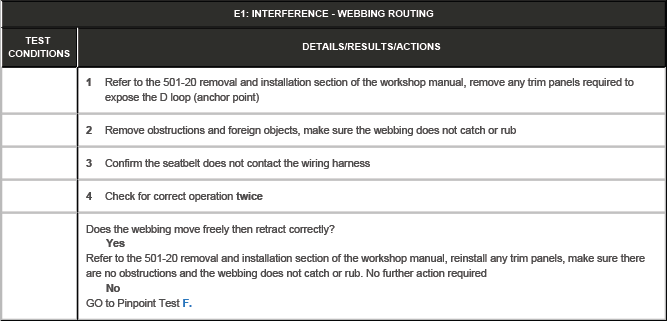

PINPOINT TEST E : INTERFERENCE - WEBBING ROUTING

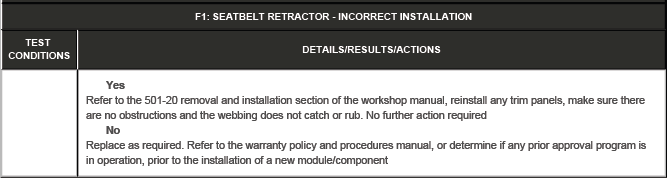

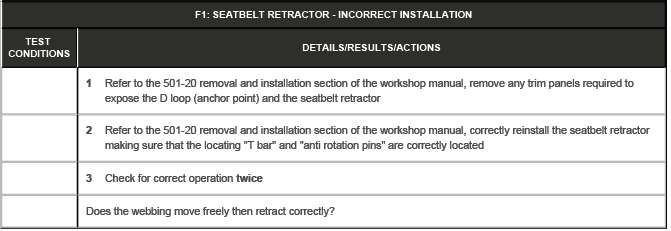

PINPOINT TEST F : SEATBELT RETRACTOR - INCORRECT INSTALLATION

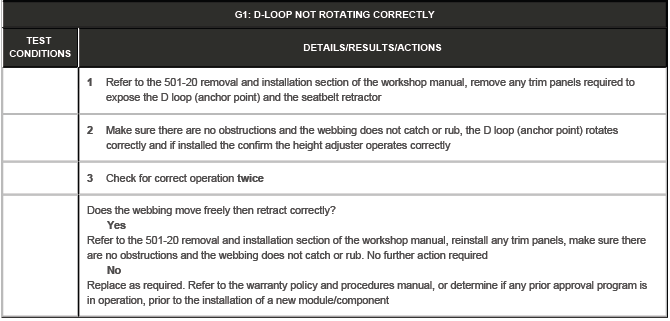

PINPOINT TEST G : D-LOOP NOT ROTATING CORRECTLY

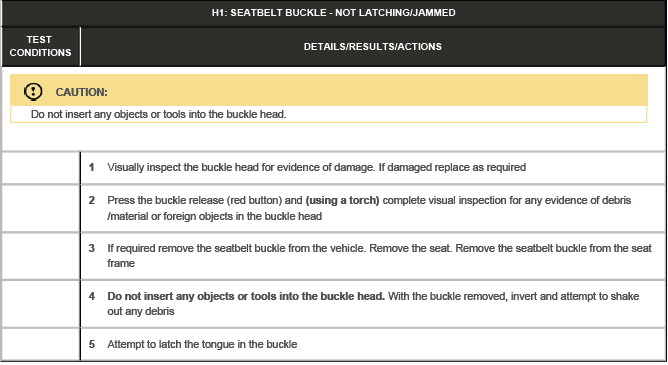

PINPOINT TEST H : SEATBELT BUCKLE - NOT LATCHING/JAMMED

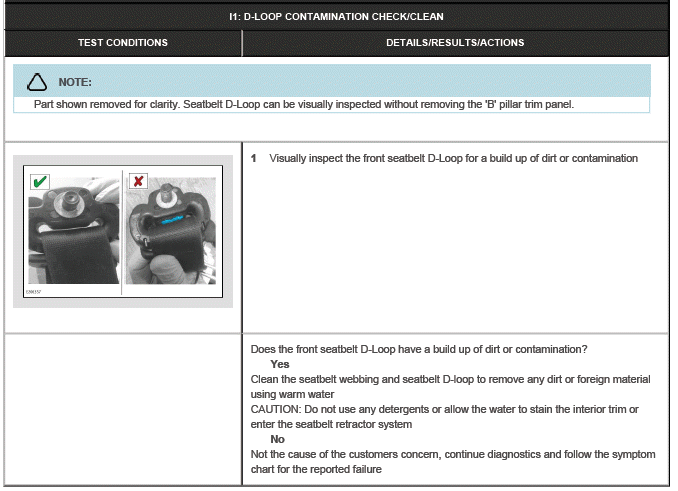

PINPOINT TEST I : SEATBELT SLOW RETRACTION
