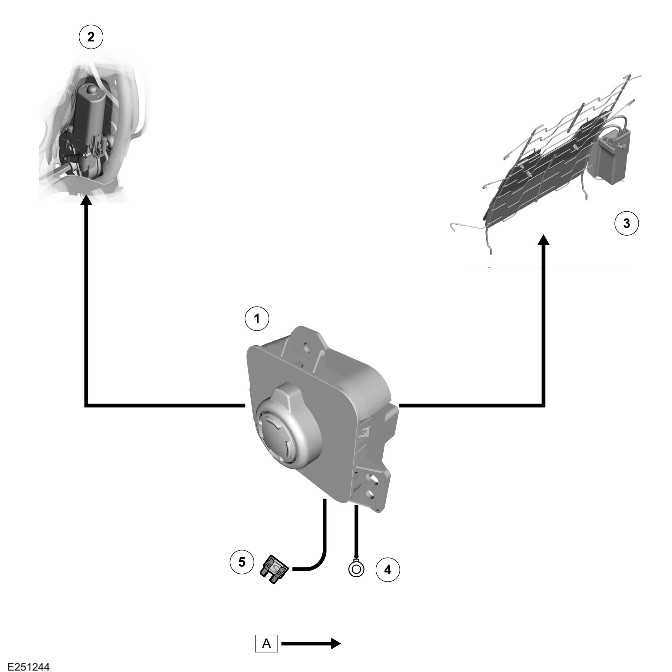

CONTROL DIAGRAM - 1 OF 8 - SEMI POWERED SEAT ADJUSTMENT

Seats - [+] 7 Seat Configuration

A = HARDWIRED.

  1. Seat switchpack
  2. Seat backrest recline motor
  3. Air reservoir valve block

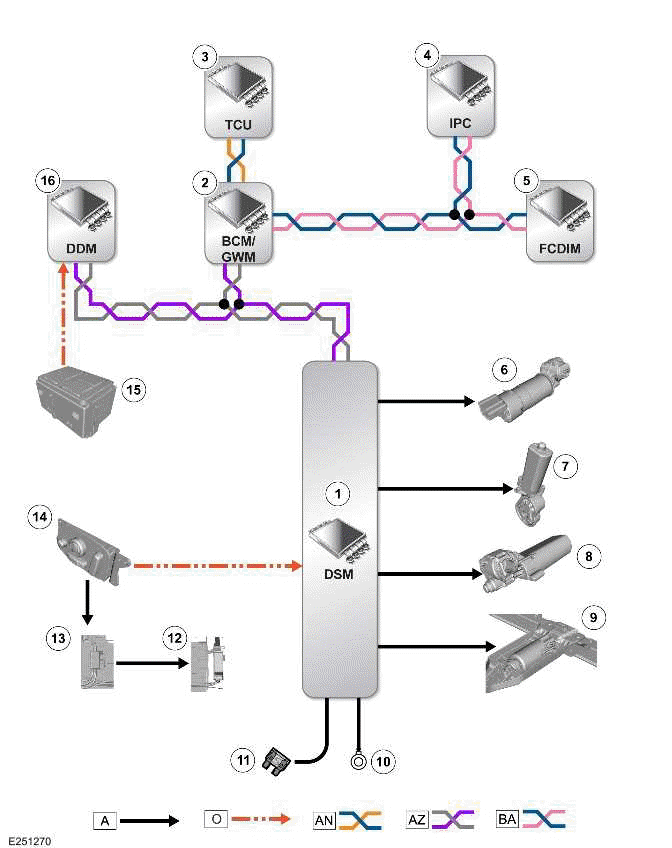

CONTROL DIAGRAM - 2 OF 8 - DRIVER SEAT ADJUSTMENT WITH SEAT MEMORY

Seats - [+] 7 Seat Configuration

A = HARDWIRED: O = LIN: AN = HS CAN POWERTRAIN SYSTEMS BUS: AZ = HS CAN BODY SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.

  1. DSM
  2. BCM/ GWM
  3. TCU
  4. IPC
  5. FCDIM
  6. Front row seat cushion tilt motor
  7. Front row seat backrest recline motor
  8. Front row seat height motor
  9. Front row seat forward/rearward motor
  10. Ground
  11. Power supply
  12. Lumbar air pump
  13. Air reservoir valve block
  14. Front row seat switchpack
  15. Seat memory switch
  16. DDM

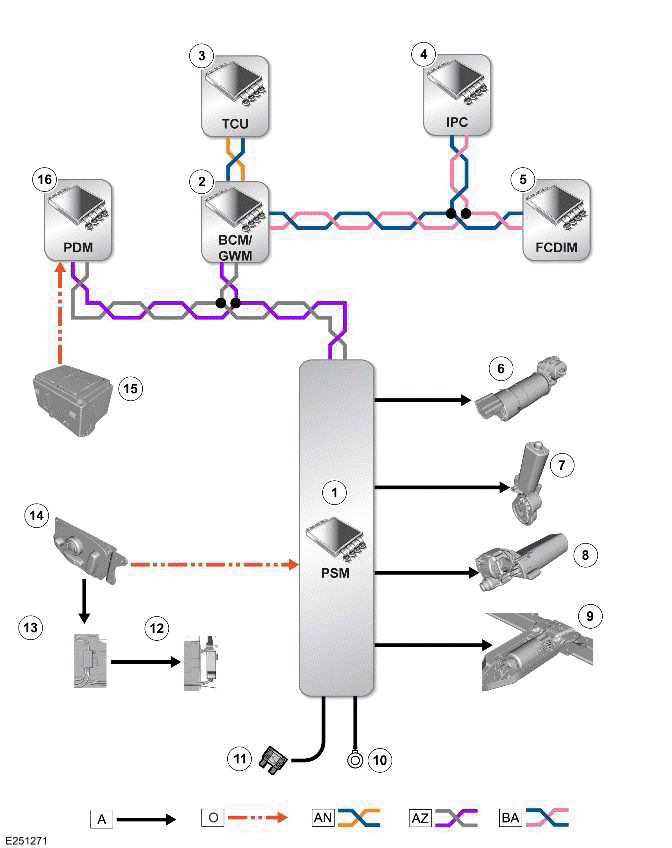

CONTROL DIAGRAM - 3 OF 8 - PASSENGER SEAT ADJUSTMENT WITH SEAT MEMORY

Seats - [+] 7 Seat Configuration

A = HARDWIRED: O = LIN: AN = HS CAN POWERTRAIN SYSTEMS BUS: AZ = HS CAN BODY SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.

  1. PSM
  2. BCM/ GWM
  3. TCU
  4. IPC
  5. FCDIM
  6. Front row seat cushion tilt motor
  7. Front row seat backrest recline motor
  8. Front row seat height motor
  9. Front row seat forward/rearward motor
  10. Ground
  11. Power supply
  12. Lumbar air pump
  13. Air reservoir valve block
  14. Front row seat switchpack
  15. Seat memory switch
  16. PDM

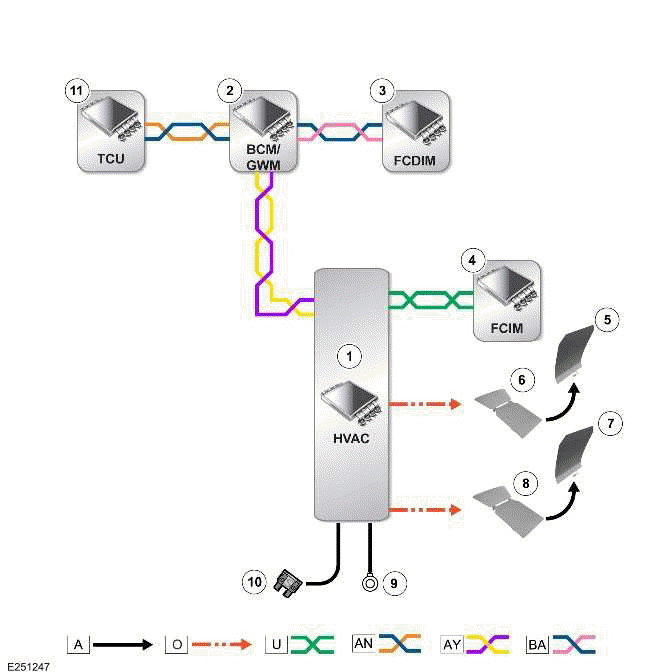

CONTROL DIAGRAM - 4 OF 8 - FRONT ROW SEAT HEATER

Seats - [+] 7 Seat Configuration

A = HARDWIRED: O = LIN: U = PRIVATE CAN: AN = HS CAN POWERTRAIN SYSTEMS BUS: AY = HS CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.

  1. HVAC control module
  2. BCM/ GWM
  3. FCDIM
  4. FCIM
  5. Front row seat backrest heater - Right
  6. Front row seat cushion heater - Right
  7. Front row seat backrest heater - Left
  8. Front row seat cushion heater - Left
  9. Ground
  10. Power supply
  11. TCU

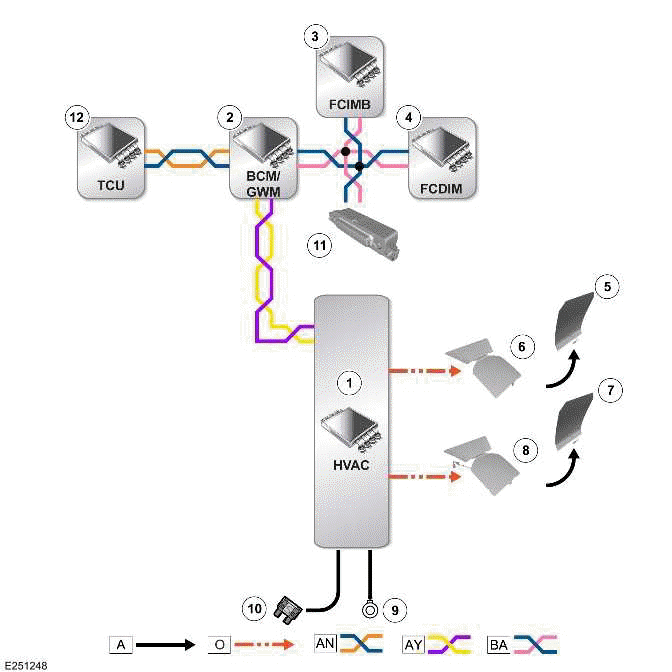

CONTROL DIAGRAM - 5 OF 8 - SECOND ROW SEAT HEATER

Seats - [+] 7 Seat Configuration

A = HARDWIRED: O = LIN: AN = HS CAN POWERTRAIN SYSTEMS BUS: AY = HS CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.

  1. HVAC control module
  2. BCM/ GWM
  3. FCIMB (if equipped)
  4. FCDIM
  5. Second row seat backrest heater - Right
  6. Second row seat cushion heater - Right
  7. Second row seat backrest heater - Left
  8. Second row seat cushion heater - Left
  9. Ground
  10. Power supply
  11. Rear seat heater switch (if equipped)
  12. TCU

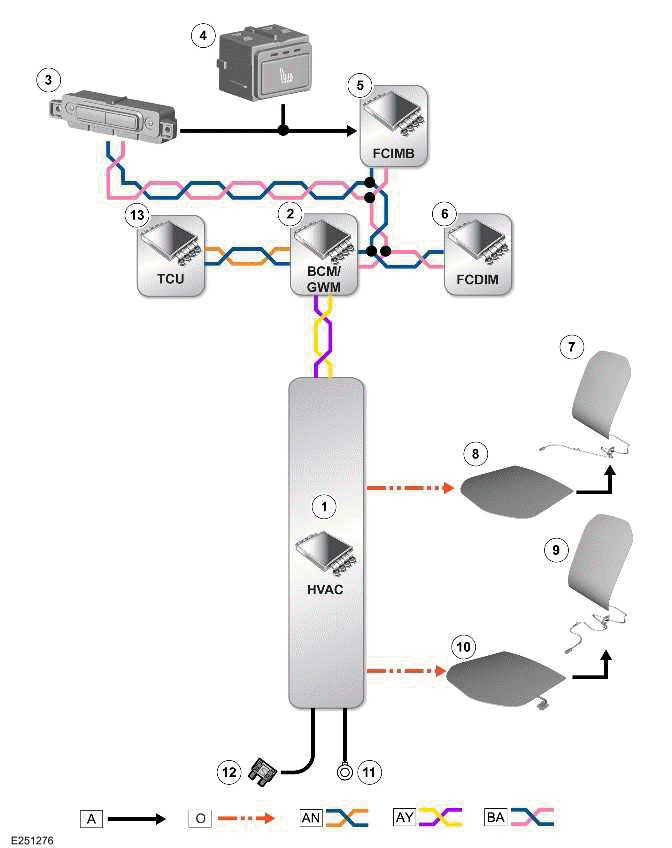

CONTROL DIAGRAM - 6 OF 8 - THIRD ROW SEAT HEATER

Seats - [+] 7 Seat Configuration

A = HARDWIRED: O = LIN: AN = HS CAN POWERTRAIN SYSTEMS BUS: AY = HS CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.

  1. HVAC control module
  2. BCM/ GWM
  3. Rear seat heater switch (if equipped)
  4. Third row seat heater switch
  5. FCIMB (if equipped)
  6. FCDIM
  7. Third row seat backrest heater - Left
  8. Third row seat cushion heater - Left
  9. Third row seat backrest heater - Right
  10. Third row seat cushion heater - Right
  11. Ground
  12. Power supply
  13. TCU

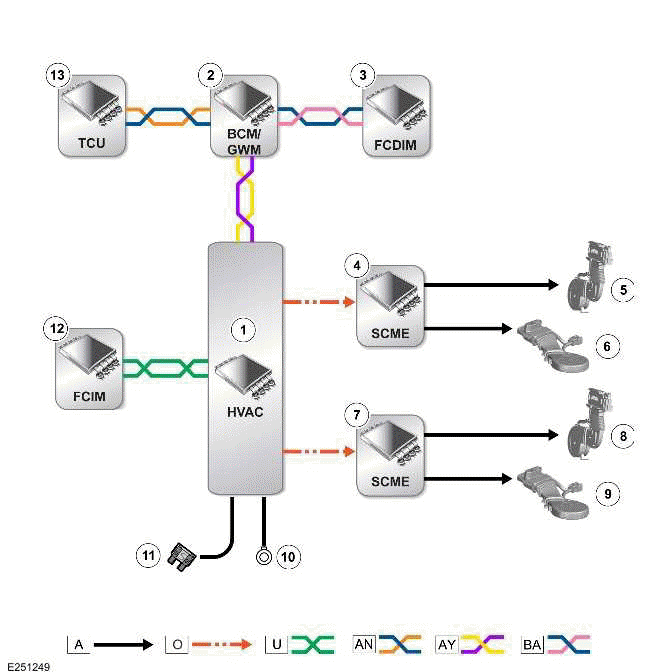

CONTROL DIAGRAM - 7 OF 8 - FRONT ROW CLIMATE SEAT

Seats - [+] 7 Seat Configuration

A = HARDWIRED: O = LIN: U = PRIVATE CAN: AN = HS CAN POWERTRAIN SYSTEMS BUS: AY = HS CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.

  1. HVAC control module
  2. BCM/ GWM
  3. FCDIM
  4. SCME- Driver
  5. Front row seat backrest climate assembly - Driver seat
  6. Front row seat cushion climate assembly - Driver seat
  7. SCME - Passenger
  8. Front row seat backrest climate assembly - Passenger seat
  9. Front row seat cushion climate assembly - Passenger seat
  10. Ground
  11. Power supply
  12. FCIM
  13. TCU

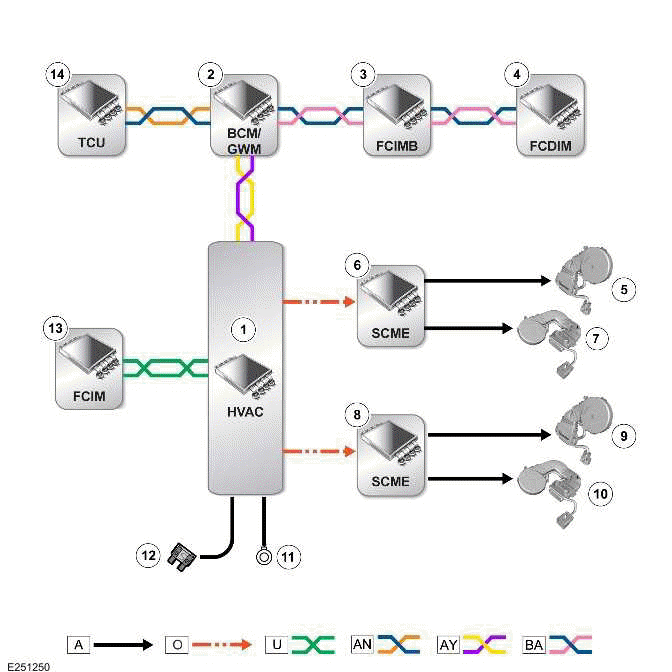

CONTROL DIAGRAM - 8 OF 8 - SECOND ROW CLIMATE SEAT

Seats - [+] 7 Seat Configuration

A = HARDWIRED: O = LIN: U = PRIVATE CAN: AN = HS CAN POWERTRAIN SYSTEMS BUS: AY = HS CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.

  1. HVAC control module
  2. BCM/ GWM
  3. FCIMB
  4. FCDIM
  5. Second row seat backrest climate assembly - Right
  6. SCME - Rear Right
  7. Second row seat cushion climate assembly - Right
  8. SCME - Rear Left
  9. Second row seat backrest climate assembly - Left
  10. Second row seat cushion climate assembly - Left
  11. Ground
  12. Power supply
  13. FCIM
  14. TCU
