Land Rover Defender: Seats
DIAGNOSIS AND TESTING
PRINCIPLES OF OPERATION
For a detailed description of the Seating system, refer to the relevant
Description and Operation section in the
workshop manual. REFER to: Seats - [+] 5 Seat Configuration (Seating,
Description and Operation).
INSPECTION AND VERIFICATION
CAUTION:
Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution
of control modules does not
guarantee confirmation of a fault, and may also cause additional faults in the
vehicle being tested and/or the
donor vehicle.
NOTES:
- If the control module or a component may be at fault and the vehicle
remains under manufacturer
warranty, refer to the Warranty Policy and Procedures manual, or determine
if any prior approval program
is in operation, prior to the installation of a new module/component.
- When performing voltage or resistance tests, always use a digital
multimeter that has the resolution ability
to view 3 decimal places. For example, on the 2 volts range can measure 1mV
or 2 K Ohm range can
measure 1 Ohm. When testing resistance always take the resistance of the
digital multimeter leads into
account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests.
- Verify the customer concern
- Visually inspect for obvious signs of damage and system integrity
Visual Inspection
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before
proceeding to the next step
- If the cause is not visually evident, verify the symptom and refer to
the Symptom Chart, alternatively check for
Diagnostic Trouble Code(s) and refer to the Diagnostic Trouble Code(s) (DTC)
Index
- Check the JLR claims submission system for open campaigns. Refer to the
corresponding bulletins and SSMs
which may be valid for the specific customer complaint and complete the
recommendations as required

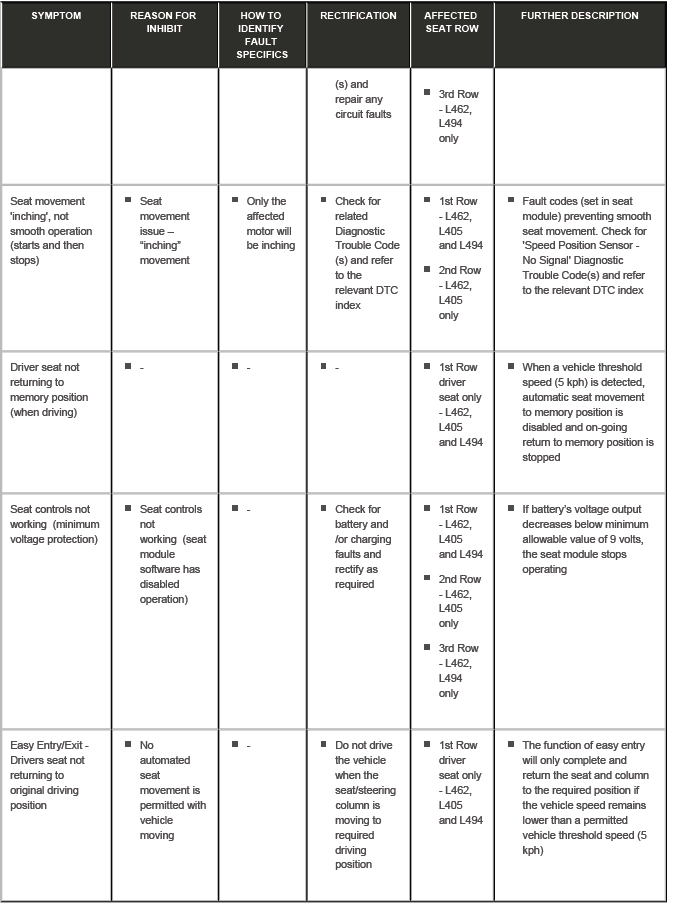

SEAT MOVEMENT INHIBITION CHECKS
If the customer is reporting issues with seat movements, first consult the
table below to check if the seat movement
functions may have been inhibited. If the issue cannot be rectified, proceed to
the pinpoint tests below:

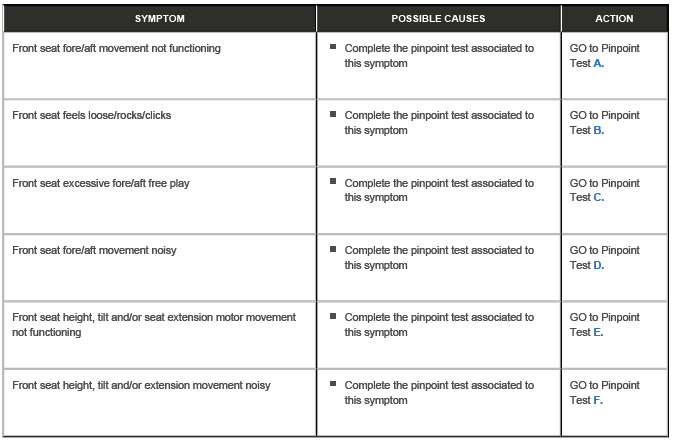

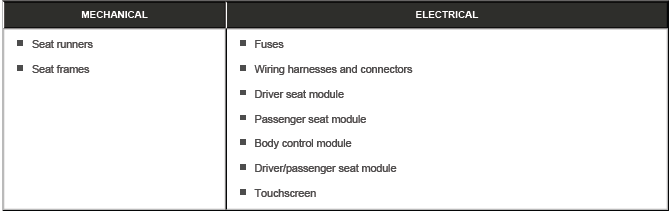

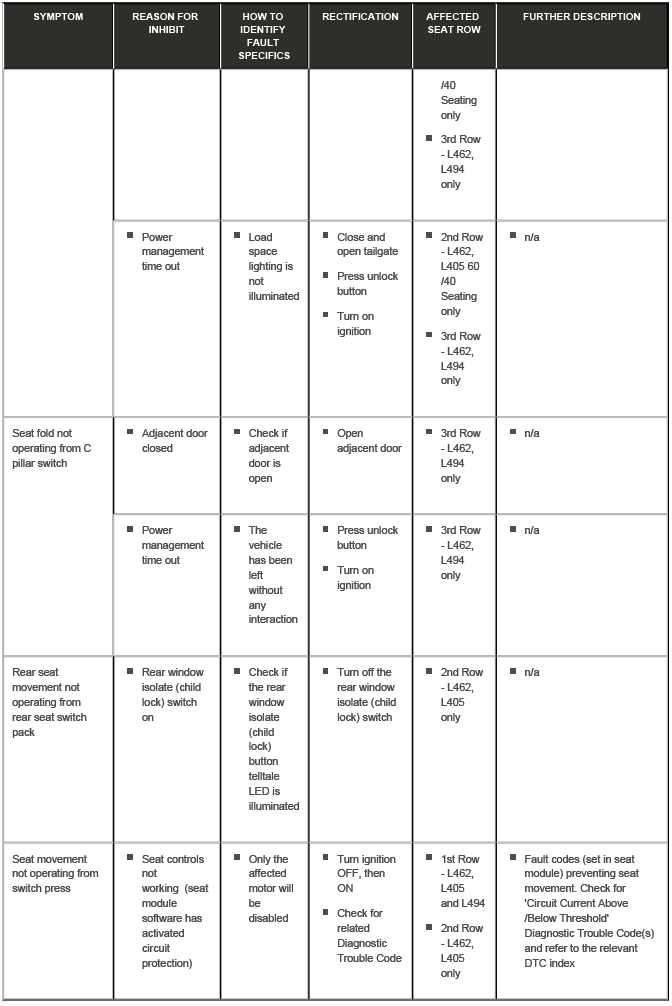

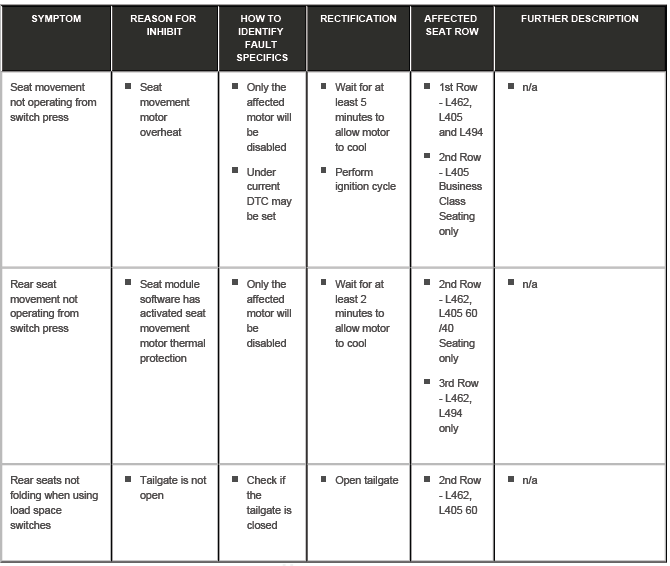

SYMPTOM CHARTS
Electrical Adjustment - Front Seats
PINPOINT TESTS

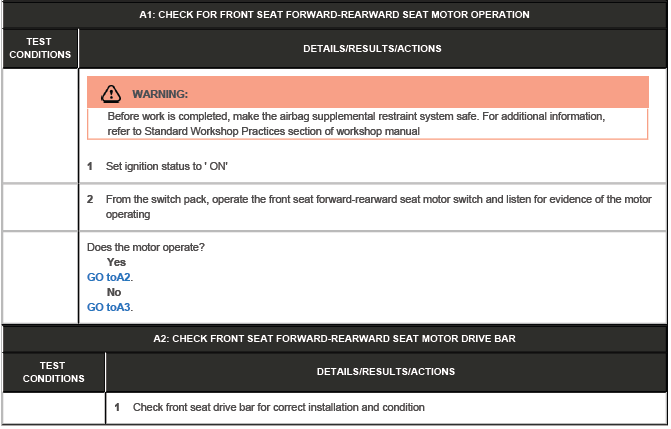

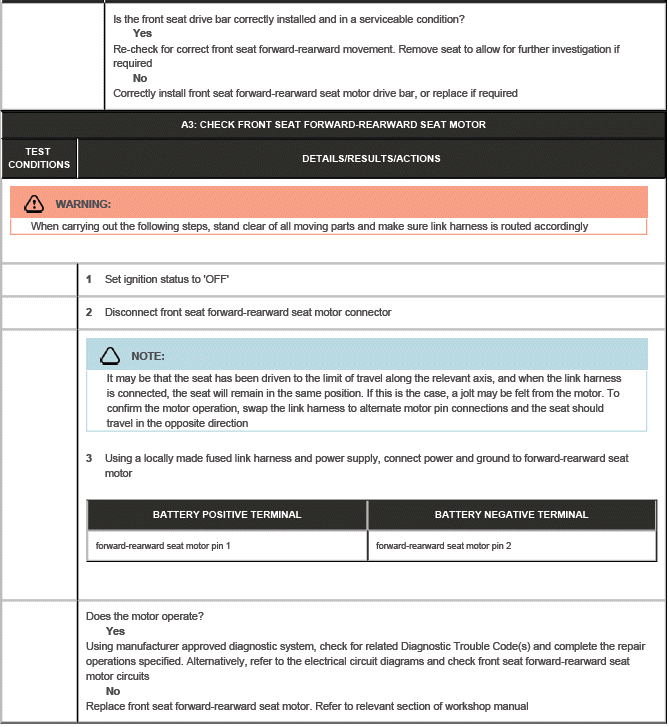

PINPOINT TEST A : FRONT SEAT FORE/AFT MOVEMENT NOT FUNCTIONING

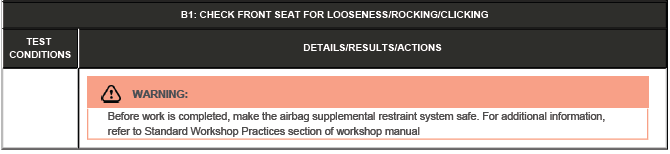

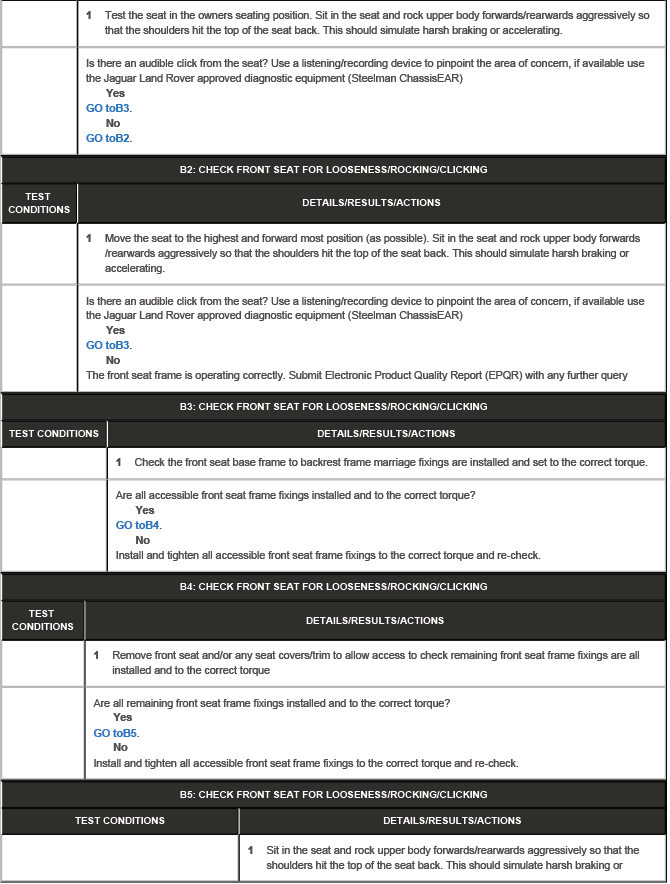

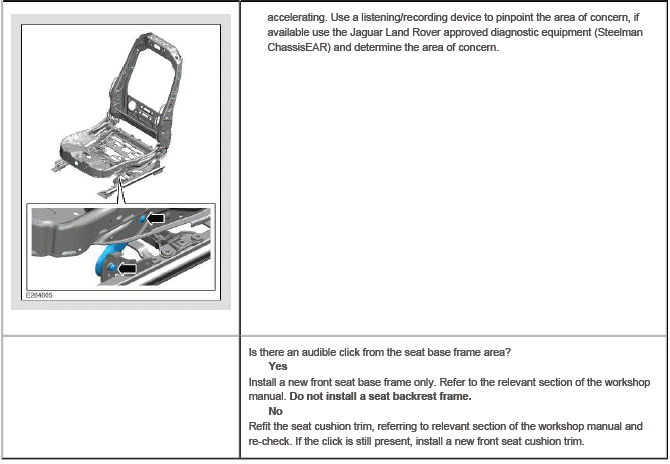

PINPOINT TEST B : FRONT SEAT FEELS LOOSE/ROCKS/CLICKS

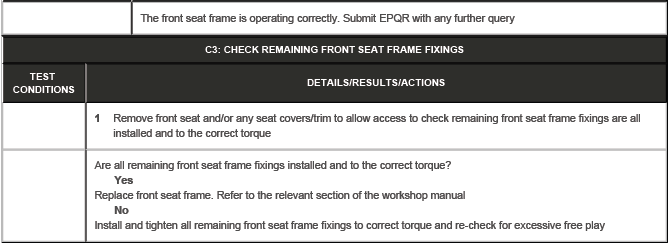

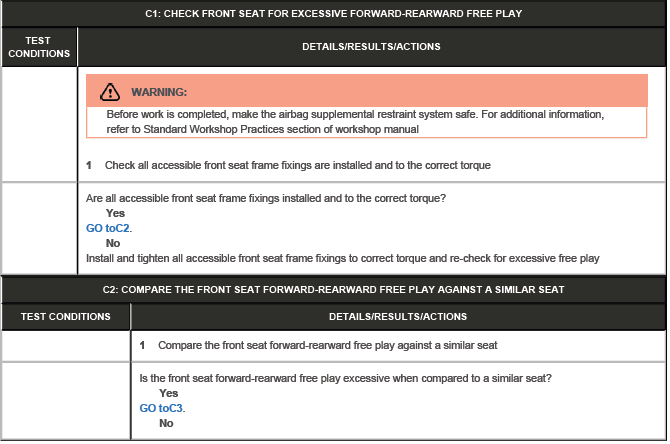

PINPOINT TEST C : FRONT SEAT EXCESSIVE FORWARD-REARWARD FREE PLAY

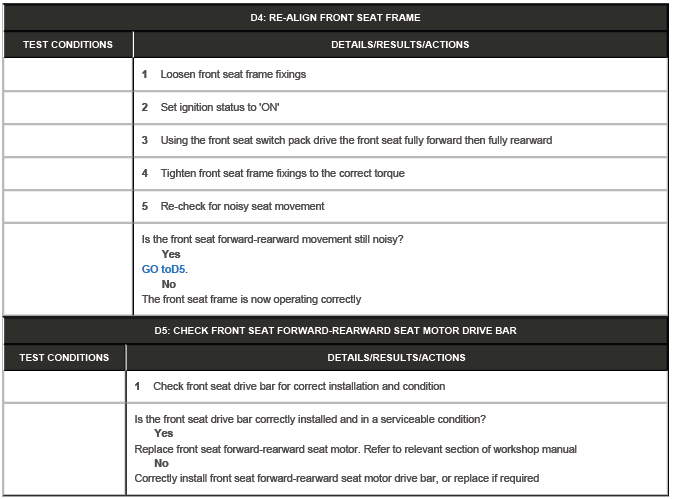

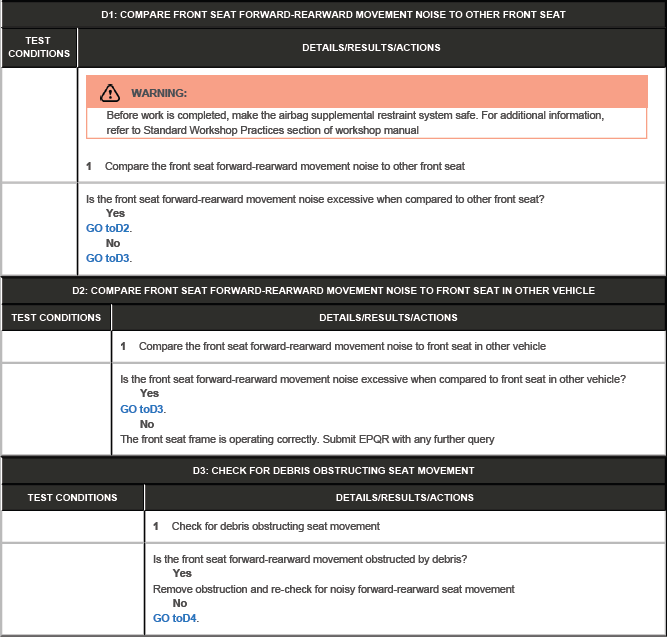

PINPOINT TEST D : FRONT SEAT FORWARD-REARWARD MOVEMENT NOISY

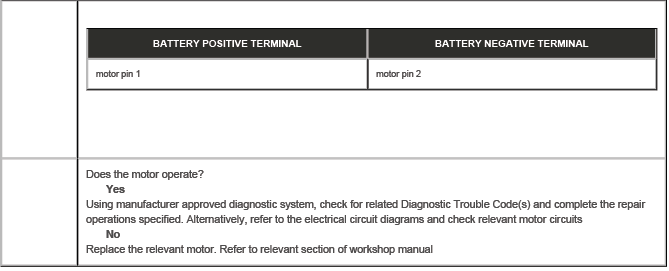

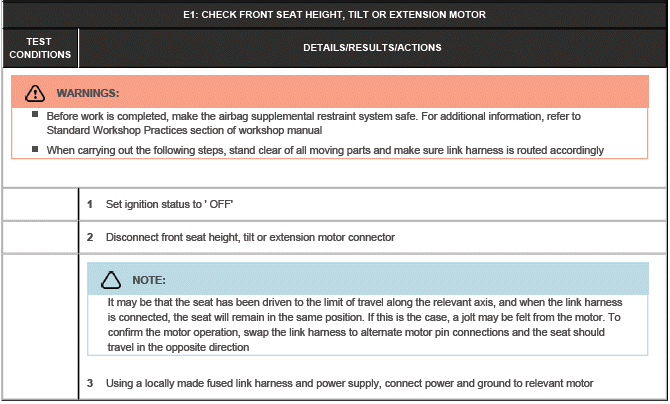

PINPOINT TEST E : FRONT SEAT HEIGHT, TILT AND/OR SEAT EXTENSION MOTOR
MOVEMENT NOT FUNCTIONING

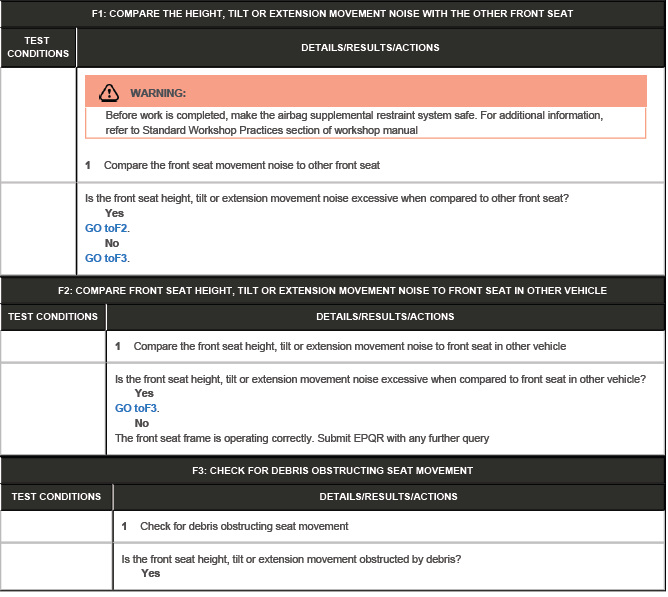

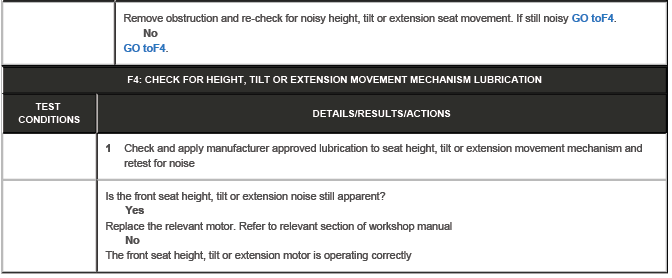

PINPOINT TEST F : FRONT SEAT HEIGHT, TILT AND/OR EXTENSION MOVEMENT NOISY
