Land Rover Defender: Seats - Vehicles With: Lumbar/Massage

Land Rover Defender 2020-2024 Service Manual / Body and Paint / Seating / Seats - Vehicles With: Lumbar/Massage

DIAGNOSIS AND TESTING

PRINCIPLES OF OPERATION

For a detailed description of the Seating system, refer to the relevant Description and Operation section in the workshop manual. REFER to: Seats - [+] 5 Seat Configuration (Seating, Description and Operation).

INSPECTION AND VERIFICATION

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor vehicle.

NOTES:

  1. Verify the customer concern
  2. Visually inspect for obvious signs of damage and system integrity

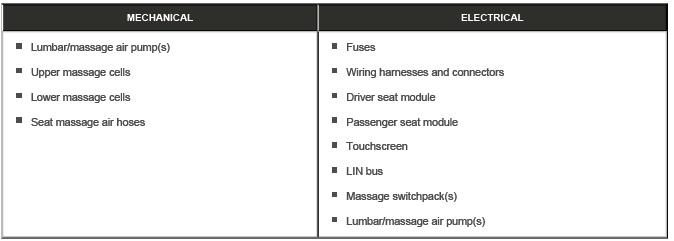

Visual Inspection

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

  1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step
  2. If the cause is not visually evident, verify the symptom and refer to the Symptom Chart, alternatively check for Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
  3. Check JLR claims submission system for open campaigns. Refer to the corresponding bulletins and SSMs which may be valid for the specific customer complaint and complete the recommendations as required

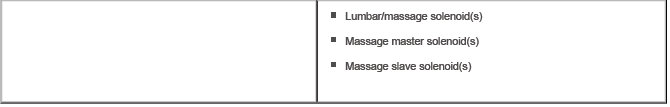

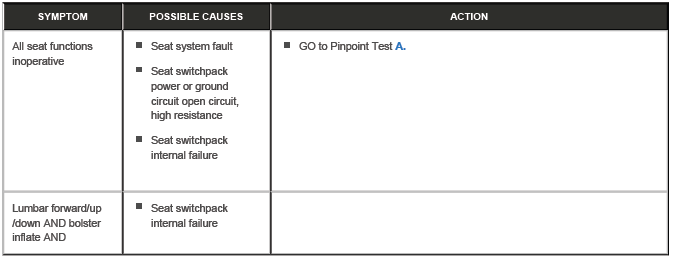

SYMPTOM CHARTS

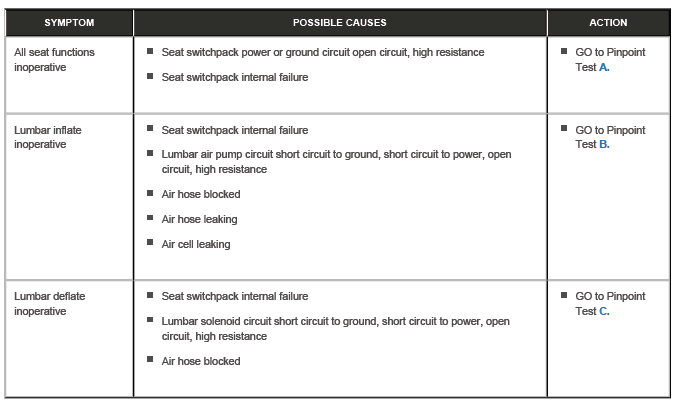

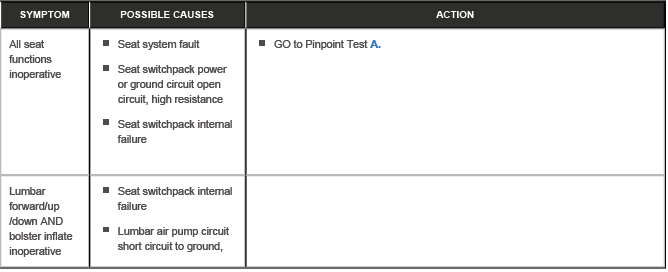

2-Way Lumbar - Non-memory Front Seats

NOTE: The Lumbar/Massage solenoid block is installed with an air exhaust valve that is designed to expel air under operating conditions. This is not an air leak and does not represent a solenoid block failure.

Seats - Vehicles With: Lumbar/Massage

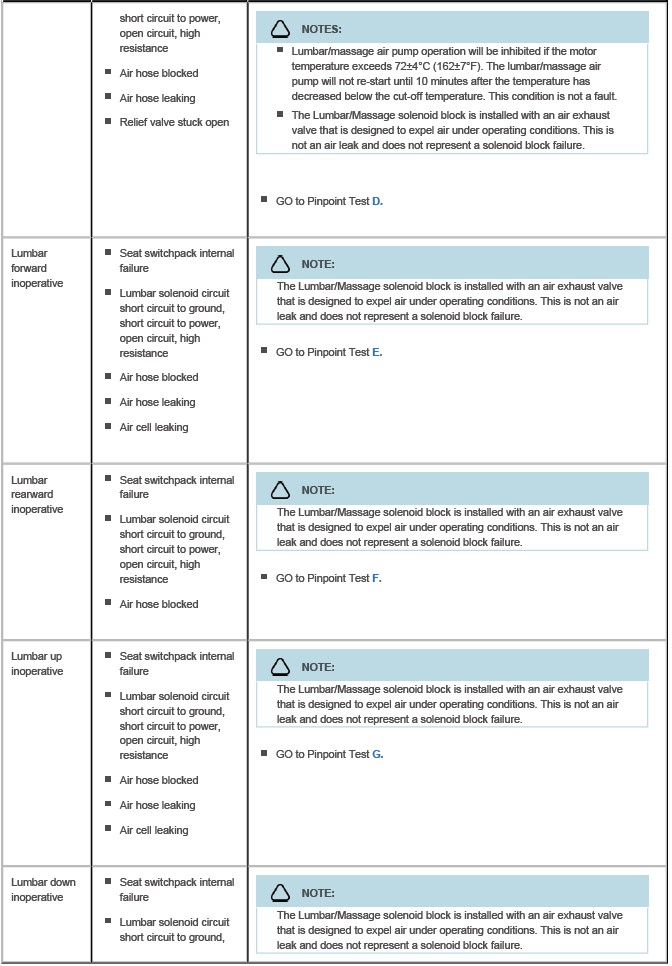

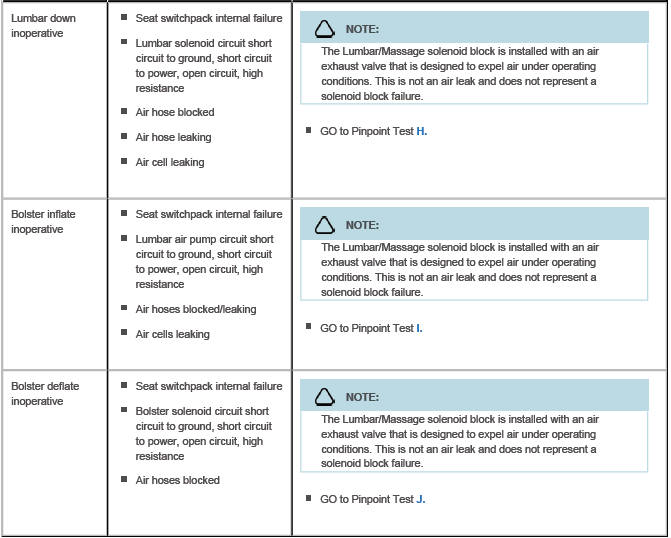

4-Way Lumbar and Bolster - Non-memory Front Seats

NOTE: The Lumbar/Massage solenoid block is installed with an air exhaust valve that is designed to expel air under operating conditions. This is not an air leak and does not represent a solenoid block failure.

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

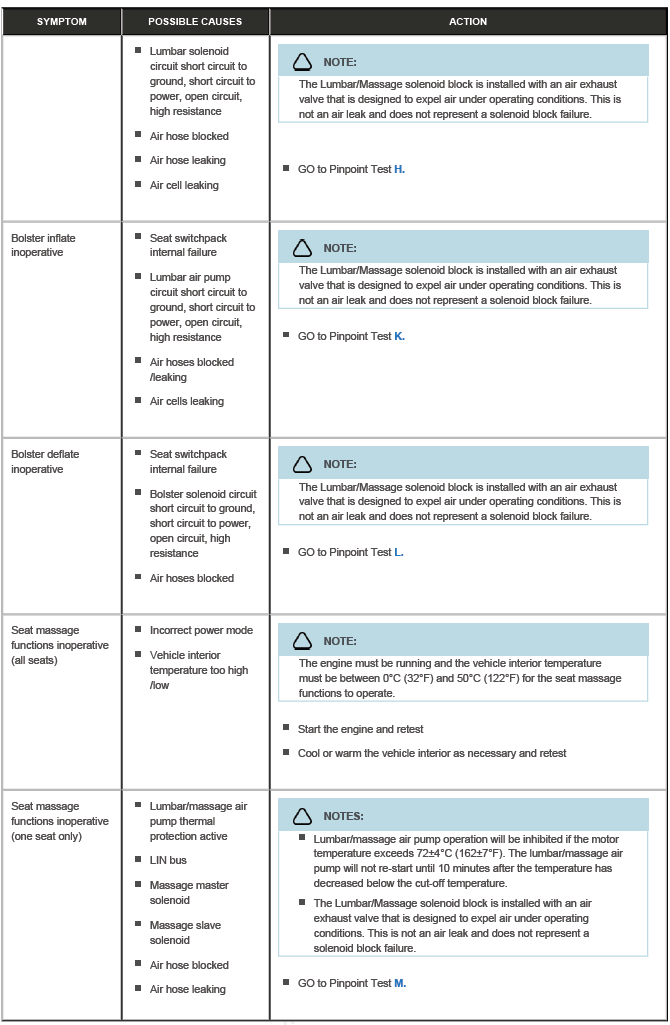

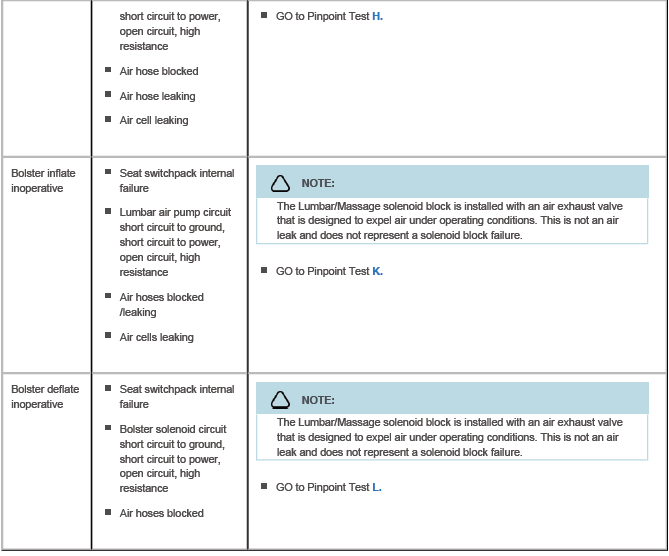

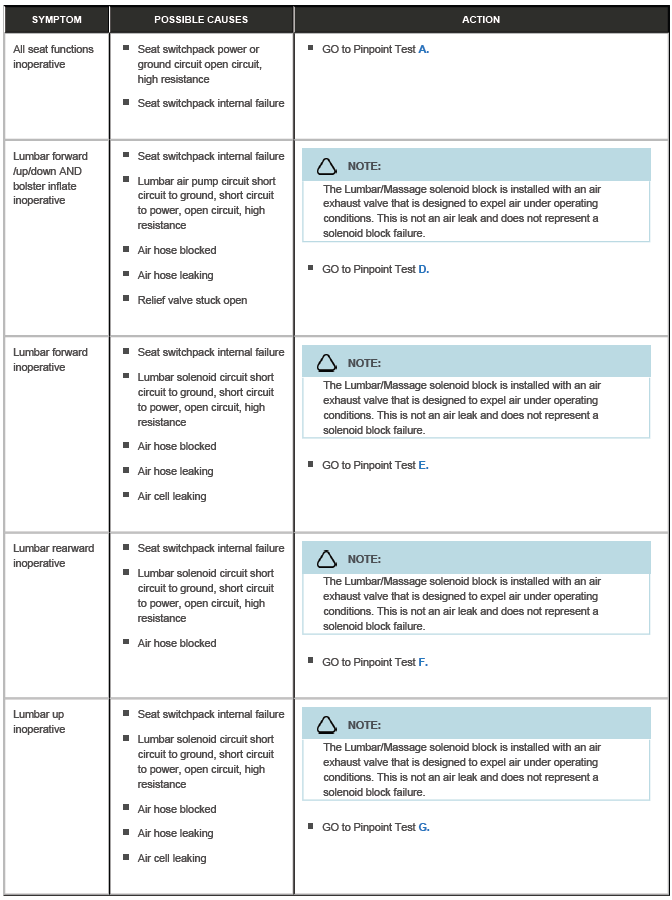

4-Way Lumbar and Bolster - Memory Front Seats

NOTE: The Lumbar/Massage solenoid block is installed with an air exhaust valve that is designed to expel air under operating conditions. This is not an air leak and does not represent a solenoid block failure.

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

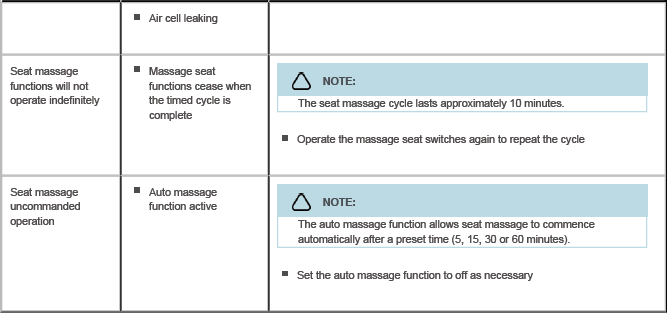

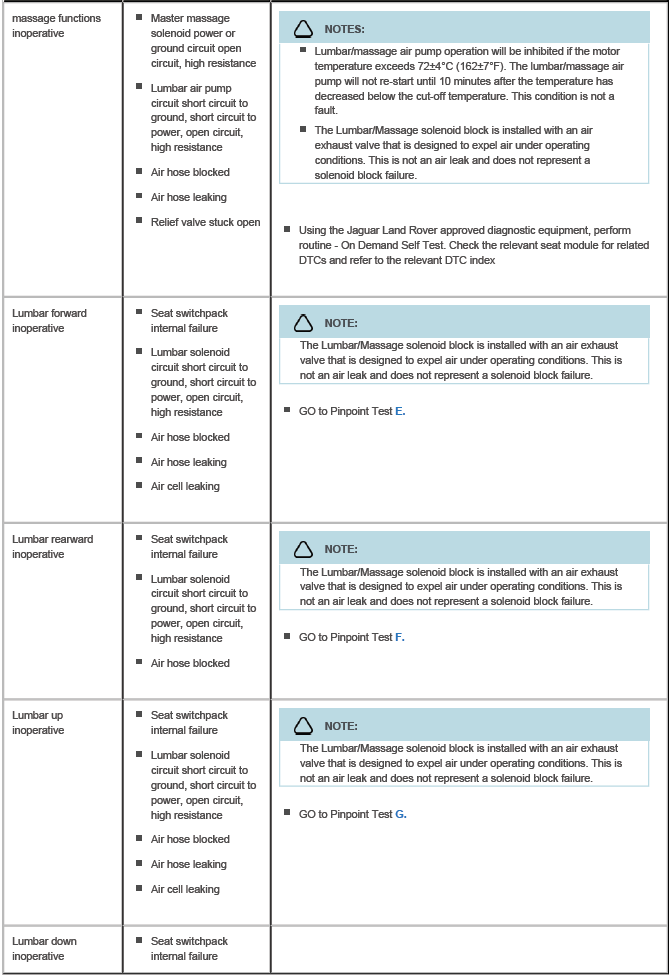

4-Way Lumbar, Bolster and Massage - Front Seats

NOTE: The Lumbar/Massage solenoid block is installed with an air exhaust valve that is designed to expel air under operating conditions. This is not an air leak and does not represent a solenoid block failure.

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

ON DEMAND SELF TEST (ODST)

The On Demand Self Test (ODST) is performed using the Jaguar Land Rover approved diagnostic equipment as follows:

  1. Begin a Diagnostic session
  2. Select 'Body'
  3. Select 'Seating'
  4. Select the relevant seat
  5. Run the On Demand Self Test (ODST) application

PINPOINT TESTS

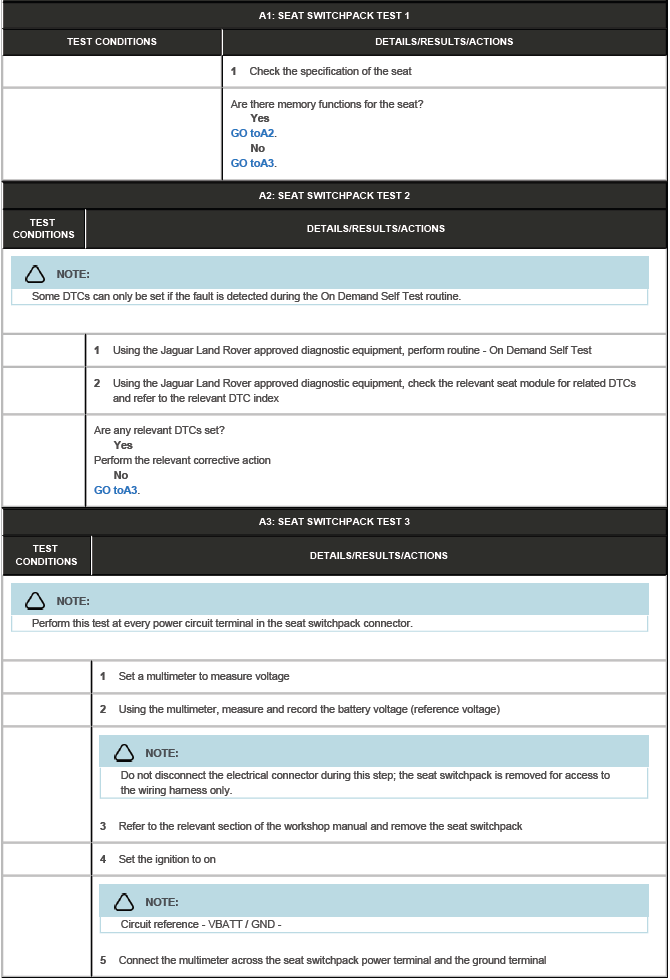

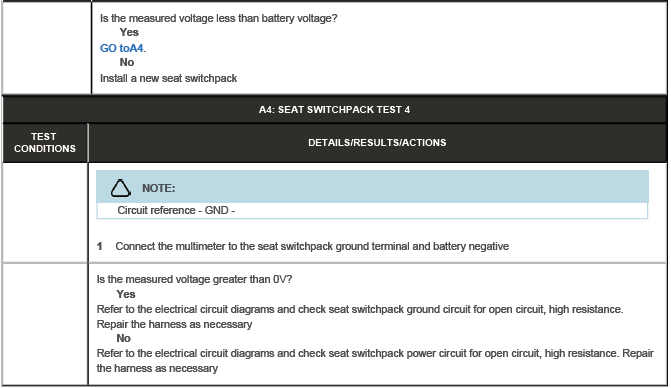

PINPOINT TEST A : SEAT SWITCHPACK TESTS

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

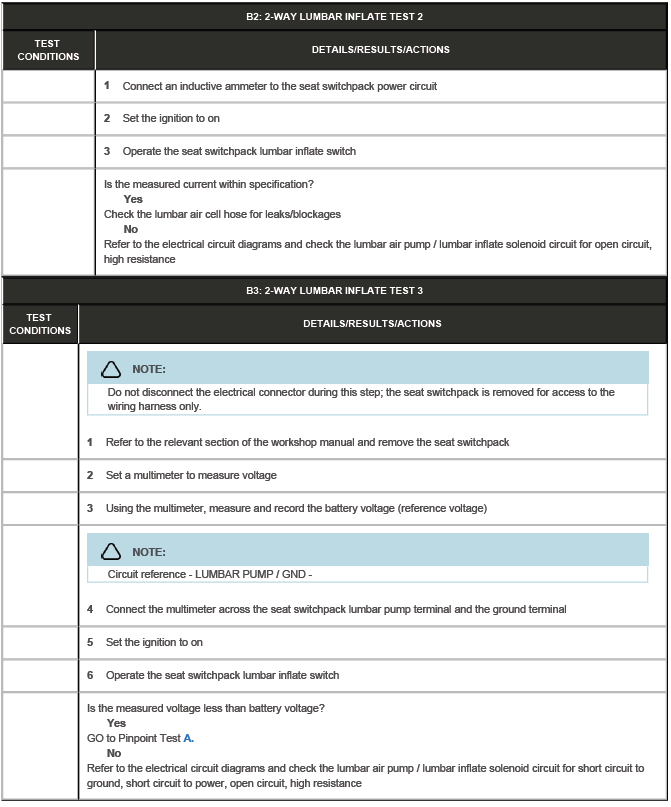

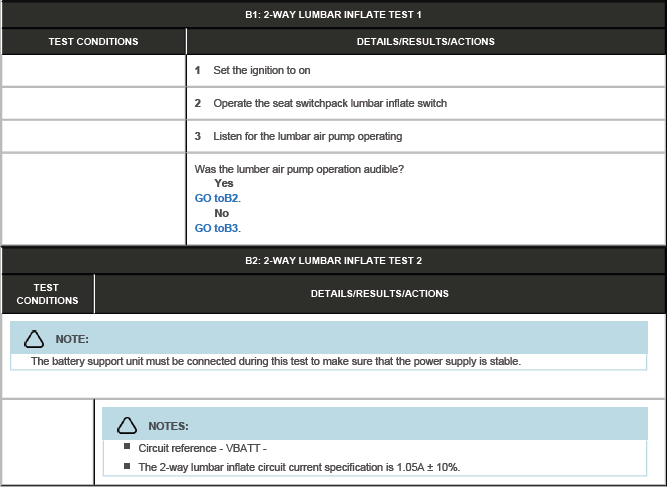

PINPOINT TEST B : 2-WAY LUMBAR INFLATE TESTS

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

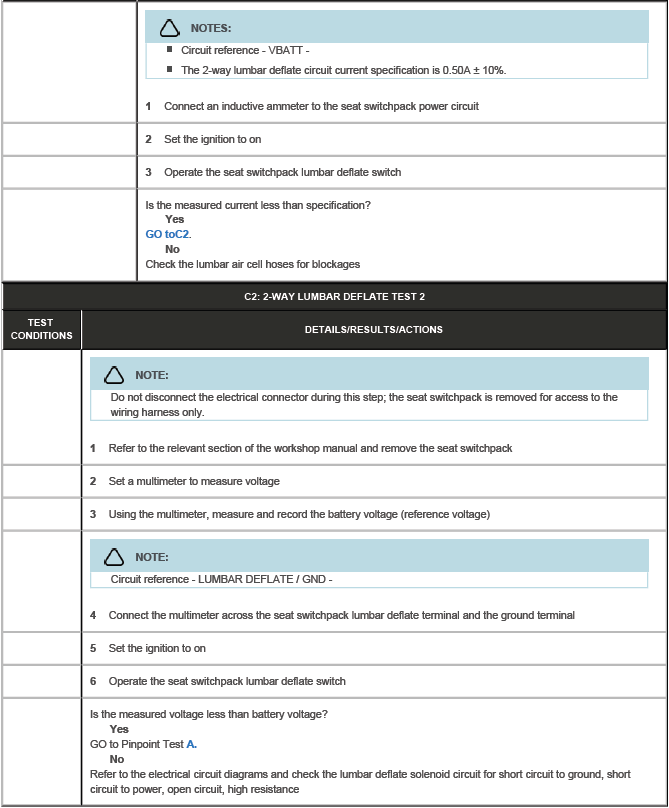

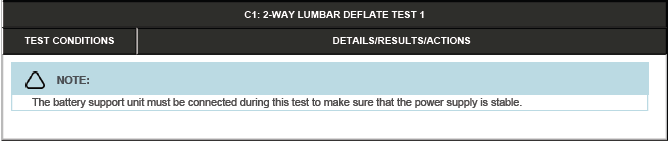

PINPOINT TEST C : 2-WAY LUMBAR DEFLATE TESTS

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

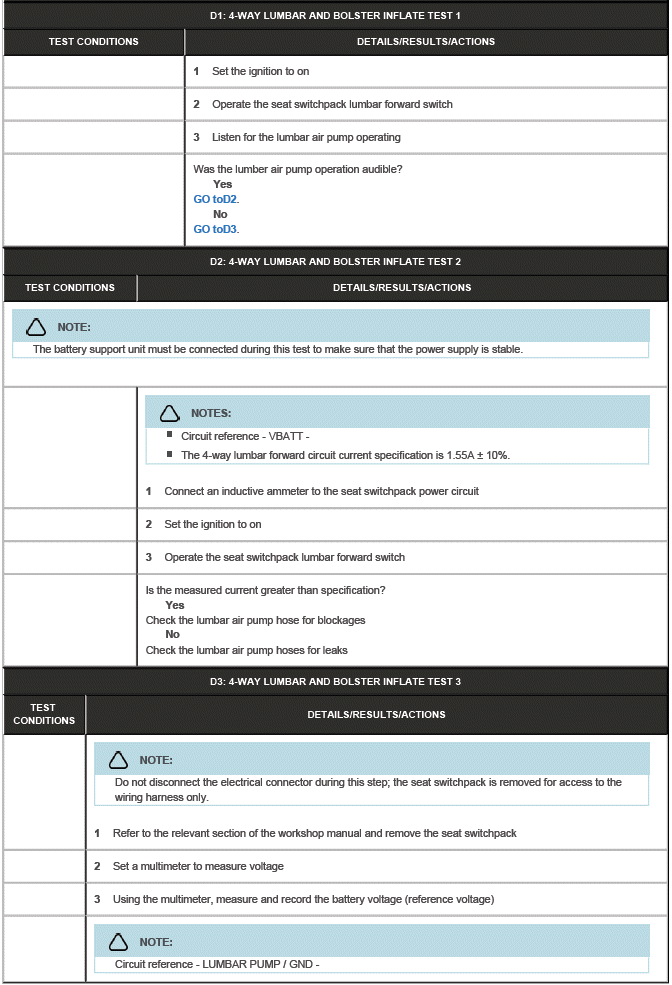

PINPOINT TEST D : 4-WAY LUMBAR AND BOLSTER INFLATE TESTS

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

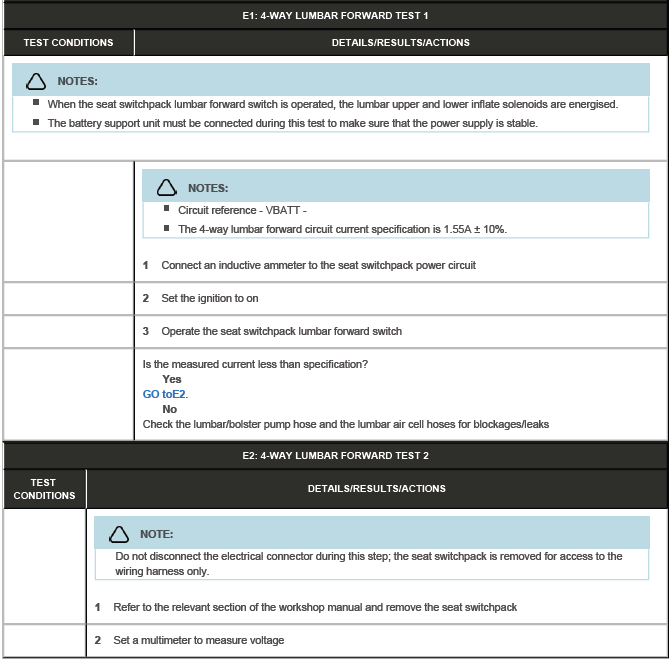

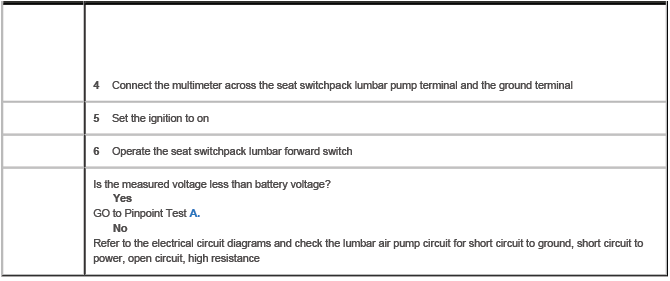

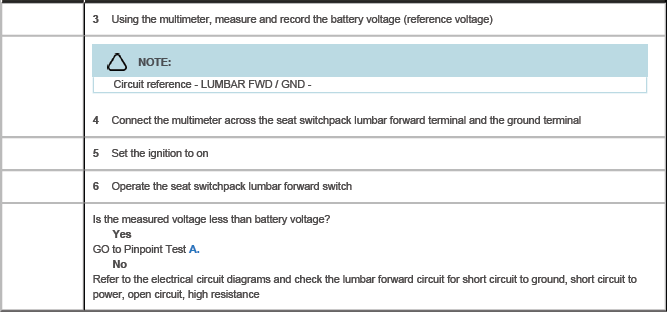

PINPOINT TEST E : 4-WAY LUMBAR FORWARD TESTS

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

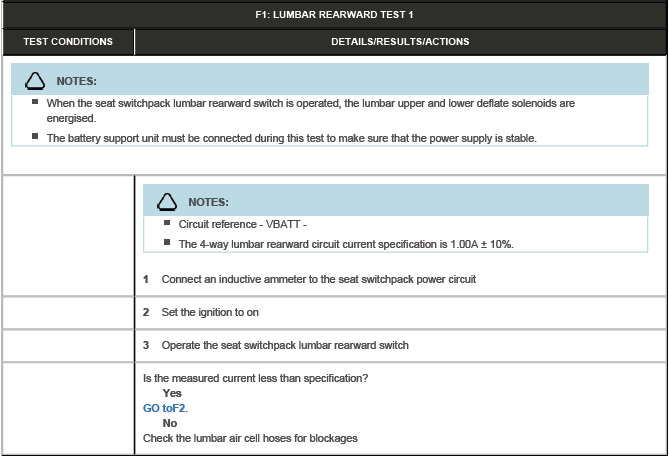

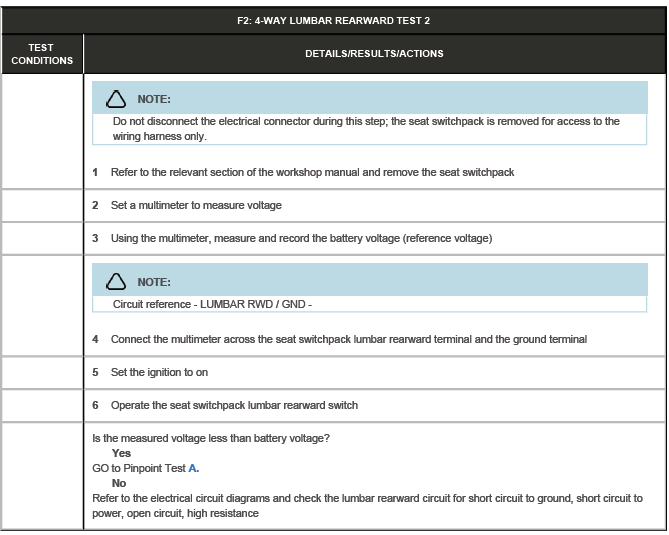

PINPOINT TEST F : 4-WAY LUMBAR REARWARD TESTS

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

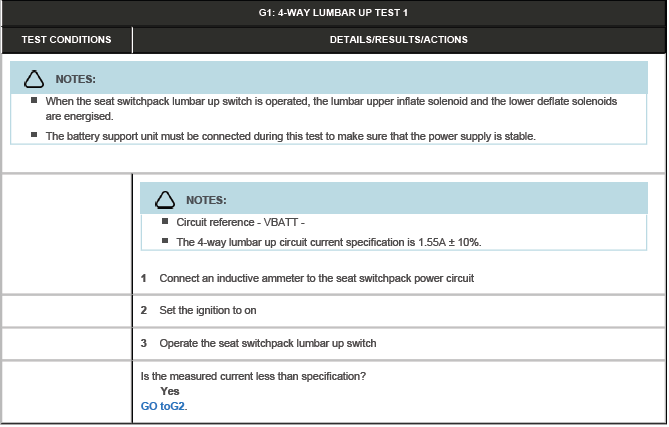

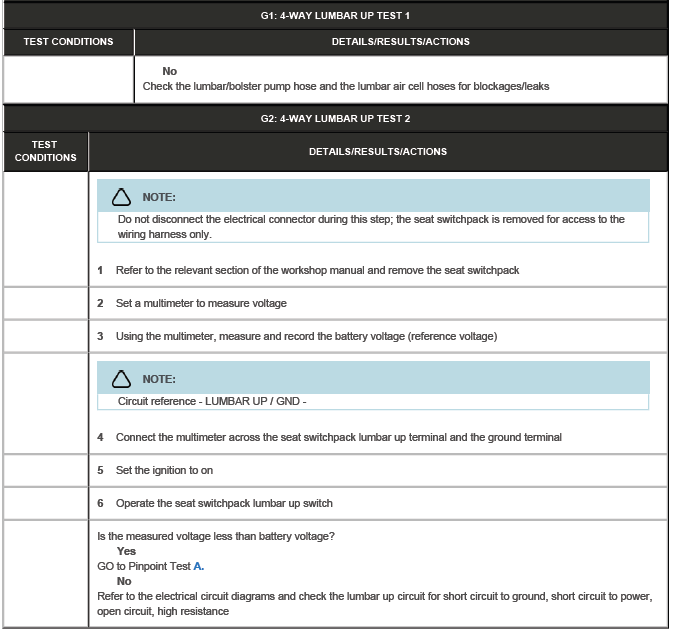

PINPOINT TEST G : 4-WAY LUMBAR UP TESTS

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

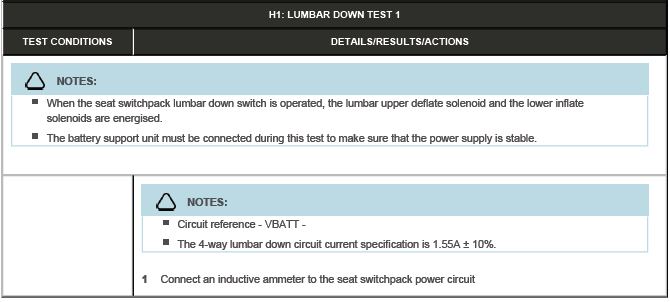

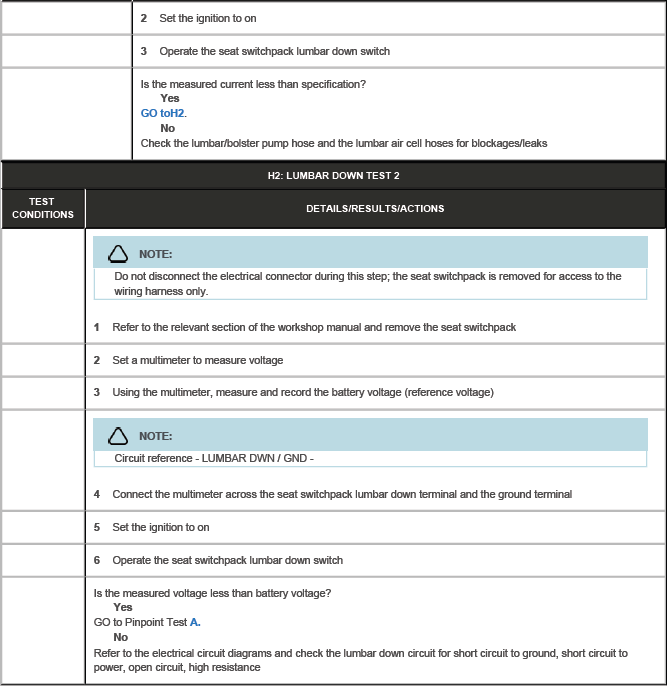

PINPOINT TEST H : 4-WAY LUMBAR DOWN TESTS

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

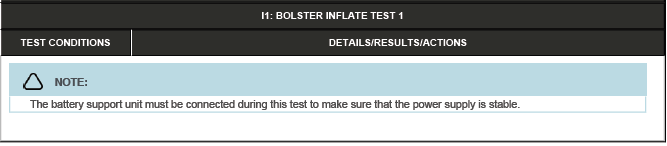

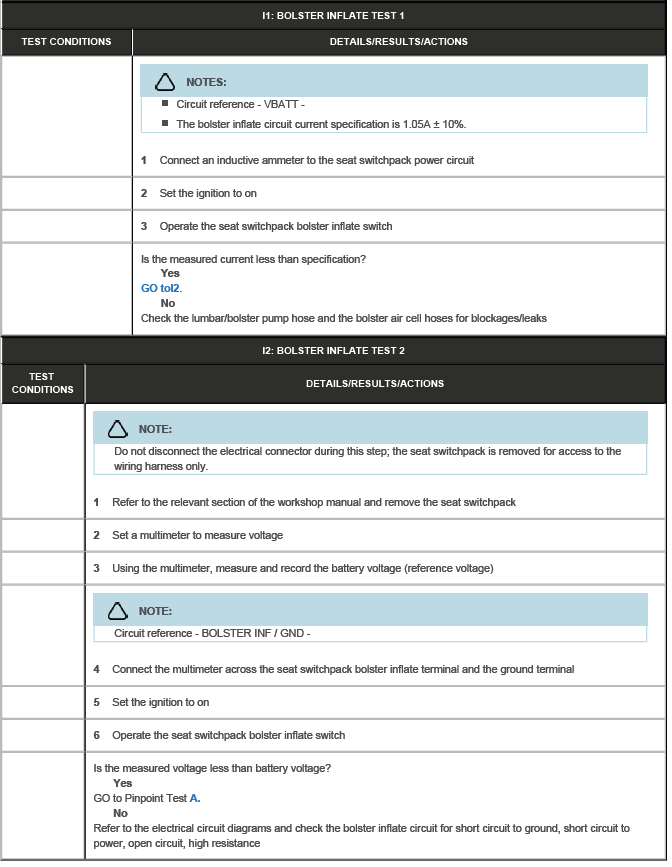

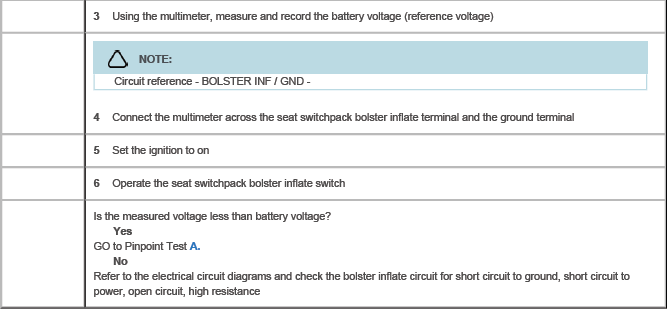

PINPOINT TEST I : BOLSTER INFLATE TESTS

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

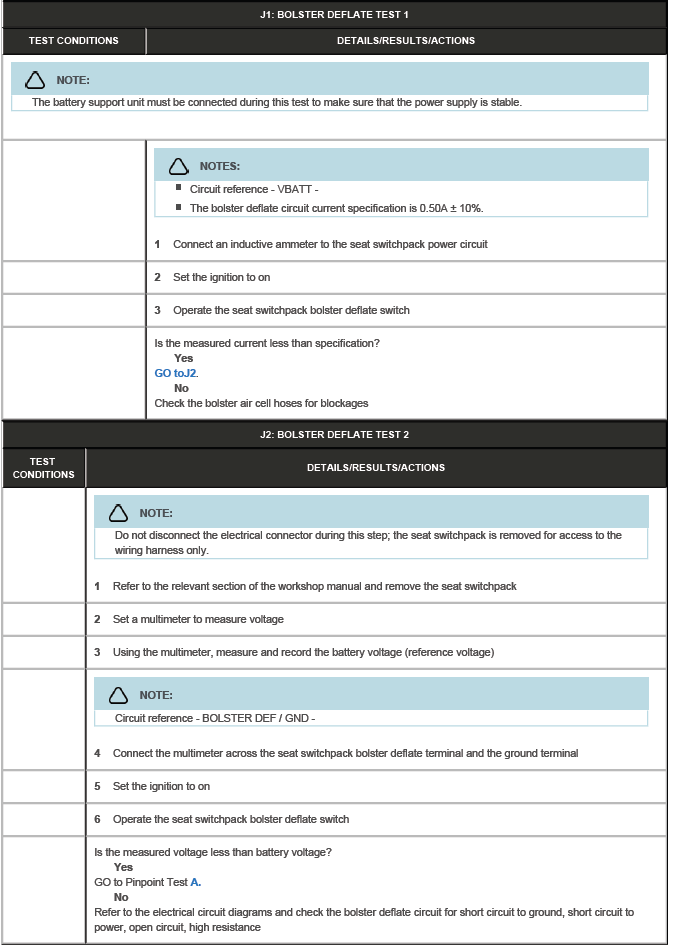

PINPOINT TEST J : BOLSTER DEFLATE TESTS

Seats - Vehicles With: Lumbar/Massage

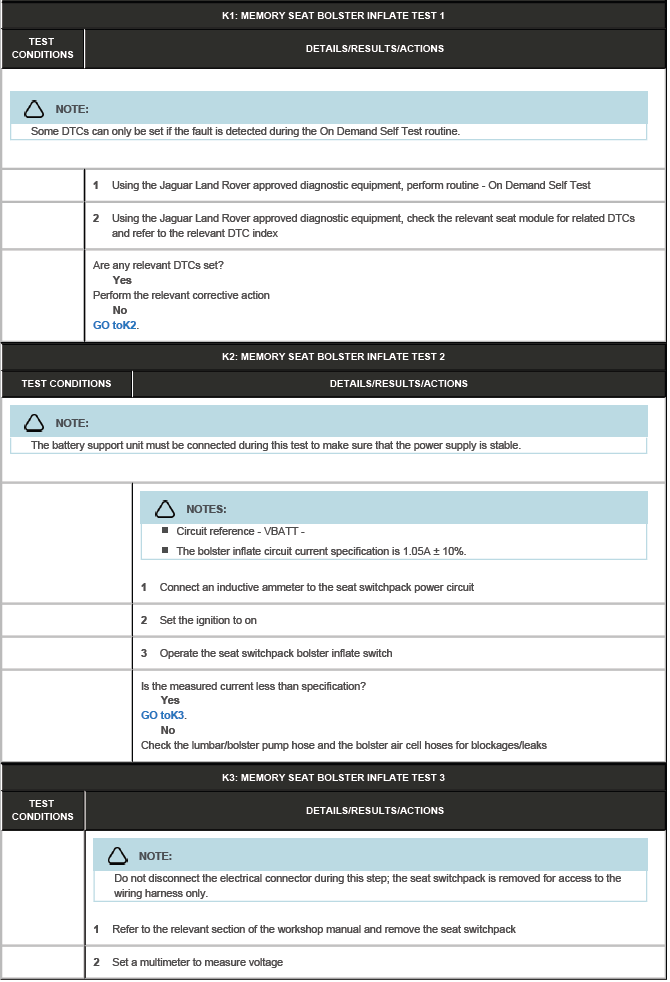

PINPOINT TEST K : MEMORY SEAT BOLSTER INFLATE TESTS

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

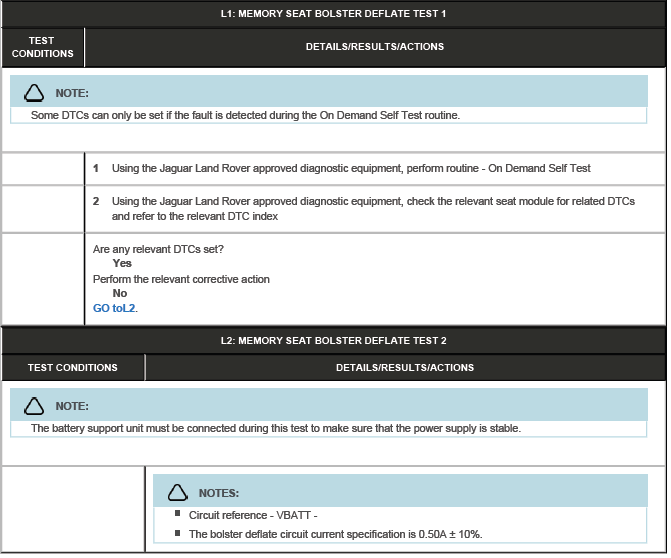

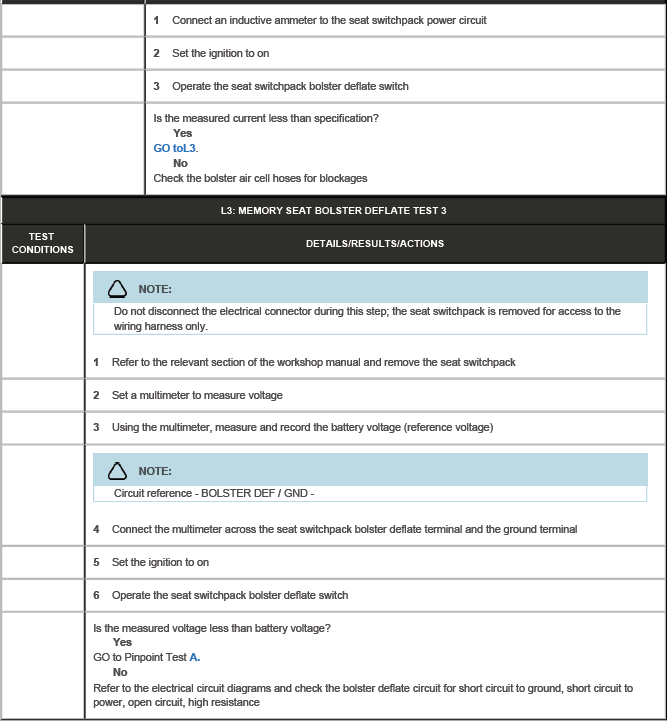

PINPOINT TEST L : MEMORY SEAT BOLSTER DEFLATE TESTS

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage

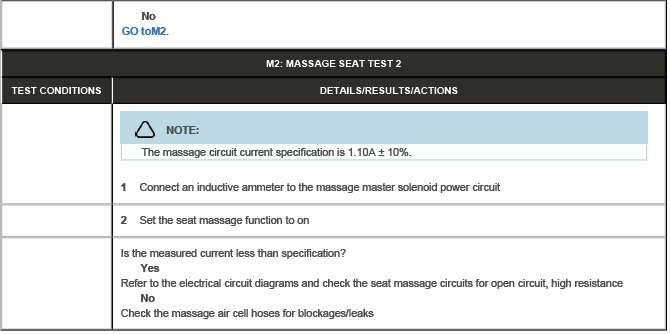

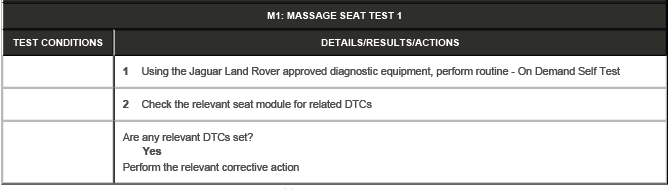

PINPOINT TEST M : MASSAGE SEAT TESTS

Seats - Vehicles With: Lumbar/Massage

Seats - Vehicles With: Lumbar/Massage
