Land Rover Defender: Second Row Seat Track Cover Trim
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Remove the second row right seat.
3. Remove the second row left seat.

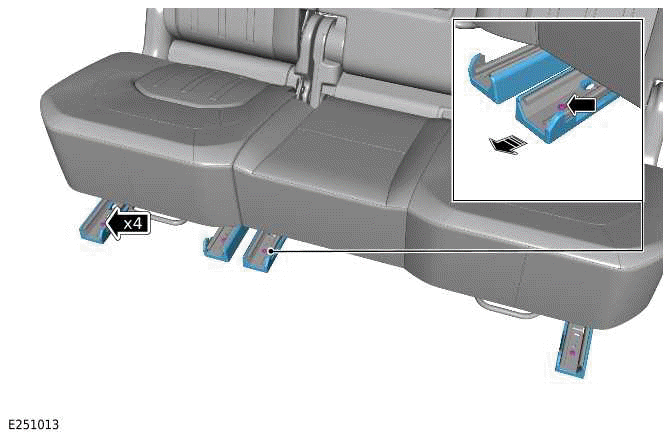

4.
- Remove the 4 bolts.
- Remove the 4 cover trims from the second row seat tracks.
INSTALLATION
1.
- Install the 4 cover trims to the second row seat tracks.
- Install and tighten the 4 bolts.
Torque: 1.4Nm
2. Install the second row right seat.
3. Install the second row left seat.
4. Connect the startup battery ground cable.
