Land Rover Defender: Third Row Seat Head Restraint
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Seating / Third Row Seat Head Restraint
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Remove the third row seat backrest cover.
2.
.png)

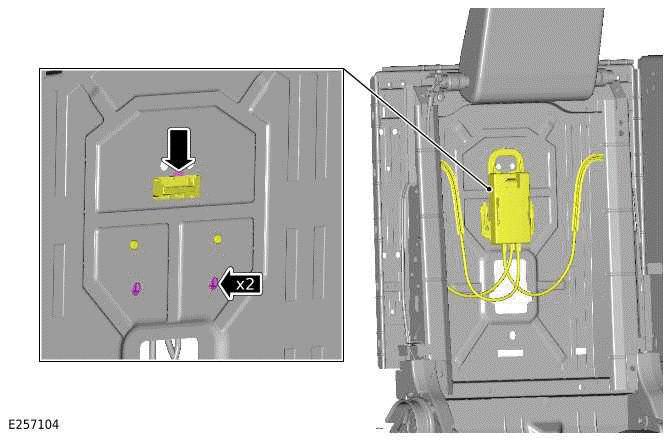

Release the latch from the 3 clips.
3.
.png)

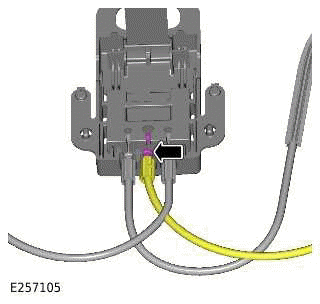

Release the head restraint latch cable.
4.
.png)

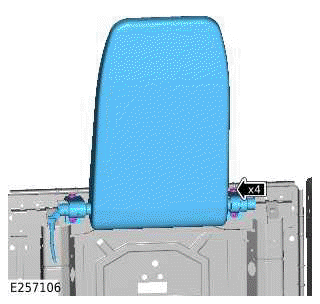

- Remove the 4 bolts.
- Remove the third row seat head restraint.
INSTALLATION
1.
- Install the third row seat head restraint.
- Install and tighten the 4 bolts.
Torque: 10Nm
2. Install the head restraint latch cable.
3. Install the latch to the 3 clips.
4. Install the third row seat backrest cover.
