REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
.png)
307-613
Holding Pins, Torque Converter
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Remove the transmission.
3.
CAUTION: Be prepared to collect escaping fluids.

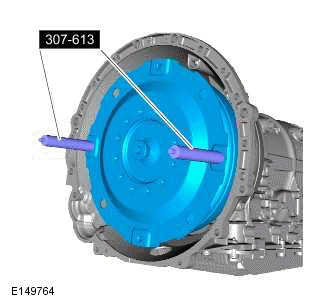

.png)
Use the special tools to remove the torque converter.
Special Tool(s): 307-613
INSTALLATION
1.
.png)
Use the special tools to install the torque converter.
Special Tool(s): 307-613
2.
NOTE: Make sure that the torque converter is fully engaged to the transmission.

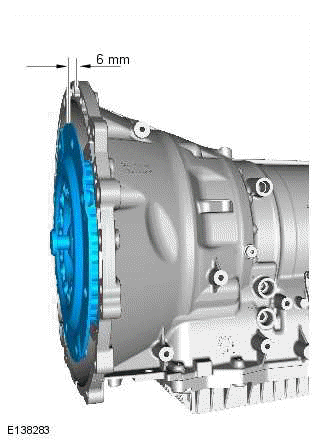

.png)
Make sure the torque converter is fitting as illustrated.
3. Install the transmission.
