Land Rover Defender: Transmission Fluid Pan
Land Rover Defender 2020-2025 Service Manual / Powertrain / Automatic Transmission / Transmission Fluid Pan
REMOVAL AND INSTALLATION
PART(S)
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Drain the transmission fluid.
3. Remove the transmission support crossmember.
4.
CAUTIONS:
- Make sure that the area around the component is clean and free of foreign material.
- Be prepared to collect escaping fluids.

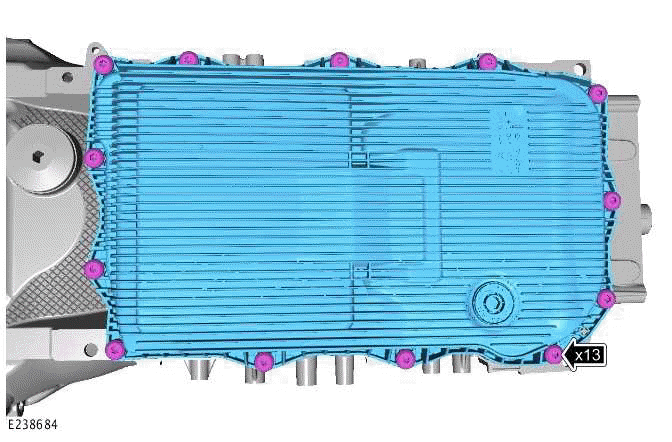

.png)
- Remove and discard the 13 bolt(s).
- Remove and discard the transmission fluid pan and gasket.
INSTALLATION
1.

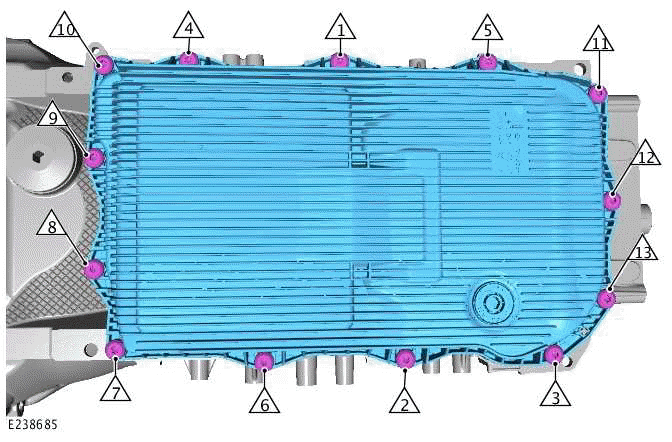

.png)
- Install the new transmission fluid pan and gasket.
- Install and tighten the 13 new bolt(s) in the sequence illustrated.
Renew Part: Transmission fluid pan, gasket and filter bolts Quantity: 1.
Torque: 10Nm
2. Install the transmission support crossmember.
3. Fill the transmission with fluid.
