Land Rover Defender: Steering Column - Diagnosis and
Testing
DIAGNOSIS AND TESTING
PRINCIPLES OF OPERATION
For a detailed description of the steering wheel heater, refer to the
relevant Description and Operation section in the
workshop manual.
INSPECTION AND VERIFICATION
CAUTION:
Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution
of control modules does not
guarantee confirmation of a fault, and may also cause additional faults in the
vehicle being tested and/or the
donor vehicle.
NOTES:
- If a control module or a component is out of specification and the
vehicle remains under manufacturer
warranty, refer to the Warranty Policy and Procedures manual, or determine
if any prior approval program
is in operation, prior to the installation of a new module/component.
- Generic scan tools may not read the codes listed, or may read only
5-digit codes. Match the 5 digits from
the scan tool to the first 5 digits of the 7-digit code listed to identify
the fault (the last 2 digits give extra
information read by the Jaguar Land Rover approved diagnostic equipment).
- When performing voltage or resistance tests, always use a digital
multimeter that has the resolution ability
to view 3 decimal places. For example, on the 2 volts range can measure 1mV
or 2 K Ohm range can
measure 1 Ohm. When testing resistance always take the resistance of the
digital multimeter leads into
account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests.
- Inspect connectors for signs of water ingress, and pins for damage
and/or corrosion.
- If DTCs are recorded and after performing the pinpoint tests, a fault
is not present, an intermittent concern
may be the cause. Always check for loose connections and corroded terminals.
- Verify the customer concern
- Visually inspect for obvious signs of damage and system integrity
Visual Inspection
ELECTRICAL
- Fuses
- Wiring harness
- Loose or corroded connector(s)
- Steering wheel heater switch
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before
proceeding to the next step
- If the cause is not visually evident, verify the symptom and refer to
the Symptom Chart, alternatively check for
Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
- Check the JLR claims submission system for open campaigns. Refer to the
corresponding bulletins and SSMs
which may be valid for the specific customer complaint and complete the
recommendations as required

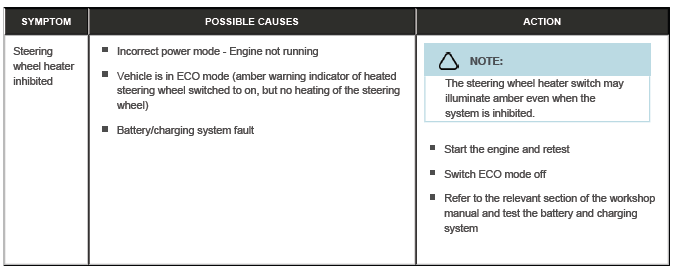

SYMPTOM CHART
Steering Column Service Position
GENERAL PROCEDURES
ACTIVATION
NOTES:
- The electric steering column lock actuator is not installed in all
vehicle markets however if in doubt these
instructions must be followed.
- The electric steering column lock actuator will automatically engage
3 minutes after the ignition switch is
set to the off position or when the doors are locked.
1. Set the ignition switch to the ON position and make sure the electric
steering column lock actuator is not
engaged.
2. Make sure that the Electric Park Brake (EPB) system is engaged.
3. Set the ignition switch to the OFF position.
4. Disconnect the start up battery ground cable.
5. Verify that the electric steering column lock actuator is not engaged.
