Land Rover Defender: Battery Support Unit Connection Procedure
GENERAL PROCEDURES
CONNECT
WARNINGS:
- Do not smoke or carry lighted tobacco or open flame of any type when
working on or near the vehicles
battery. Highly flammable vapors may be present and ignite. Failure to
follow these instructions may result
in personal injury.
- Avoid flames, sparks or lighted substances.
- Make sure that the battery is well ventilated while the battery
support unit is connected.
- Switch off the current from the battery support unit before making
any electrical connections or
disconnections.
- The battery support unit must never be connected to both battery
terminals. Always follow the safety
warnings and documentation of the device that is being used.
- The battery support unit ground cable must always be connected to the
vehicle last and disconnected
first.
CAUTION:
Do not do any software downloads with the vehicle in transit mode or with the
transit relay installed.
NOTES:
- This procedure covers connection instructions for the following
vehicles;
- LY / L560
- LR / L462
- LG / L405
- LW / L494
- LF / L359
- LA / L319
- LS / L320
- LM / L322
- LC / L550
- LV / L538
- LZ / L551
- This procedure covers operating instructions for the following
battery support units;
- Traction BSU2-50 / 125
- Fronius ACCTIVA Professional Flash
- MIdtronics CX-Pro 50
- Traction MPL-50
- Midtronics PSC 700S
1.
WARNING:
Make sure that the cables are connected in the correct order.
NOTES:
- This Step contains connection instructions for the following
vehicles;
- LZ / L551

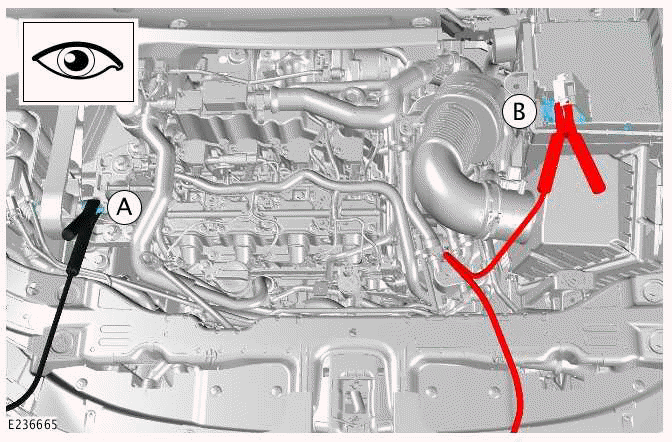

- Connect the battery support unit positive cable to the startup battery
positive terminal.
- Connect the battery support unit ground cable to the ground point as
illustrated.
2.
WARNING:
Make sure that the cables are connected in the correct order.
NOTES:
- This Step contains connection instructions for the following
vehicles;
- LY / L560

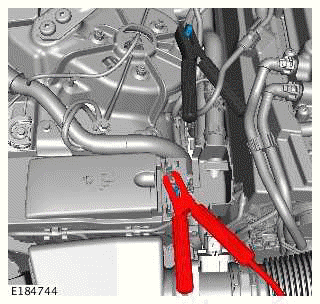

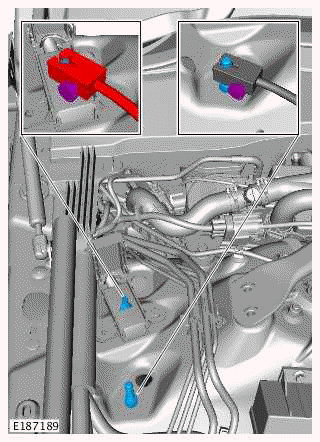

- Connect the battery support unit positive cable to the jump start
positive terminal.
- Connect the battery support unit ground cable to the jump start ground
terminal.
3.
WARNING:
Make sure that the cables are connected in the correct order.
NOTES:
- This Step contains connection instructions for the following
vehicles;
- LR / L462

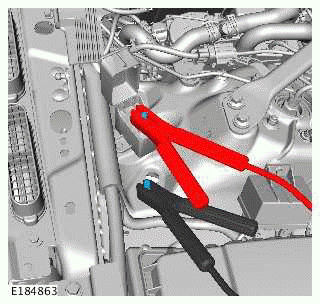

- Connect the battery support unit positive cable to the jump start
positive terminal.
- Connect the battery support unit ground cable to the jump start ground
terminal.
4.
WARNING:
Make sure that the cables are connected in the correct order.
NOTES:
- This Step contains connection instructions for the following
vehicles;
- Connect the battery support unit positive cable to the jump start
positive terminal.
- Connect the battery support unit ground cable to the jump start ground
terminal.
5.
WARNING:
Make sure that the cables are connected in the correct order.
NOTES:
- This Step contains connection instructions for the following
vehicles;
- LV / L538
- LC / L550
- LF / L359

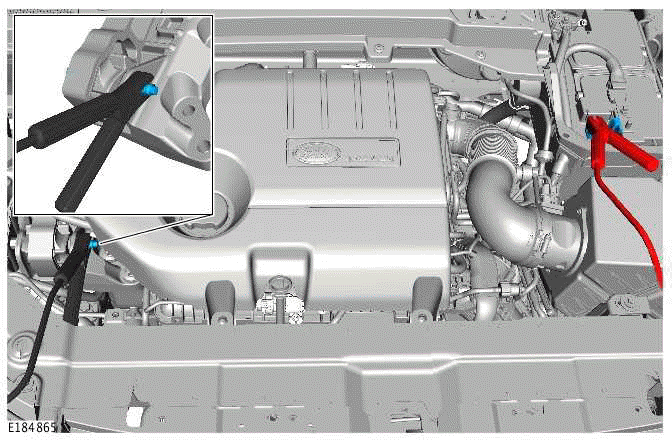

- Connect the battery support unit positive cable to the primary battery
positive terminal.
- Connect the battery support unit ground cable to the ground point, as
illustrated.
6.
WARNING:
Make sure that the cables are connected in the correct order.
CAUTION:
Do not connect the battery support unit ground cable directly to the battery
ground terminal. The
battery monitoring system (BMS) must be between the battery support unit ground
cable clamp
and the battery ground terminal.
NOTES:
- This Step contains connection instructions for the following
vehicles;
- Left hand drive shown, right hand drive is similar.

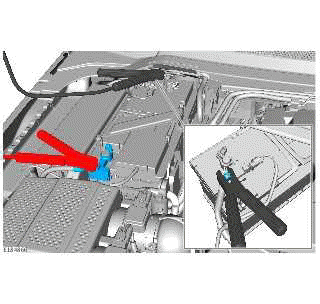

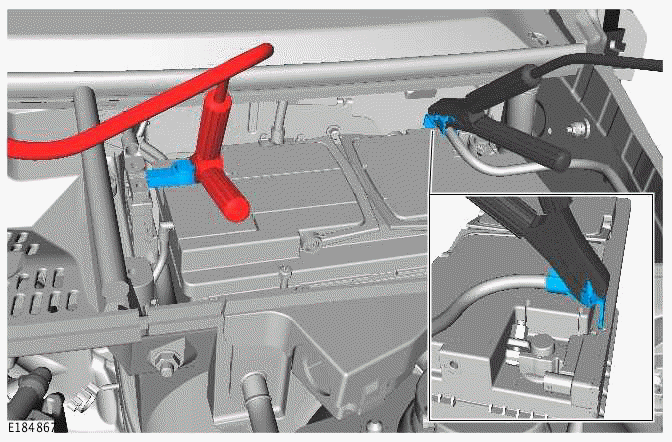

- Connect the battery support unit positive cable to the primary battery
positive terminal.
- Connect the battery support unit ground cable to the primary battery
ground cable, as illustrated.
7.
WARNING:
Make sure that the cables are connected in the correct order.
CAUTION:
Do not connect the battery support unit ground cable directly to the battery
ground terminal. The
battery monitoring system (BMS) must be between the battery support unit ground
cable clamp
and the battery ground terminal.
NOTES:
- This Step contains connection instructions for the following vehicle;
- Connect the battery support unit positive cable to the primary battery
positive terminal.
- Connect the battery support unit ground cable to the primary battery
ground cable, as illustrated.
8.
CAUTION:
The Midtronics CX-Pro 50 can only support one vehicle at a time. It should not
be used to support
2 vehicles at the same time.
NOTE:

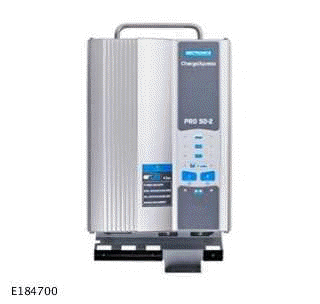

This Step contains operating instructions for the Midtronics CX-Pro 50 battery
support unit.
- Connect the vehicle link cable to port 1 on the base of the battery
support unit.
- NOTE:
Switch off any auxiliary systems, for example: headlamps, to reduce the
electrical load
on the battery support unit.
Switch the ignition ON, but do not start the engine.
9.
NOTE:
This Step contains operating instructions for the Midtronics CX-Pro 50 battery
support unit.
- NOTE:
A green light will confirm the battery support unit is switched ON
Switch ON the battery support unit.
- NOTE:
An orange light indicates that power is being supplied to the vehicle.

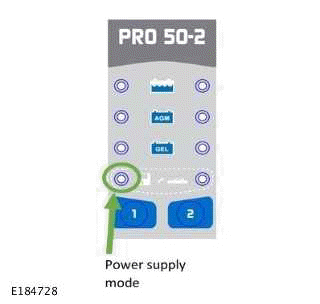

Use button 1 to select power supply mode.
- The battery support unit is now ready for a diagnostic session.
10.
CAUTION:
The Traction Showroom Support Unit (SSU2) must not be used during diagnostic
sessions. Only
the Traction Battery Support Unit (BSU) / (BSU2) can be used.
NOTE:
This Step contains operating instructions for the Traction BSU2-50 / 125 battery
support
unit.
- NOTE:
Switch off any auxiliary systems, for example: headlamps, to reduce the
electrical load
on the battery support unit.
Switch the ignition ON, but do not start the engine.
- NOTE:
Confirm that all 3 lights are illuminated green before starting a diagnostic
session.
Switch ON the battery support unit.
- The battery support unit is now ready for a diagnostic session.
11.
NOTE:

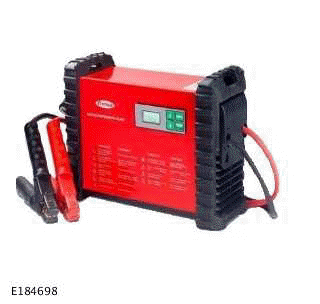

This Step contains operating instructions for the Fronius ACCTIVA Professional
Flash
battery support unit.
- NOTE:
Switch off any auxiliary systems, for example: headlamps, to reduce the
electrical load
on the battery support unit.
Switch the ignition ON, but do not start the engine.
- NOTE:
The unit will indicate on screen that it is supplying current.
Switch ON the battery support unit and select external power supply mode
(FSV / SPLY).
- The battery support unit is now ready for a diagnostic session.
12.
NOTE:
This Step contains operating instructions for the Traction MPL-50 battery
support unit.
- CAUTIONS: The battery support unit must NOT be connected to an power
supply at
this stage.
Charging mode must not be selected.
Select battery support mode.

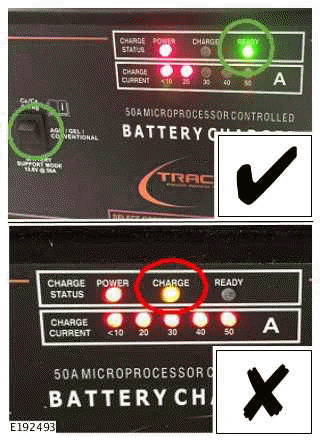

- NOTES: If the orange CHARGE lamp is illuminated for more than a few
seconds;
disconnect the battery support unit from the power
supply
disconnect the cables from the vehicle
make sure the battery support mode is selected
reconnect the cables to the vehicle
reconnect the battery support unit to the power
supply and confirm the green READY lamp is
illuminated.
Connect the battery support unit to the power supply, the green READY
lamp should now be
illuminated.
- The battery support unit is now ready for a diagnostic session.
13.
CAUTION:
The Midtronics PSC 700S is only to be used in markets with 120V power supply.
NOTE:

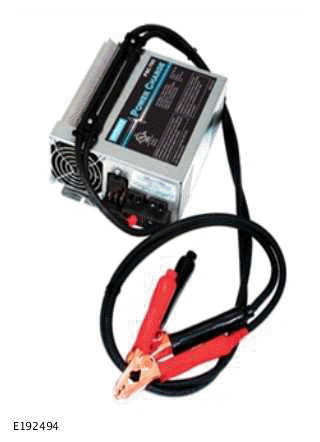

This Step contains operating instructions for the Midtronics PSC 700S battery
support unit.
- Connect the battery support unit to the power supply and switch the
battery support unit ON.
- The battery support unit is now ready for a diagnostic session.
