Land Rover Defender: Control Diagram

Land Rover Defender 2020-2024 Service Manual / Body and Paint / Supplementary Restraint System / Airbag and Safety Belt Pretensioner Supplemental Restraint System - [+] Vehicles With 2ND / 3RD Row Seats / Control Diagram

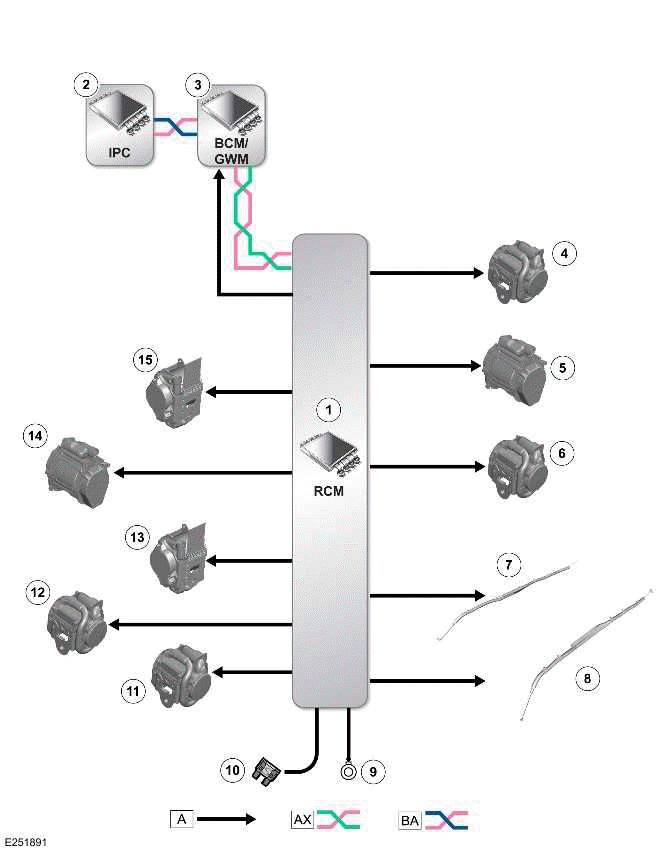

CONTROL DIAGRAM - 1 OF 2 - NORTH AMERICAN SPECIFICATION VEHICLES

Airbag and Safety Belt Pretensioner Supplemental Restraint System

A = HARDWIRED: AX = FLEXRAY: BA = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) HUMAN MACHINE INTERFACE (HMI) SYSTEM BUS.

  1. RCM
  2. IPC
  3. BCM/ GWM
  4. Second row seatbelt retractor pretensioner - Right
  5. Second row seatbelt retractor pretensioner - Center
  6. Second row seatbelt retractor pretensioner - Left
  7. Side air curtain - Right
  8. Side air curtain - Left
  9. Ground
  10. Power supply
  11. Third row seatbelt retractor pretensioner - Right
  12. Third row seatbelt retractor pretensioner - Left
  13. Front row seatbelt retractor pretensioner - Right
  14. Front row seatbelt retractor pretensioner - Center
  15. Front row seatbelt retractor pretensioner - Left

CONTROL DIAGRAM - 2 OF 2 - ALL MARKET EXCEPT NORTH AMERICAN SPECIFICATION VEHICLES

Airbag and Safety Belt Pretensioner Supplemental Restraint System

A = HARDWIRED: AX = FLEXRAY: BA = HS CAN HMI SYSTEM BUS.

  1. RCM
  2. IPC
  3. BCM/ GWM
  4. Second row seatbelt retractor pretensioner - Right
  5. Second row seatbelt retractor pretensioner - Center
  6. Second row seatbelt retractor pretensioner - Left
  7. Side air curtain - Right
  8. Side air curtain - Left
  9. Ground
  10. Power supply
  11. Third row seatbelt retractor pretensioner - Right
  12. Third row seatbelt retractor pretensioner - Left
  13. Front row seatbelt retractor pretensioner - Right
  14. Front row seatbelt retractor pretensioner - Center
  15. Front row seatbelt retractor pretensioner - Left
